Diagram Set SD861 (Front Wiper Deicer)
Diagram Set SD861 (Front Wiper Deicer)

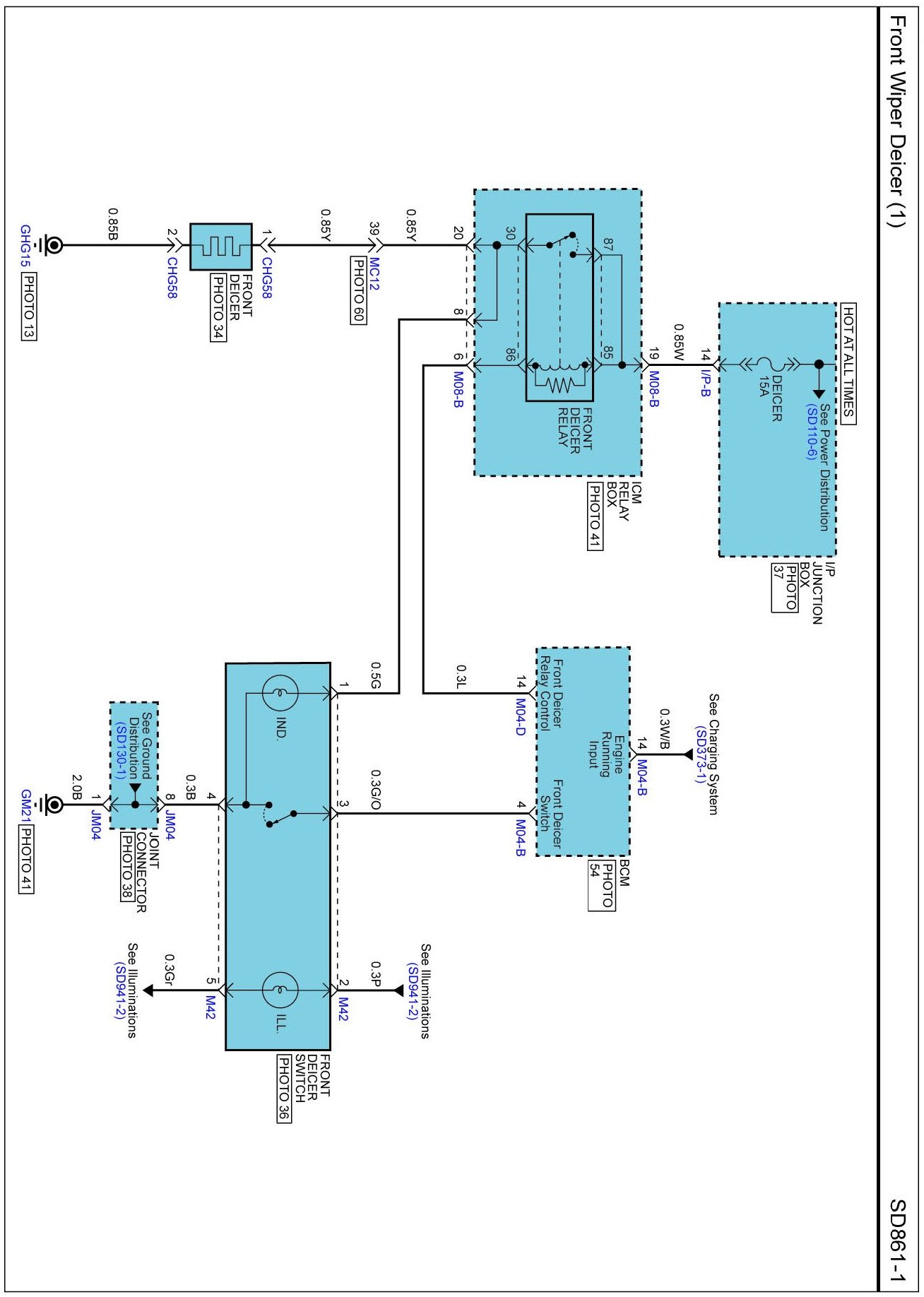

SD861-1 Front Wiper Diecer (1):
