Antilock Brakes / Traction Control Systems
>>
System Diagram
>>
ABS(Anti-Lock Brake System)
>>
Schematic Diagrams
Schematic Diagrams

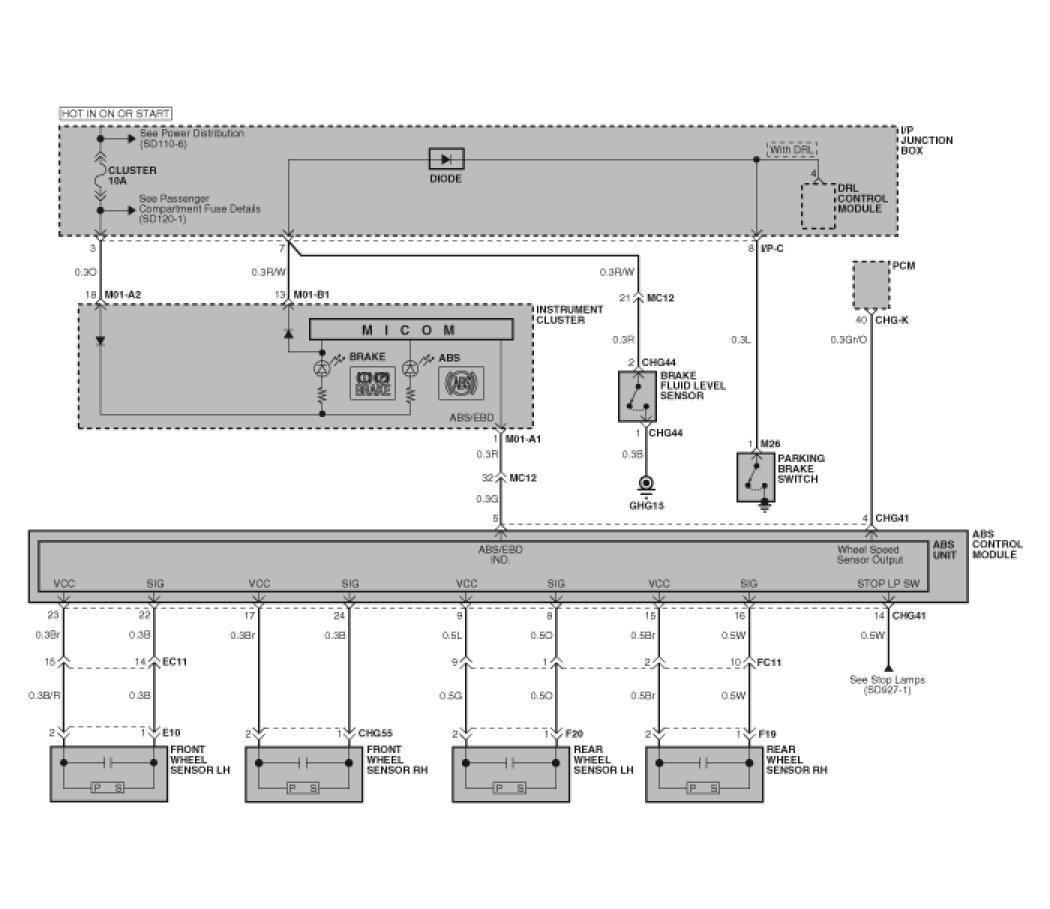

Circuit Diagram - ABS(1)
Circuit Diagram - ABS(2)
