Home
>>
Kia
>>
2008
>>
Rondo V6-2.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Disc Brake System
>>
Front Disc Brake
Front Disc Brake

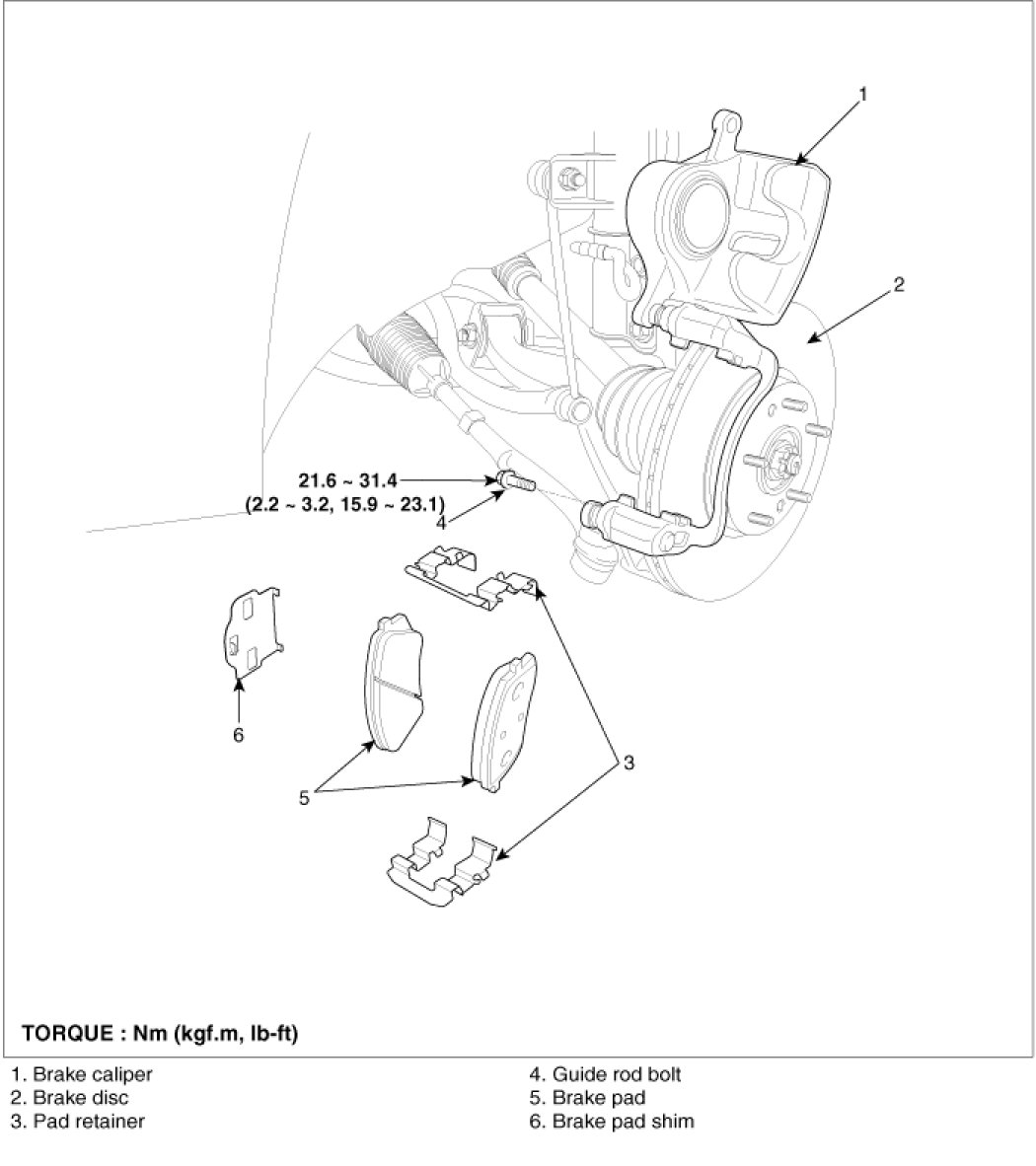

COMPONENTS(1)

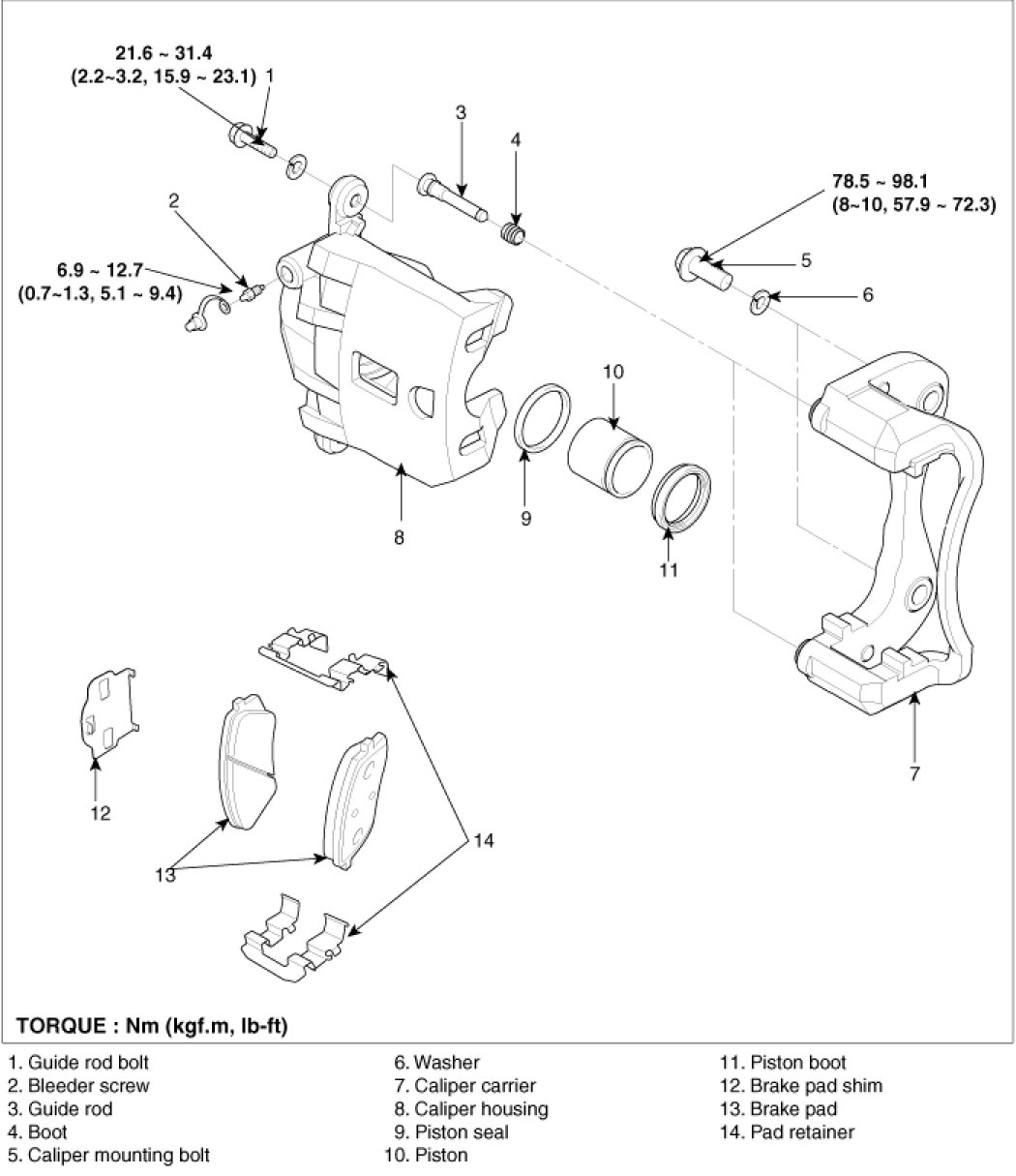

COMPONENTS(2)
