Home >> Kia >> 2008 >> Optima L4-2.4L >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Testing and Inspection

Automatic Transmission/Transaxle: Testing and Inspection

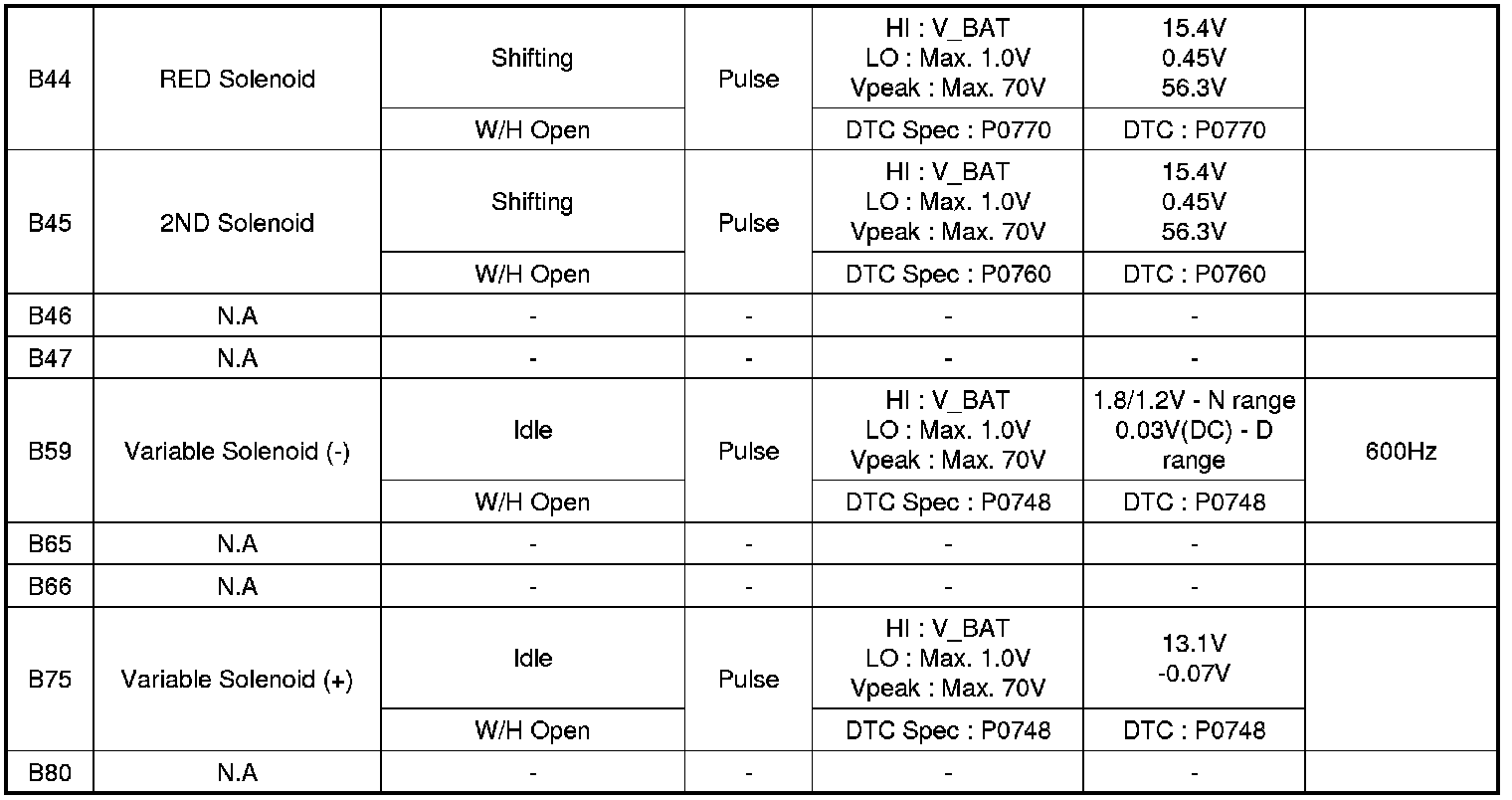

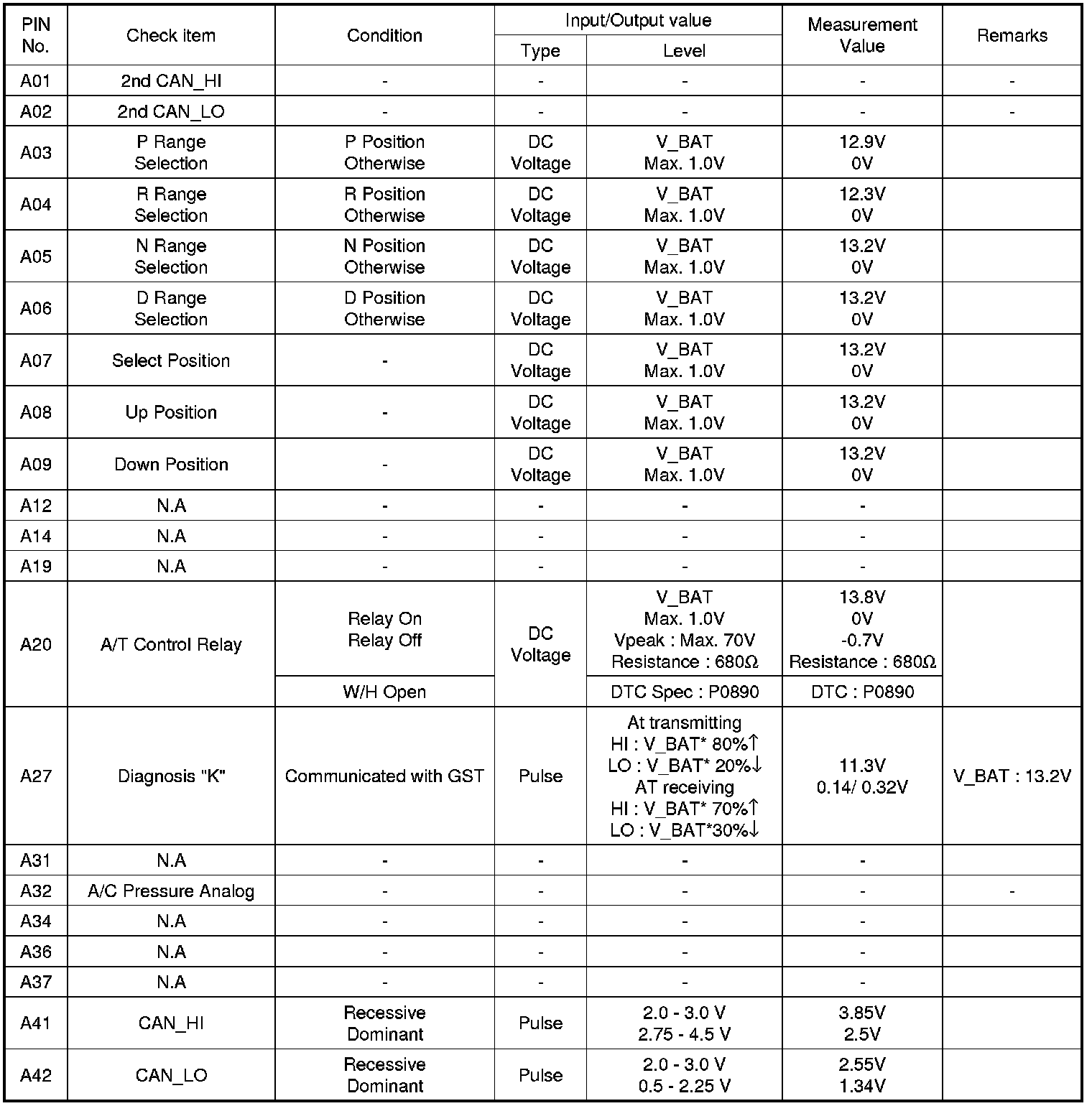

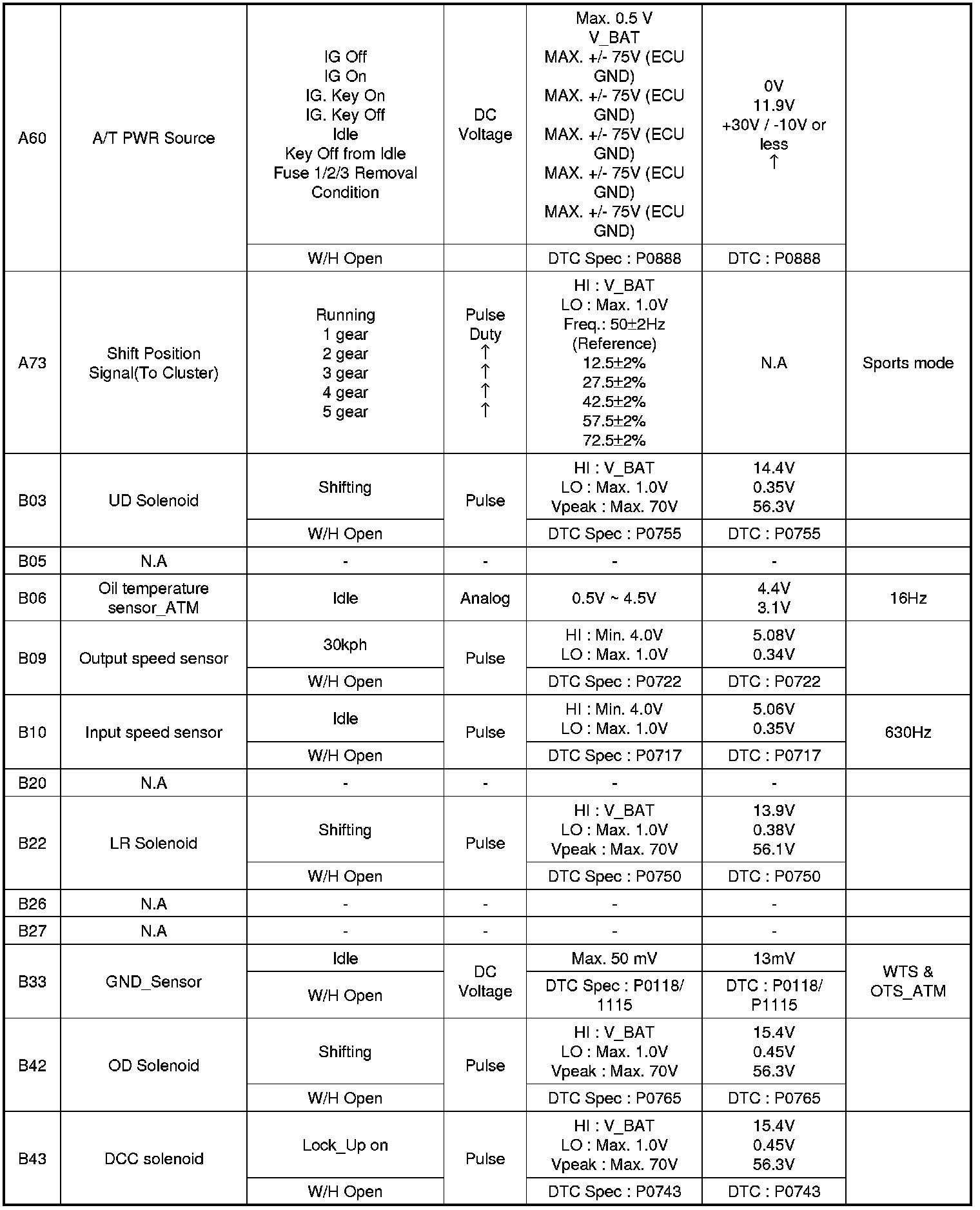

INPUT/OUTPUT SIGNAL VOLTAGE CHECK SHEET
