Power Window Switch
CIRCUIT DIAGRAM

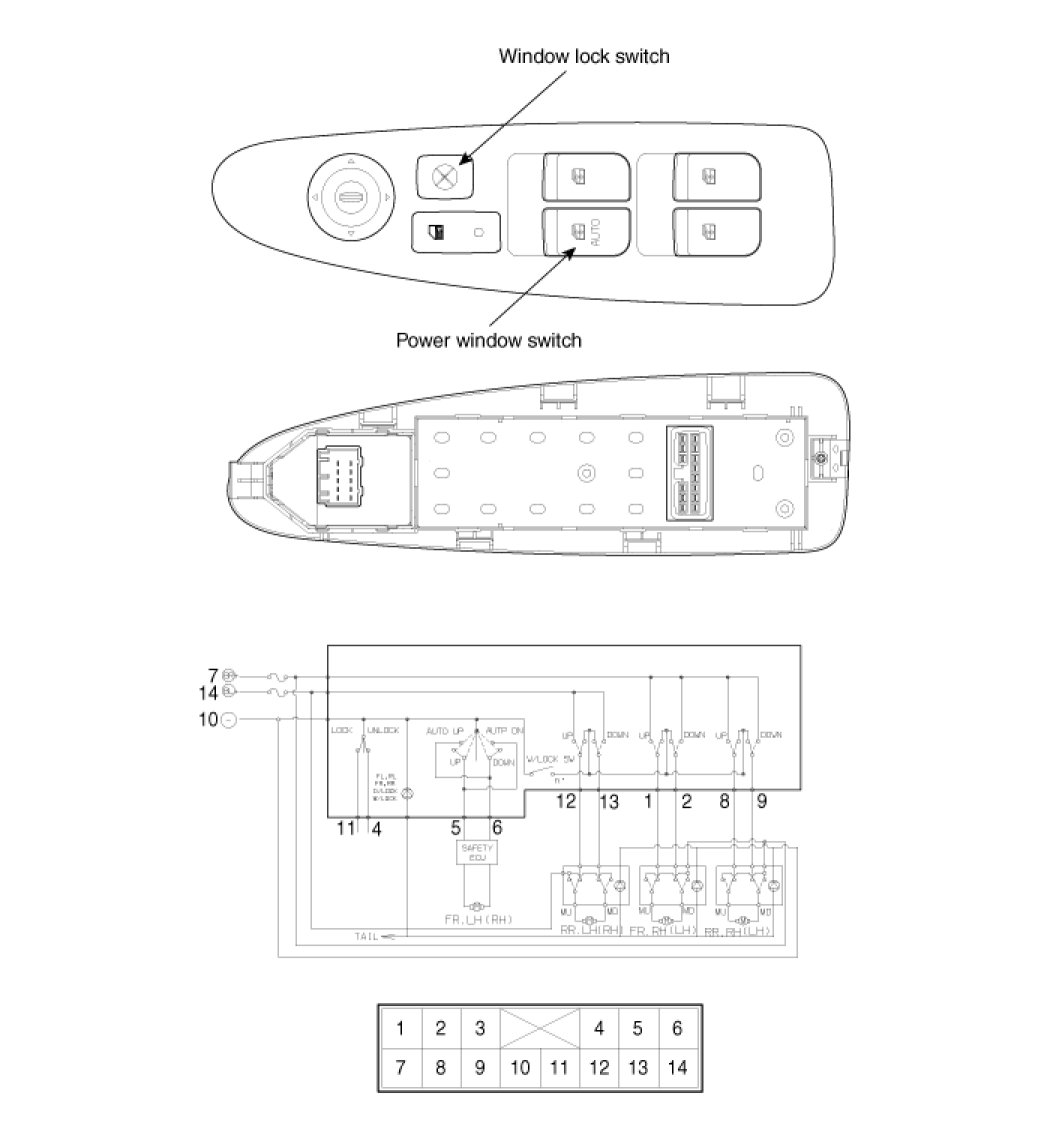

DRIVER
POWER WINDOW SWITCH
ASSIST
POWER WINDOW SWITCH

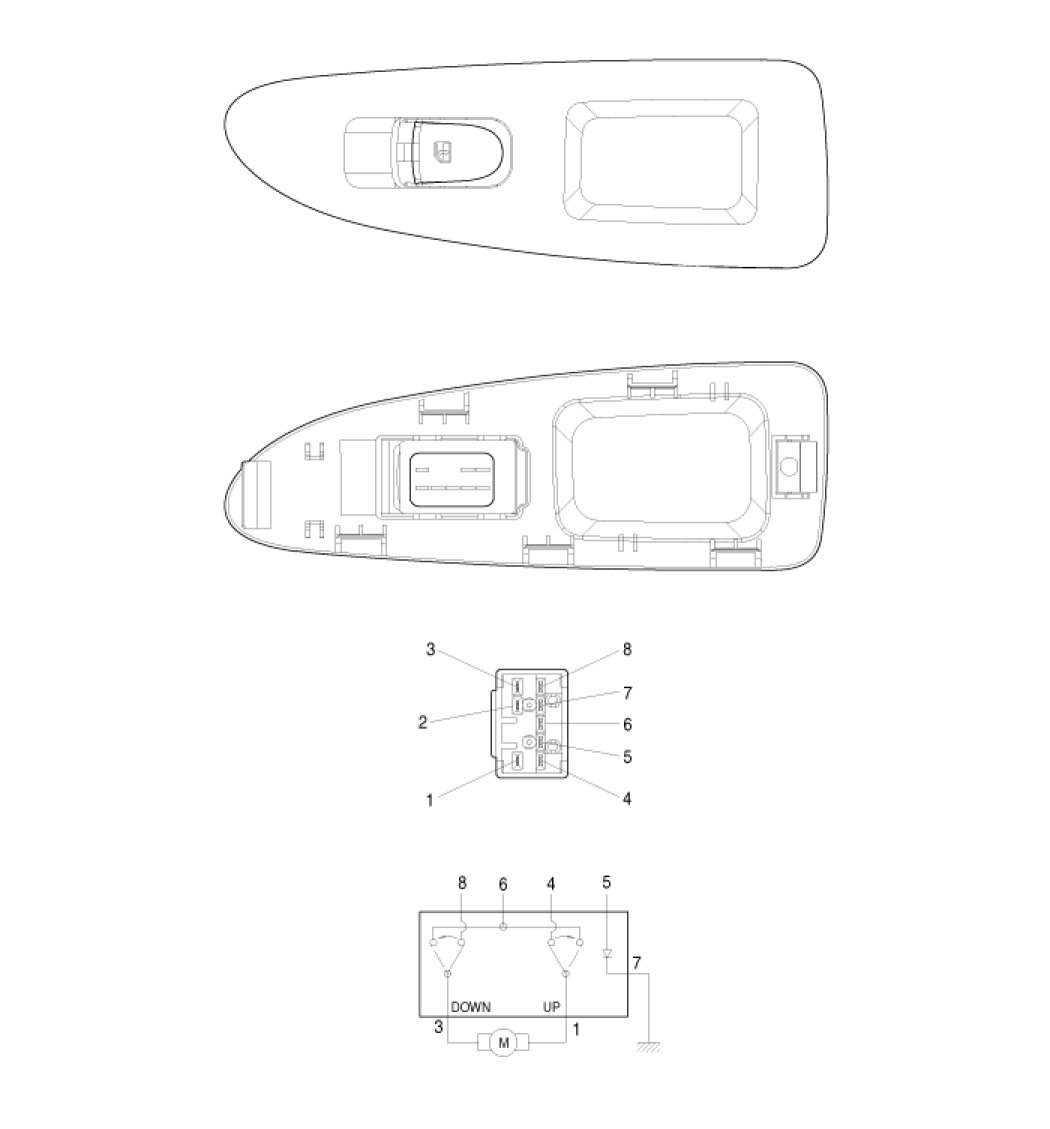

REAR
POWER WINDOW SWITCH
