Tire Monitoring System
>>
Circuit Diagram
Circuit Diagram

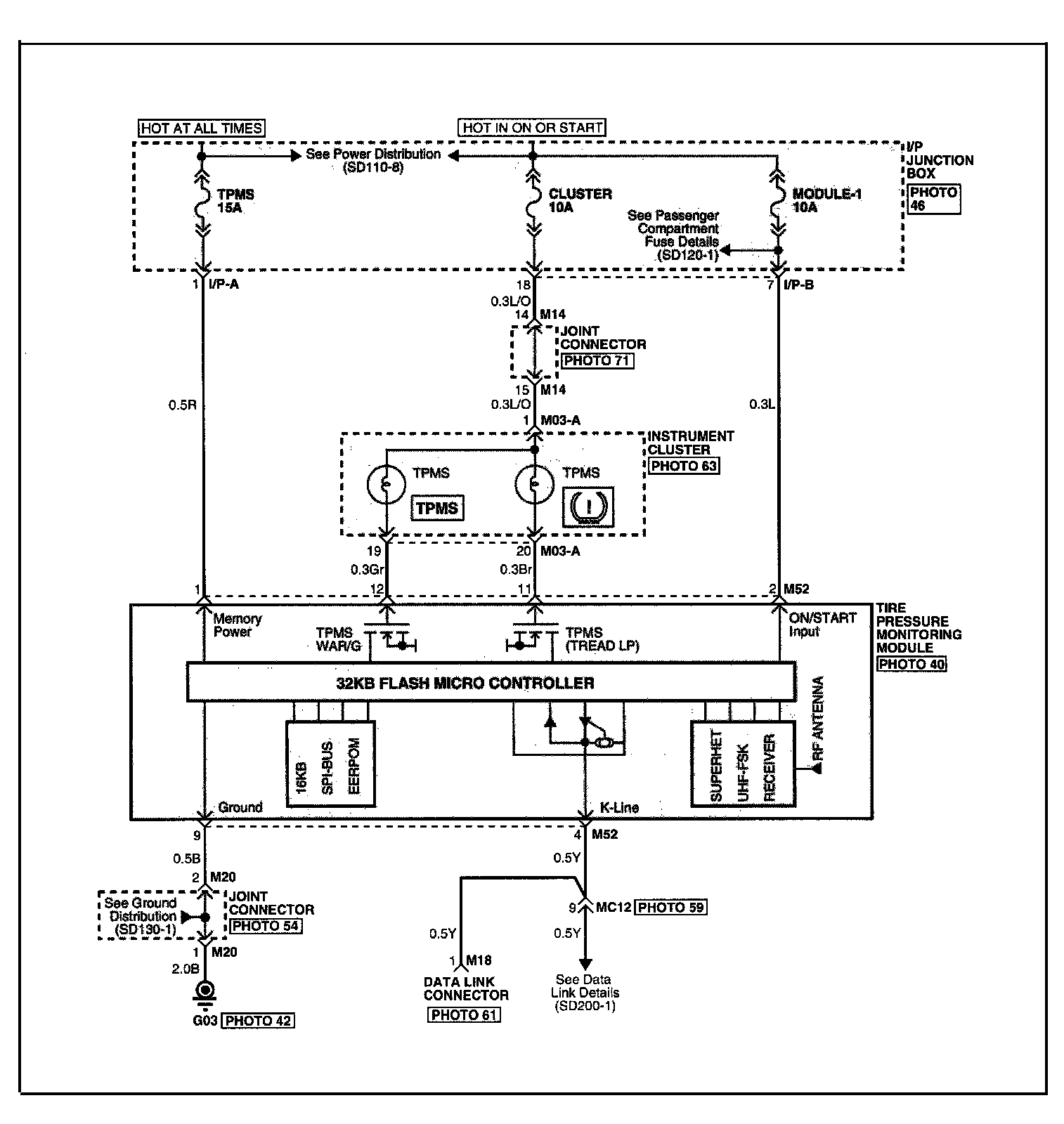

TPMS (TIRE PRESSURE MONITORING SYSTEM)
Circuit Diagram:
