Restraints and Safety Systems
>>
Diagrams
>>
Connector Views
Connector Views

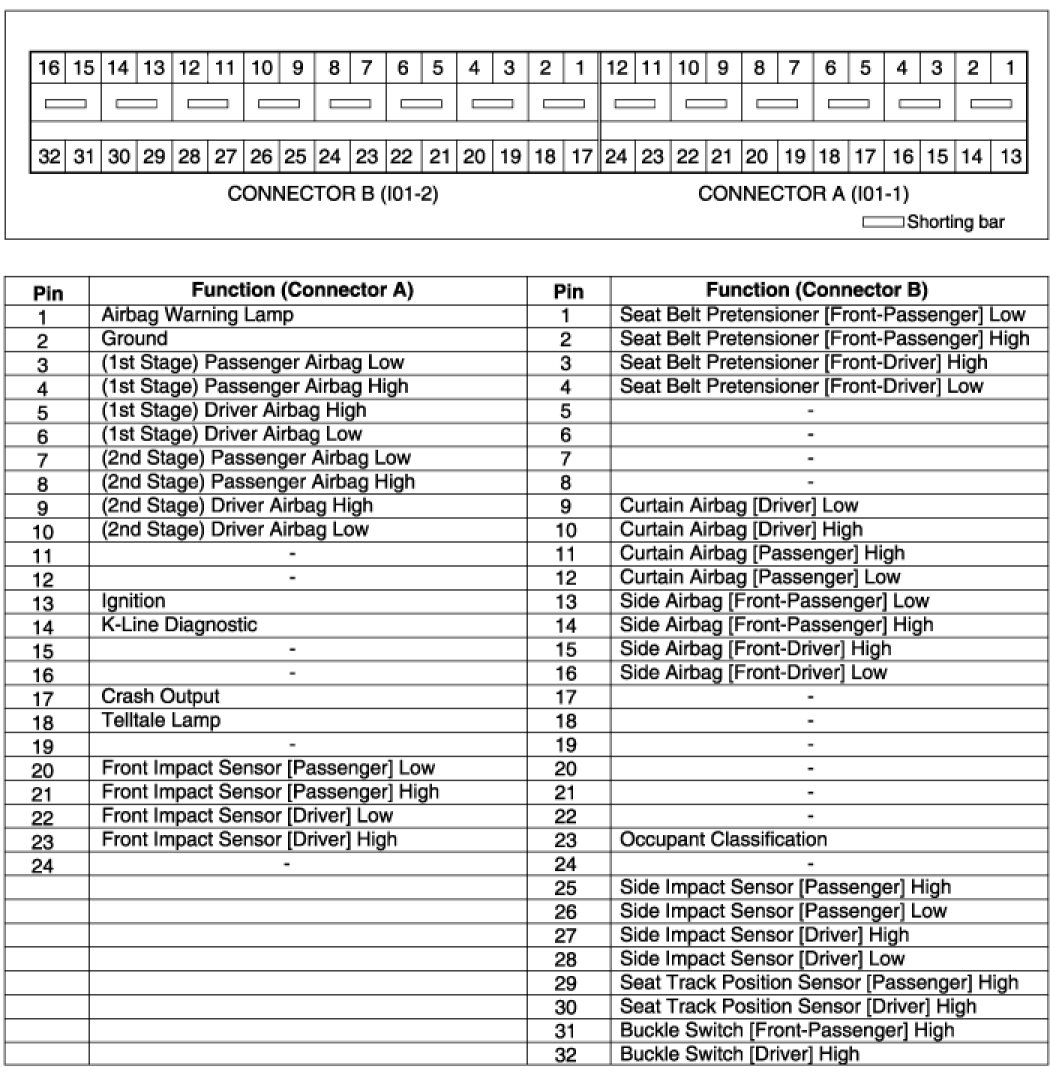

SRSCM CONNECTOR TERMINAL
SRSCM HARNESS CONNECTOR

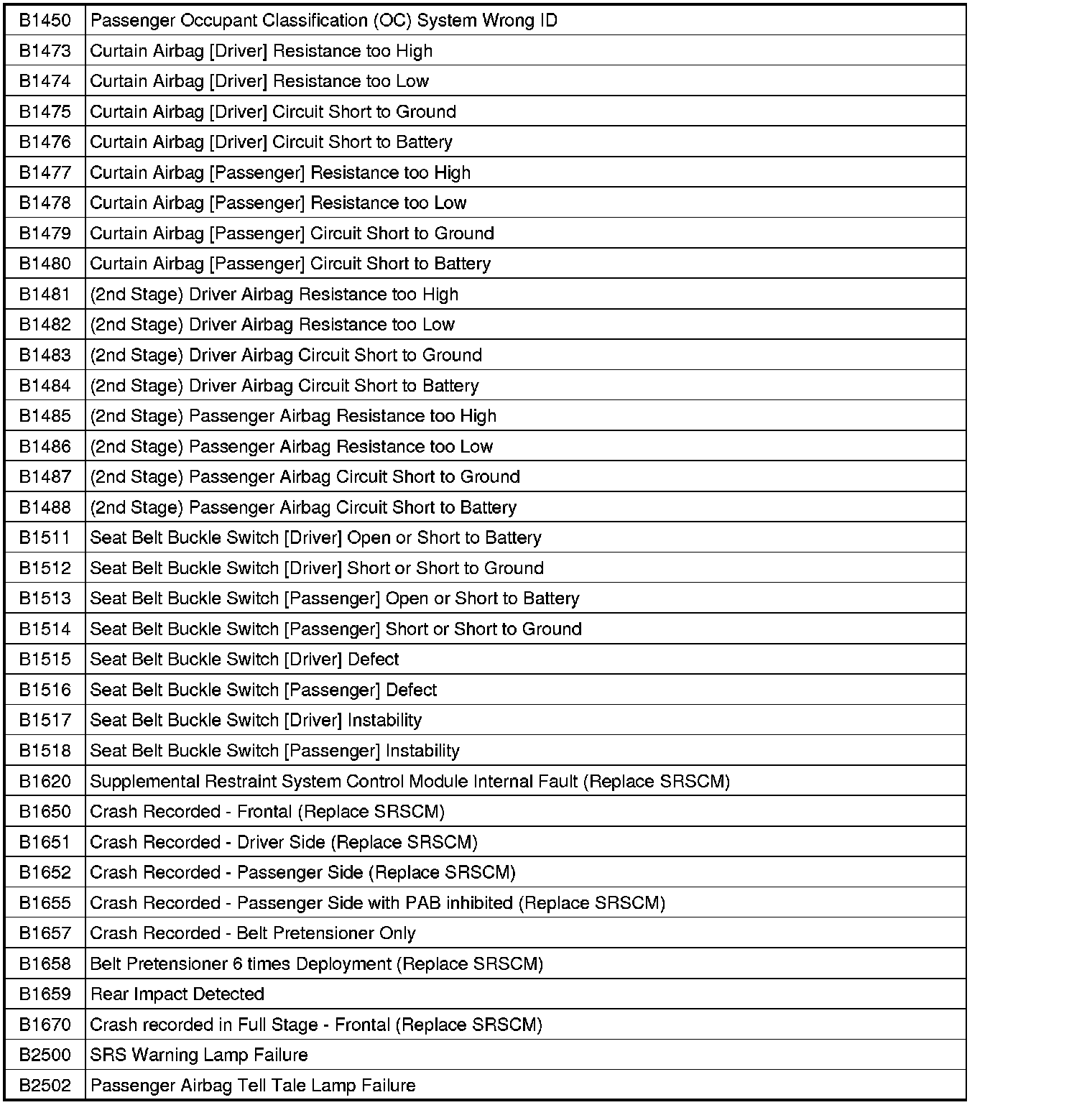

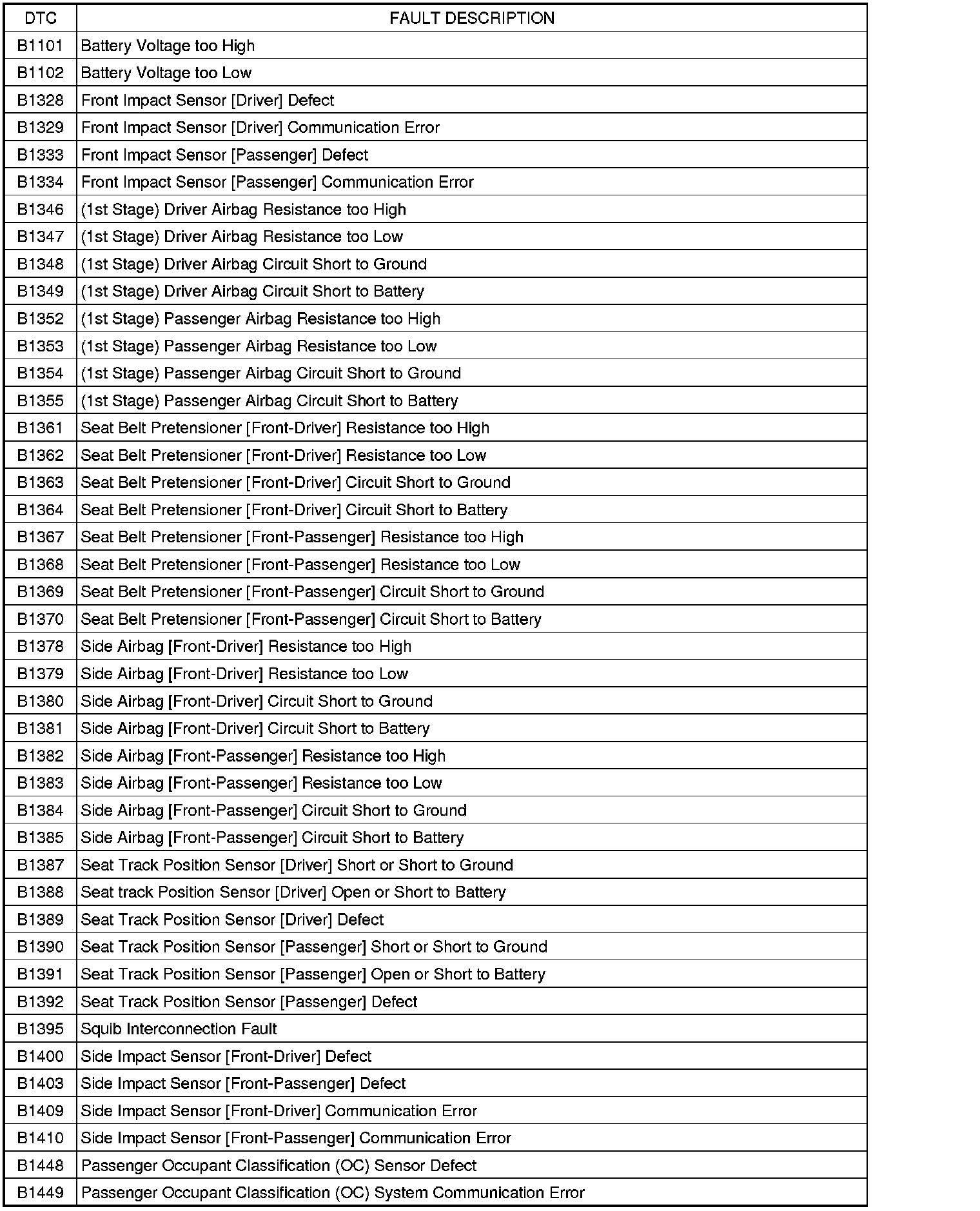

DIAGNOSTIC TROUBLE CODES (DTC)
