Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Kia
>>
2007
>>
Optima V6-2.7L VIN 4
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Automatic Transmission/Transaxle
Automatic Transmission/Transaxle

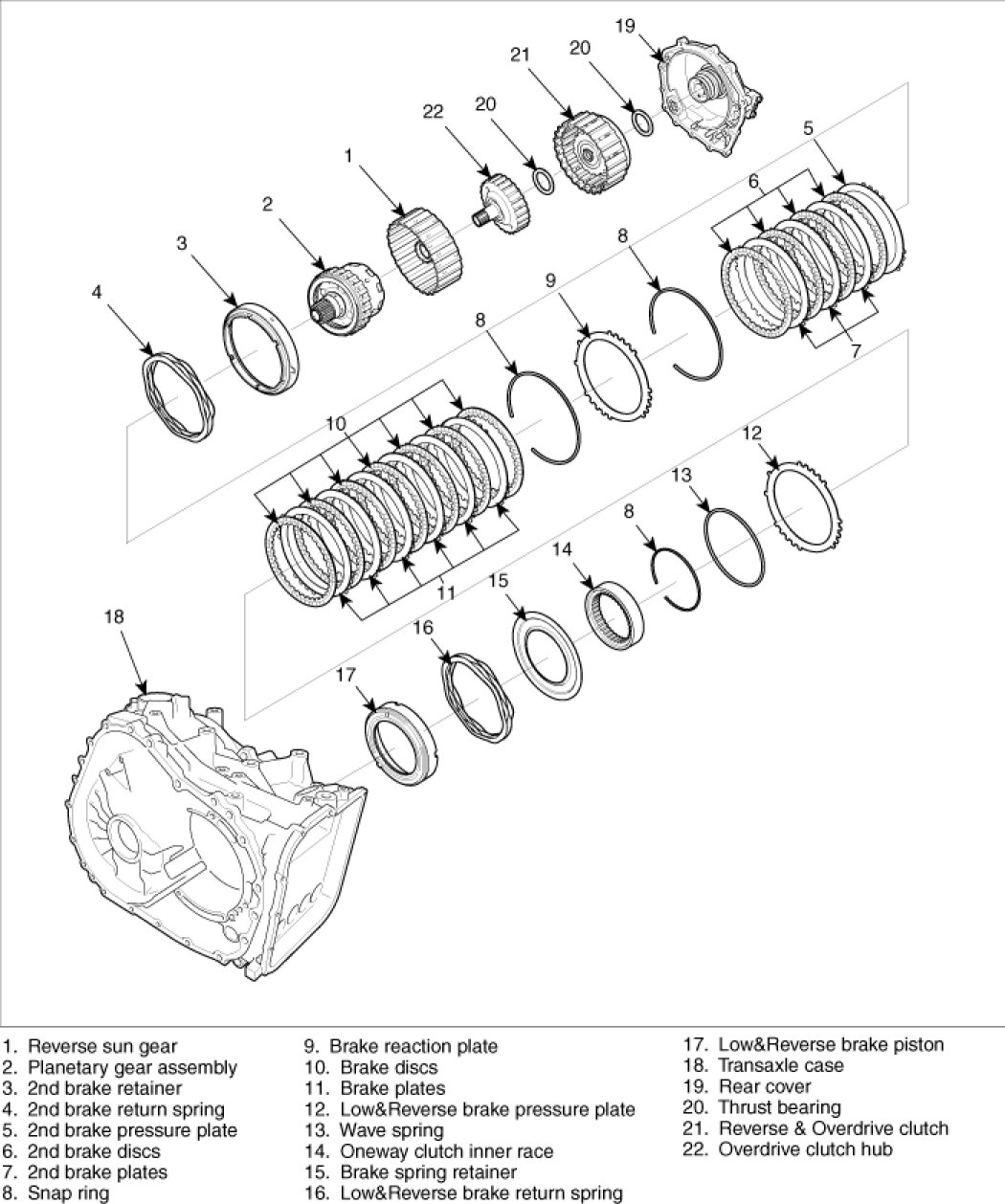

COMPONENTS (1)

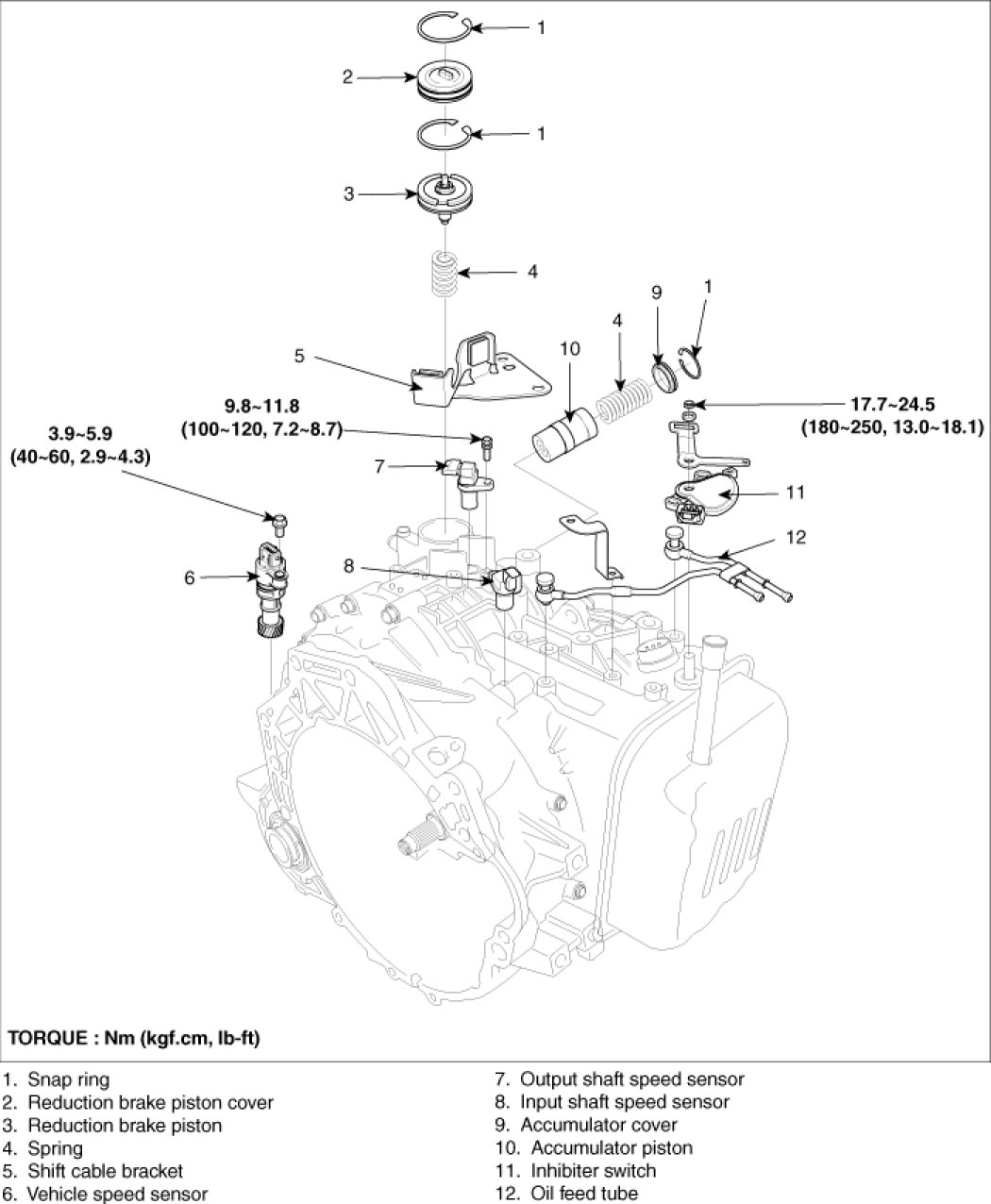

COMPONENTS (2)

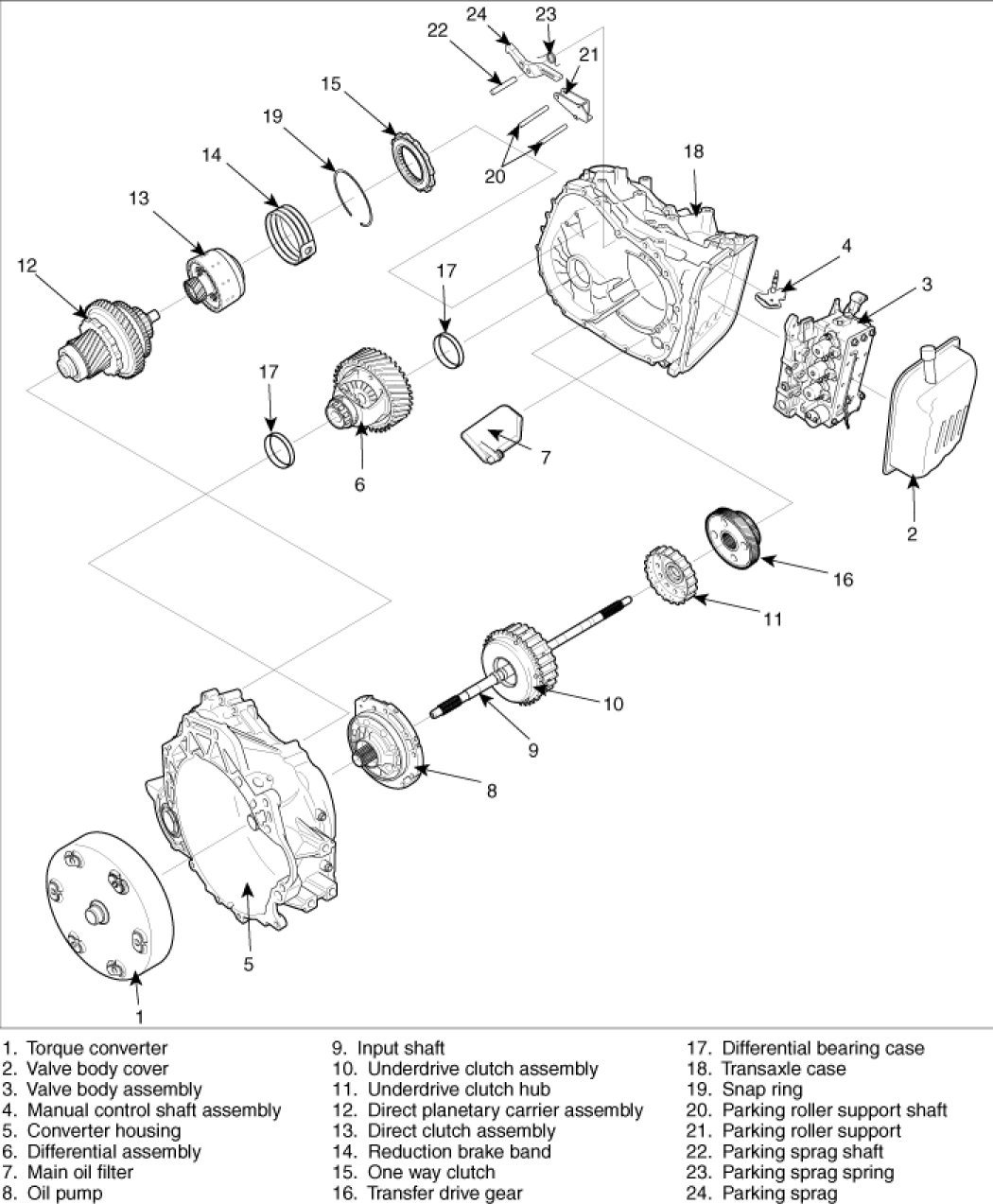

COMPONENTS (3)
