Home >> Kia >> 2007 >> Magentis (CANADA) V6-2.7L >> Repair and Diagnosis >> Heating and Air Conditioning >> Control Assembly >> Testing and Inspection >> Pinout Values and Diagnostic Parameters >> Automatic A/C

Automatic A/C




COMPONENT

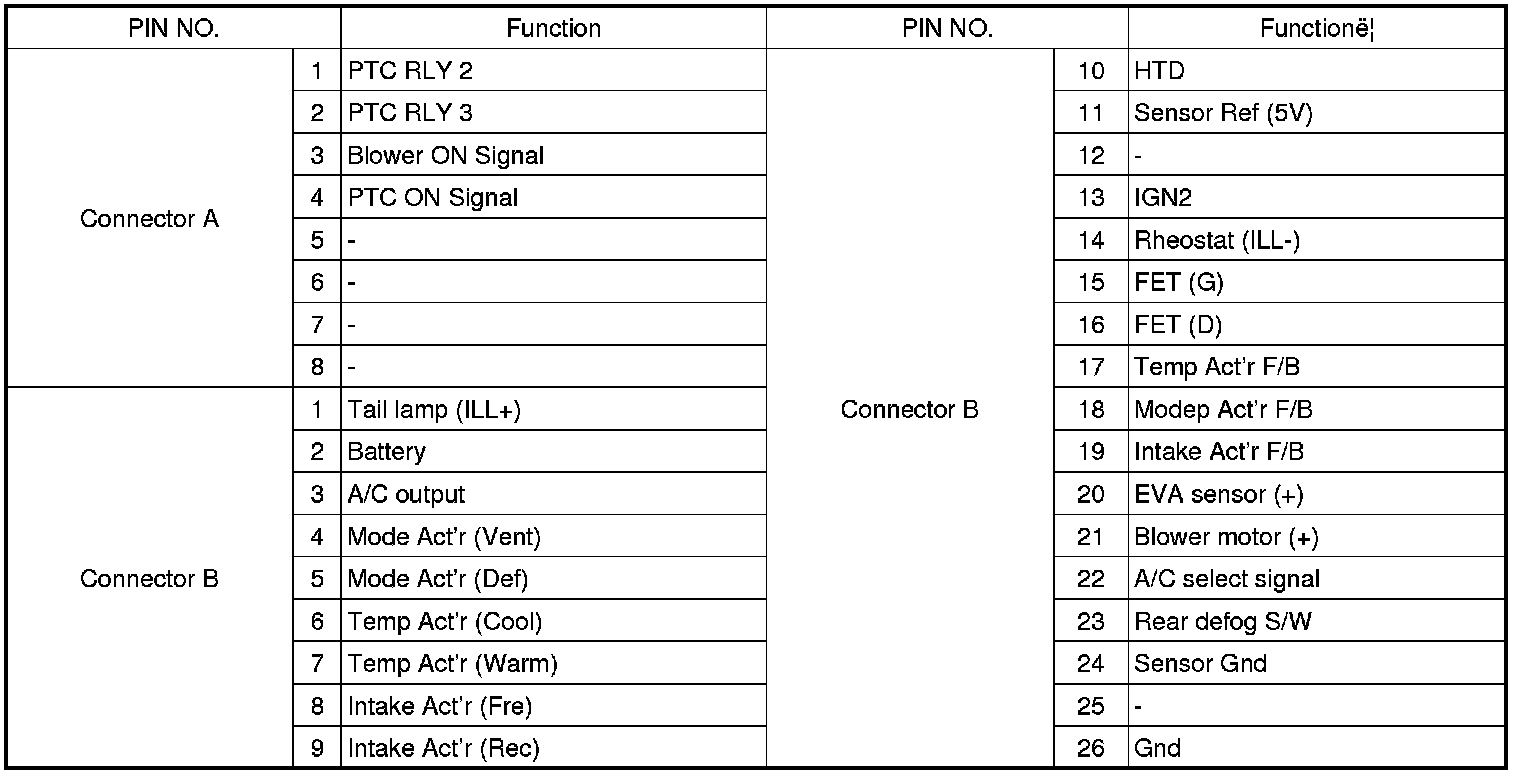

CONNECTOR PIN FUNCTION
