Automatic Transmission/Transaxle
Automatic Transmission/Transaxle
AUTOMATIC TRANSAXLE

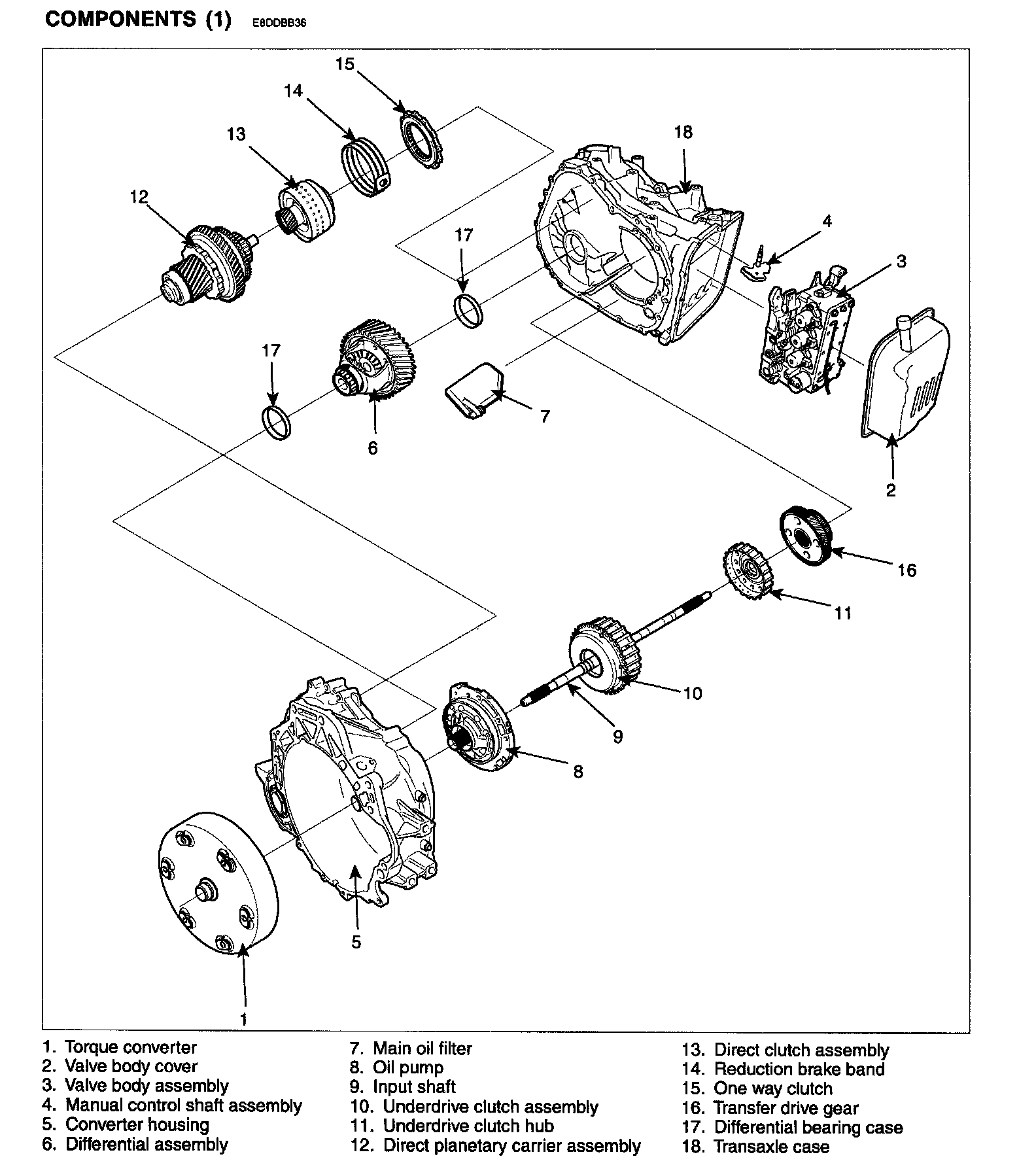

COMPONENTS (1):

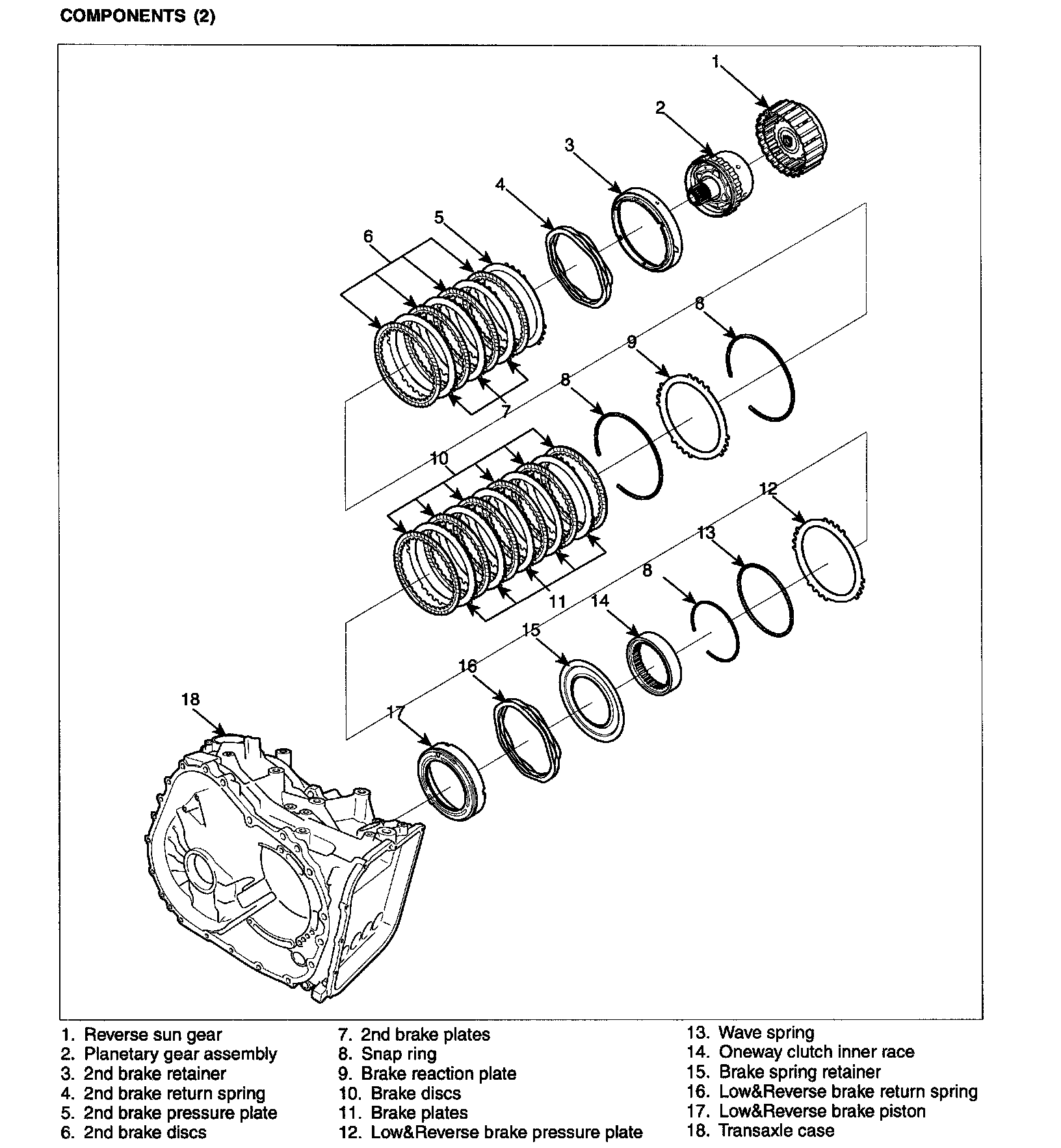

COMPONENTS (2):
