Heating and Air Conditioning: Specifications

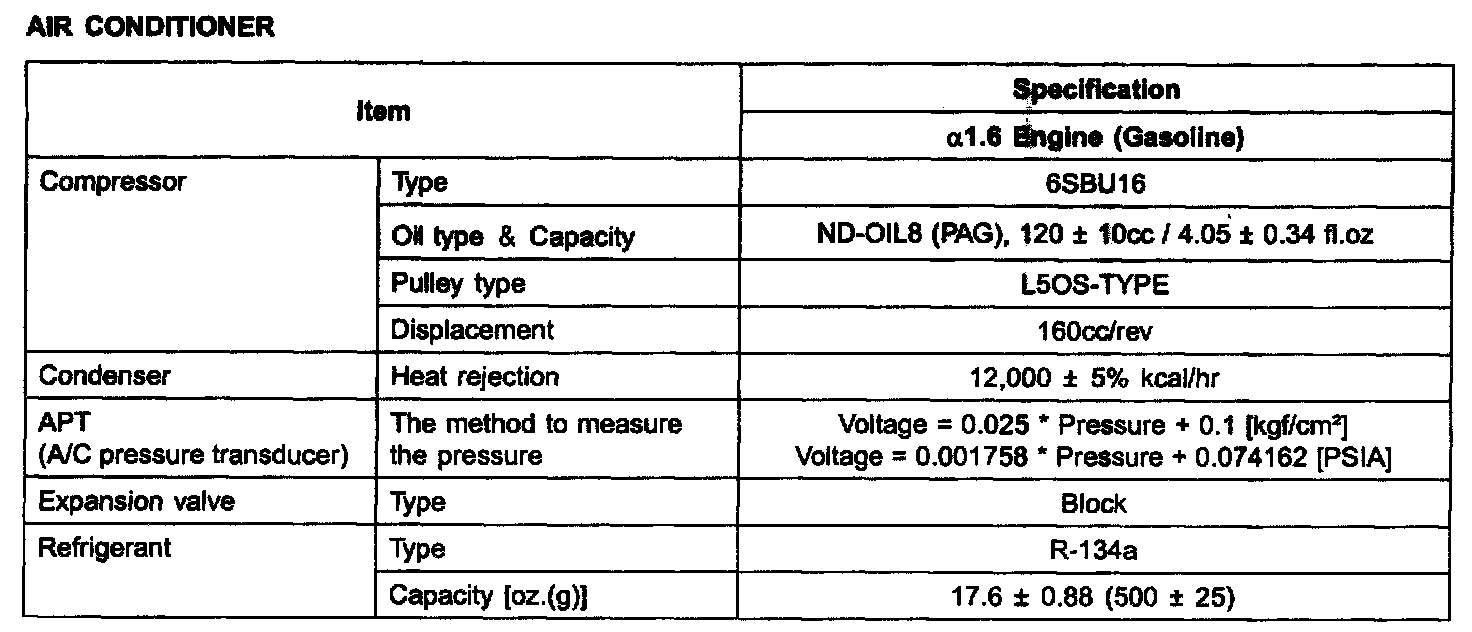

Air Conditioner Specification:

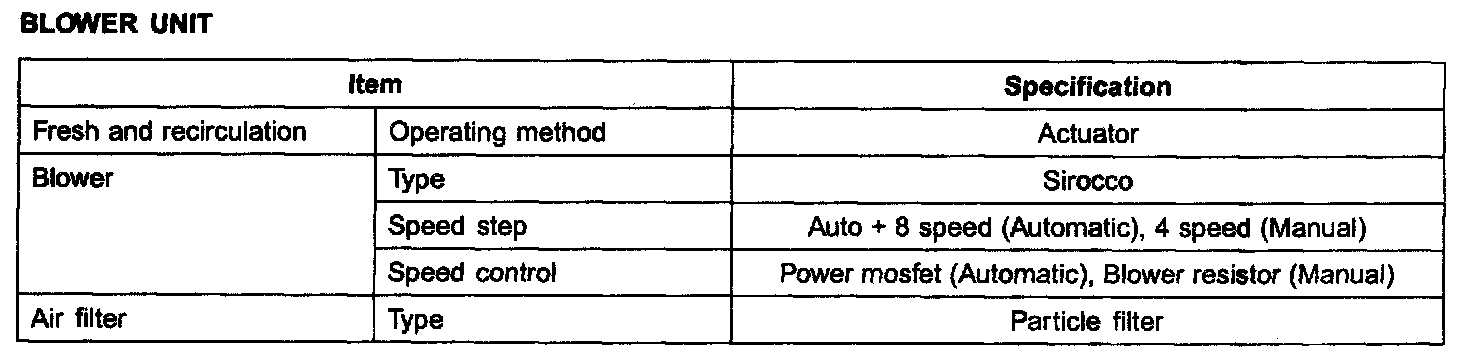

Blower Unit:

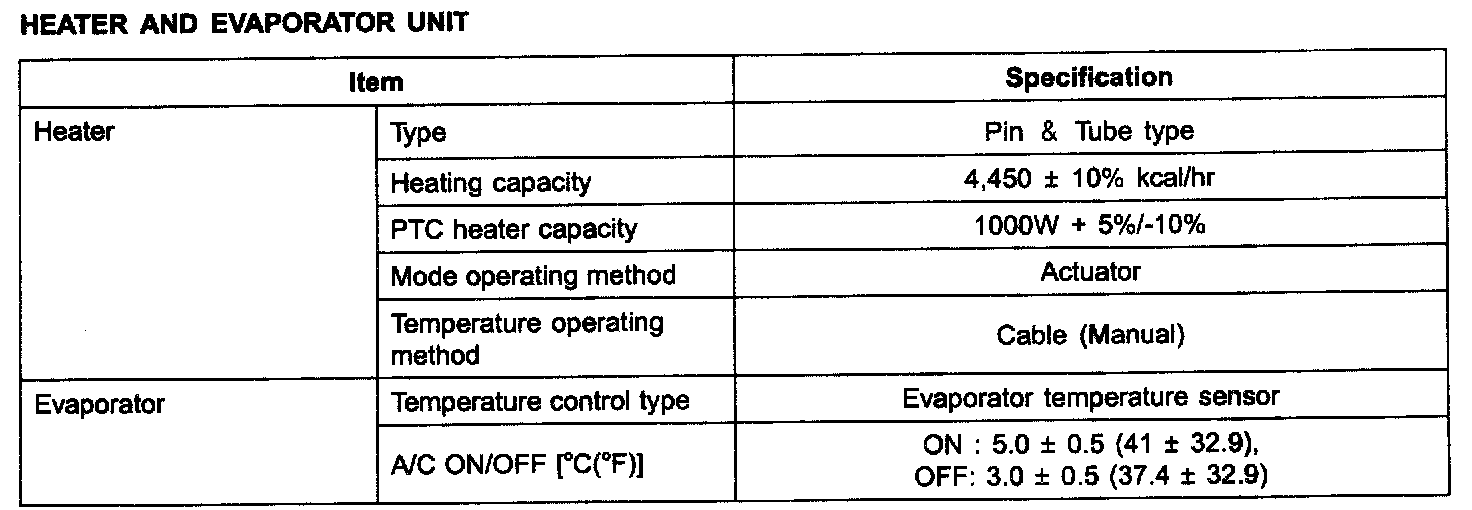

Heater And Evaporator Unit:
