Home
>>
Kia
>>
2006
>>
Amanti V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Electronic Brake Control Module
>>
Electronic Stability Program (ESP) System
Electronic Stability Program (ESP) System
ESP CONTROL UNIT (HECU)

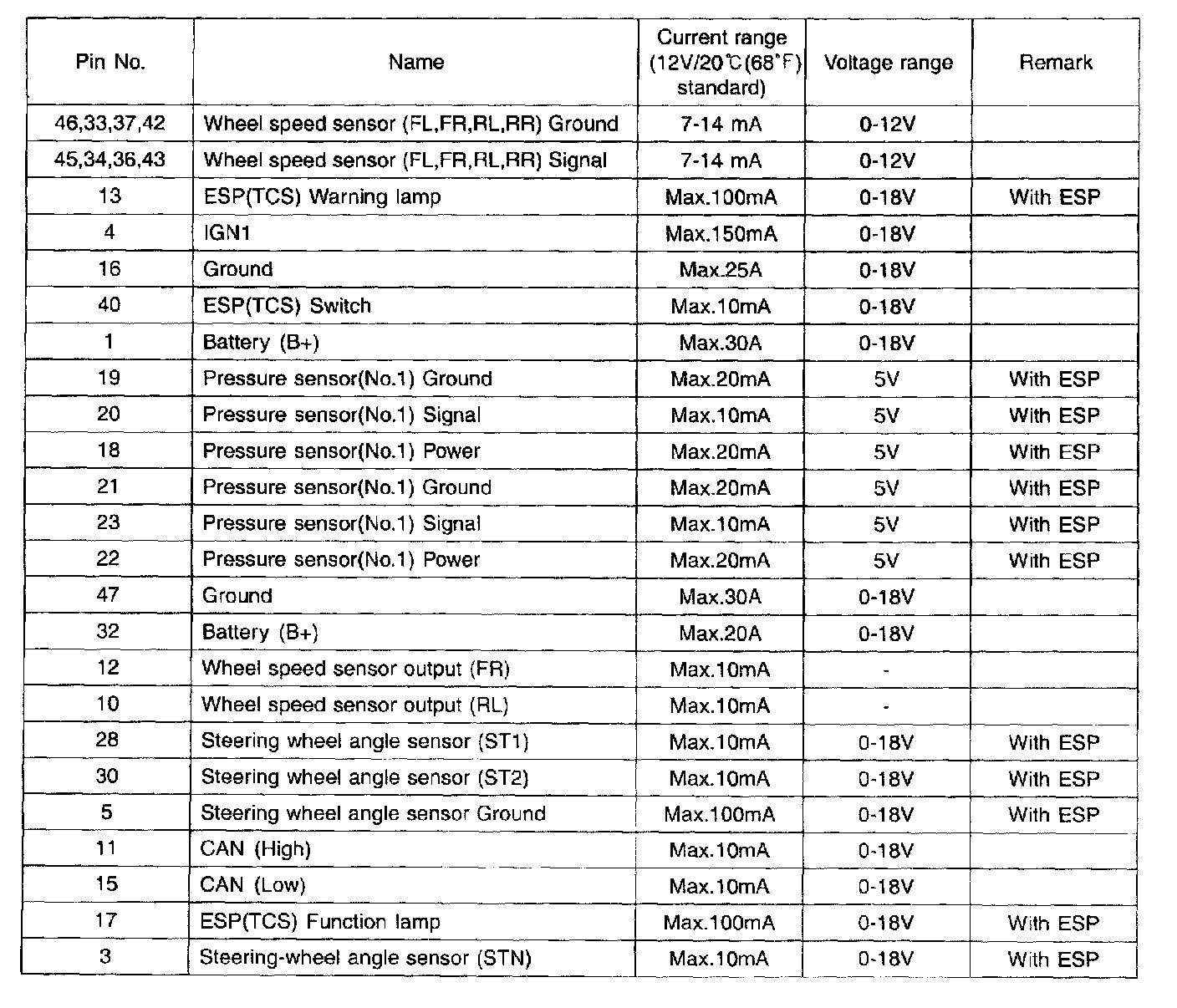

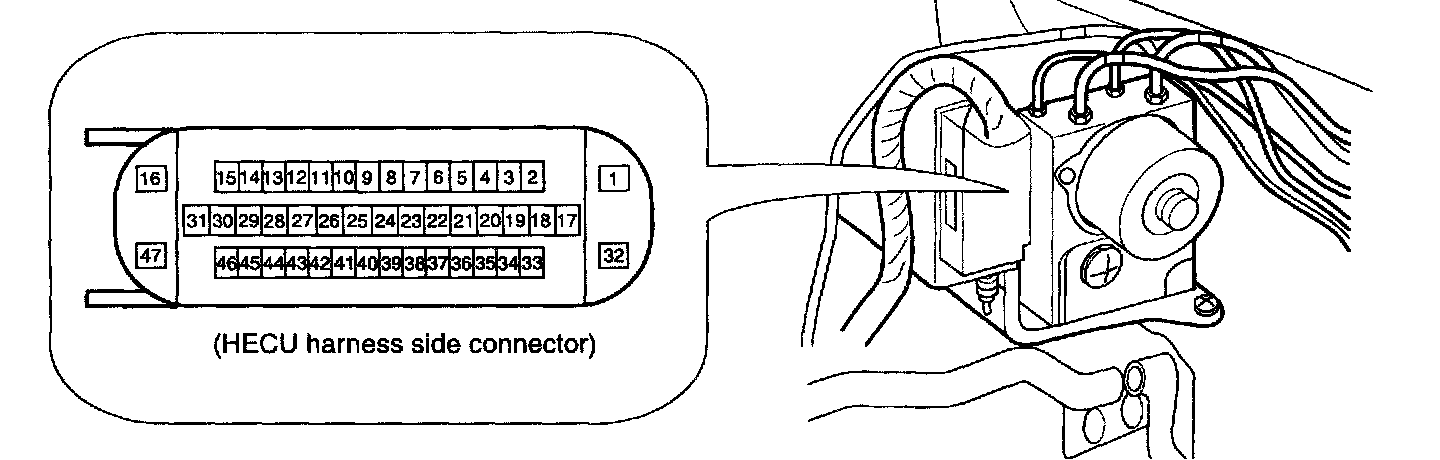

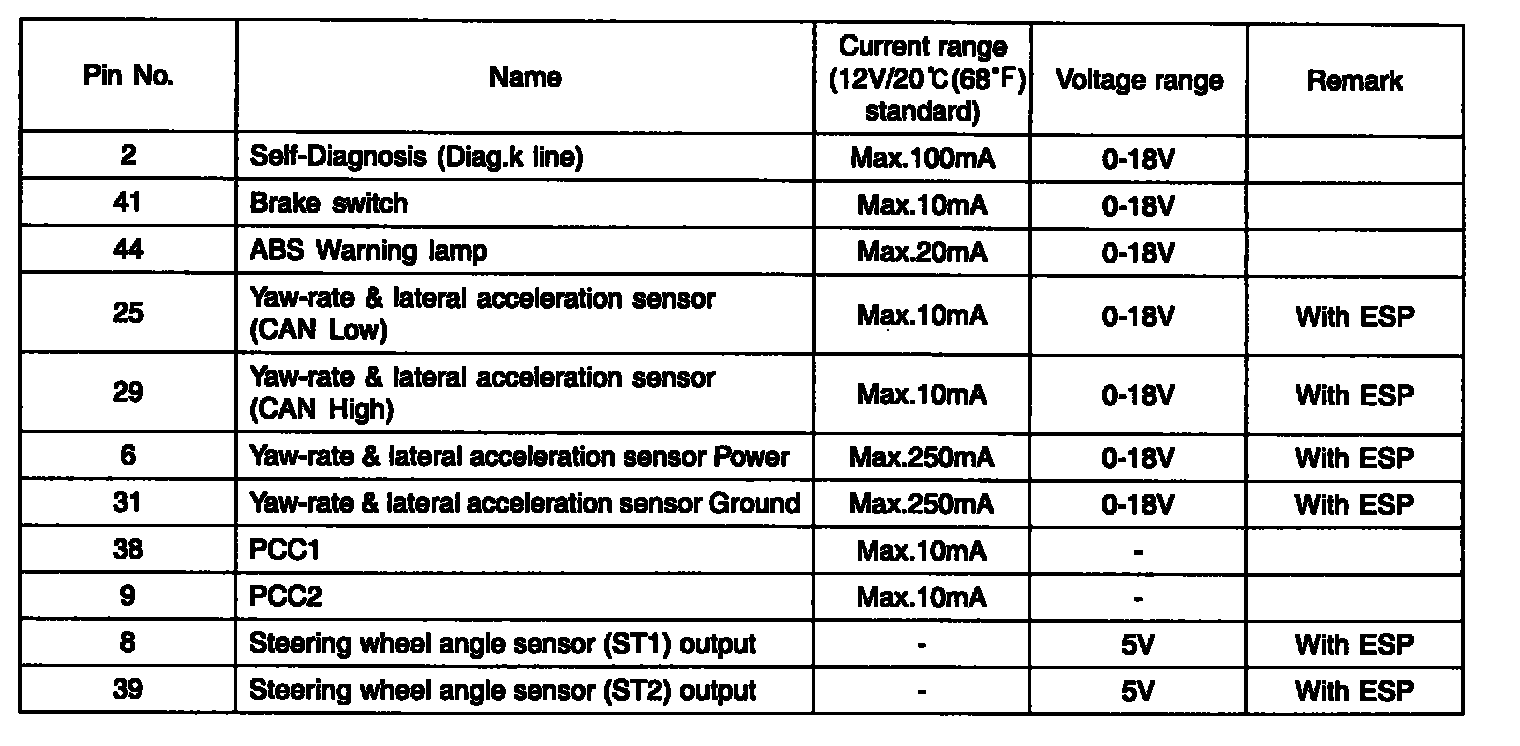

HECU CONNECTOR INSPECTION
