Kia
>>
2005
>>
Spectra L4-2.0L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

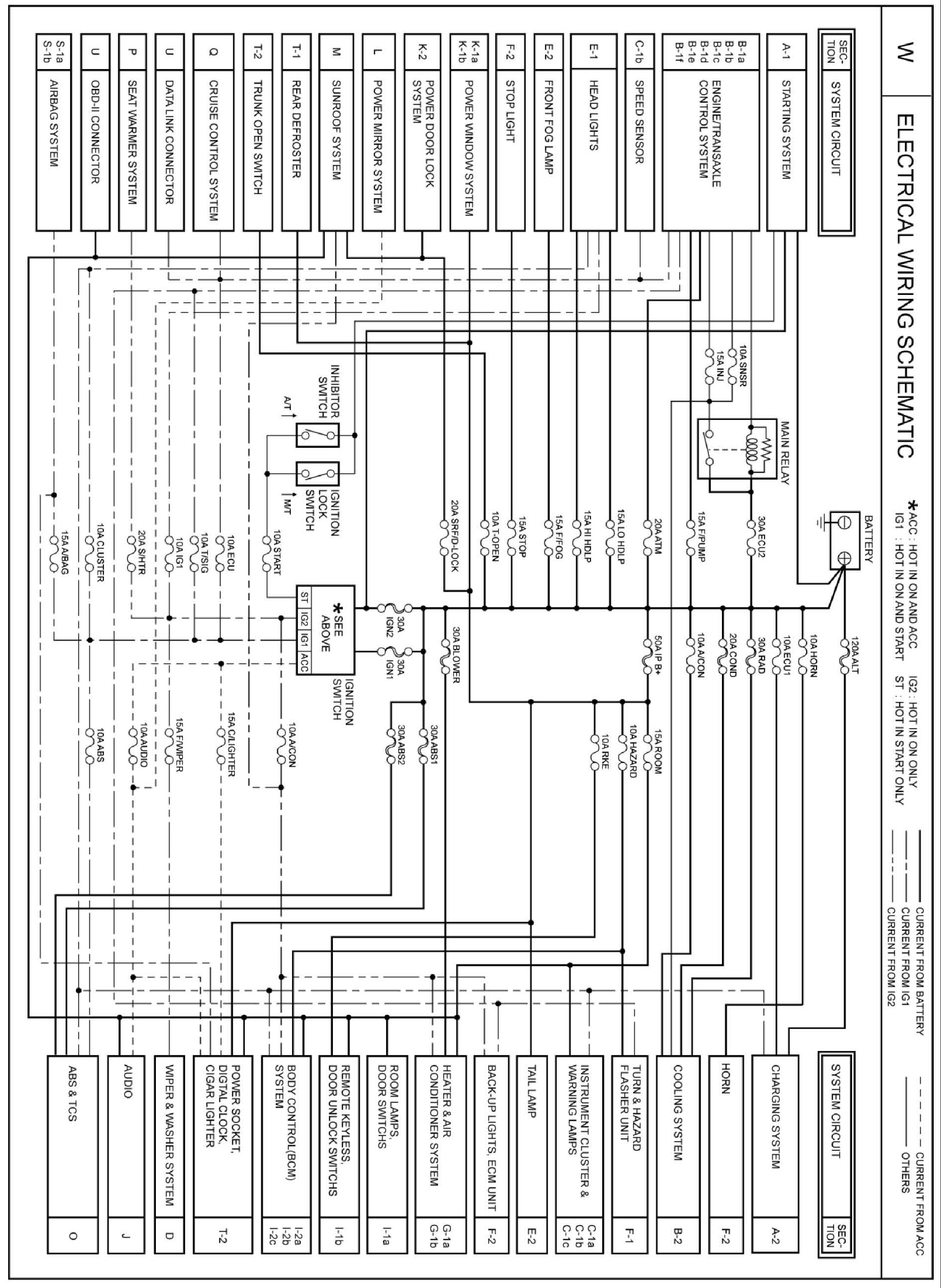

Electrical Wiring Schematic
Diagram W:
