Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Kia
>>
2005
>>
Spectra L4-2.0L
>>
Repair and Diagnosis
>>
Engine, Cooling and Exhaust
>>
Cooling System
>>
Radiator Cooling Fan
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams
Cooling System

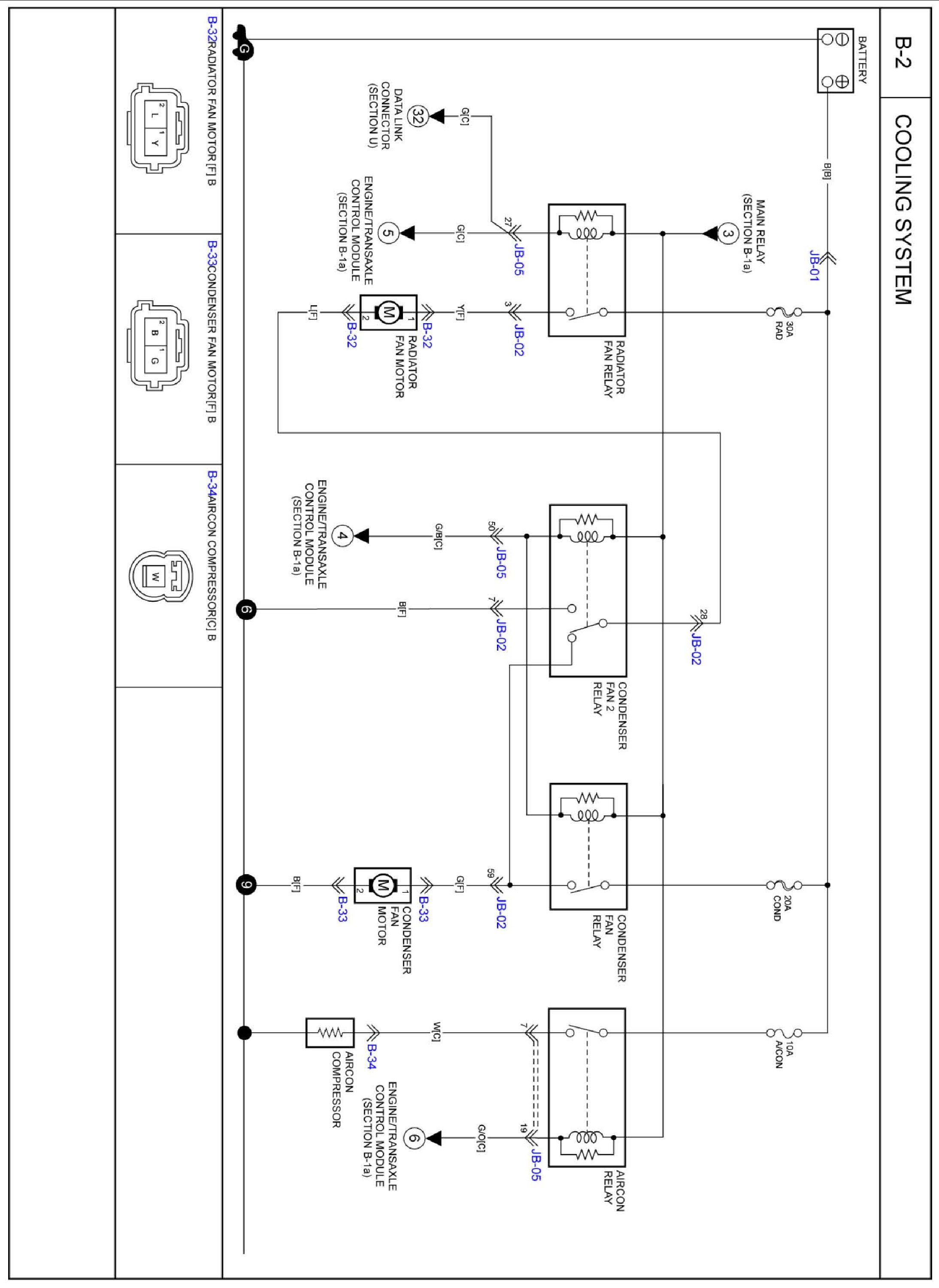

Diagram B-2:
