Front Speaker

REMOVAL

FRONT SPEAKER
1. Remove the front door trim panel.

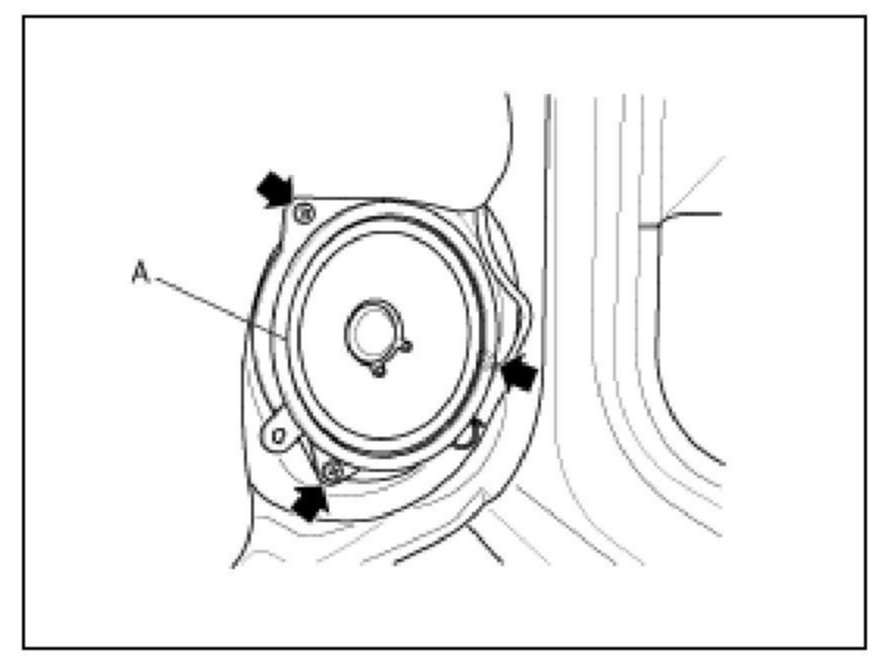

2. Remove the front speaker (A) after removing 3 screws.
3. Installation is the reverse of removal.
