Home
>>
Kia
>>
2005
>>
Rio L4-1.6L (BC)
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Automatic Transmission/Transaxle
>>
System Diagram
>>

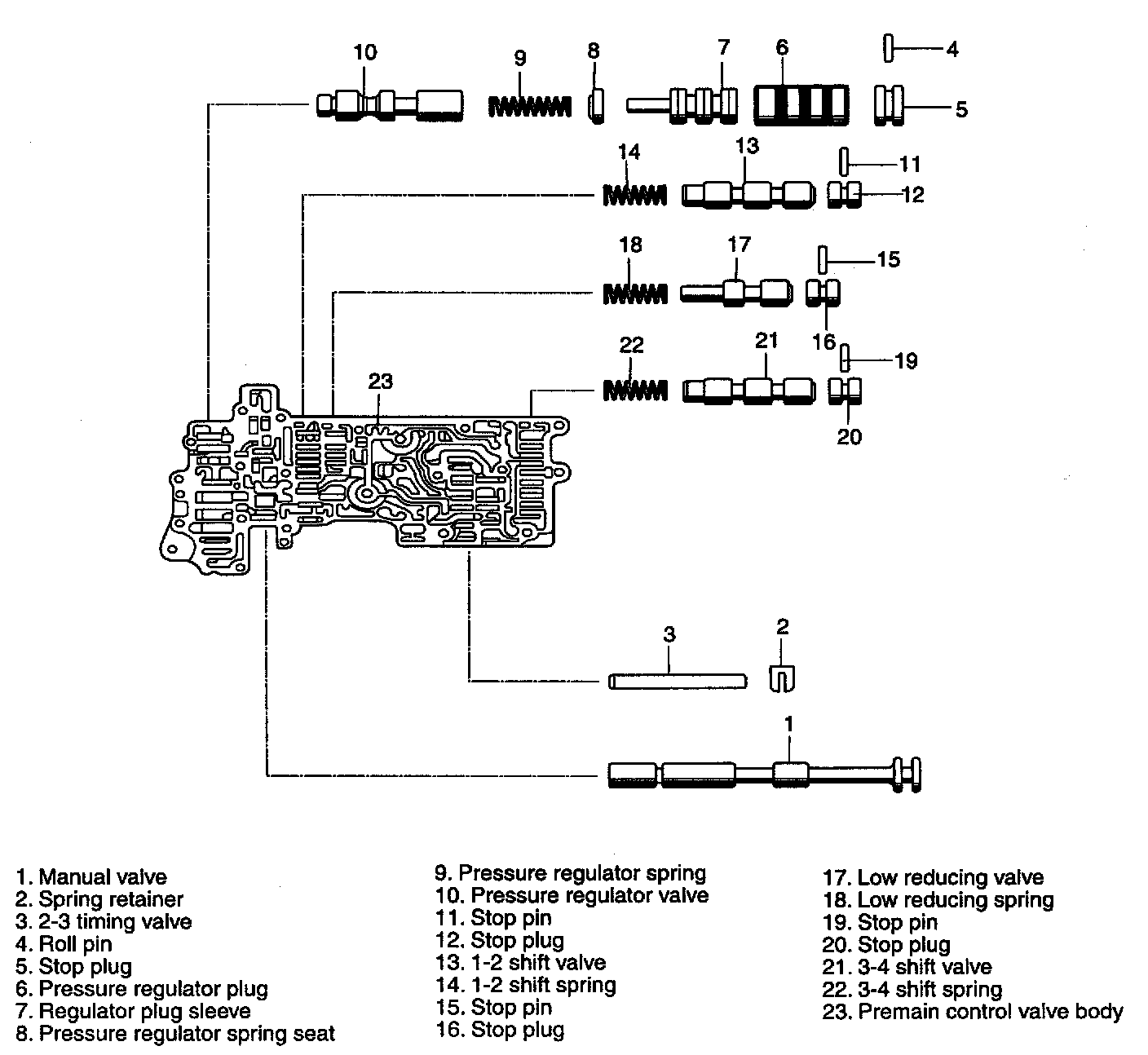

Main Control Valve Body
Main Control Valve Body
COMPONENT
