Optima L4-2.4L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Air Flow Meter/Sensor
>>
Diagrams
>>
Diagram Information and Instructions
>>

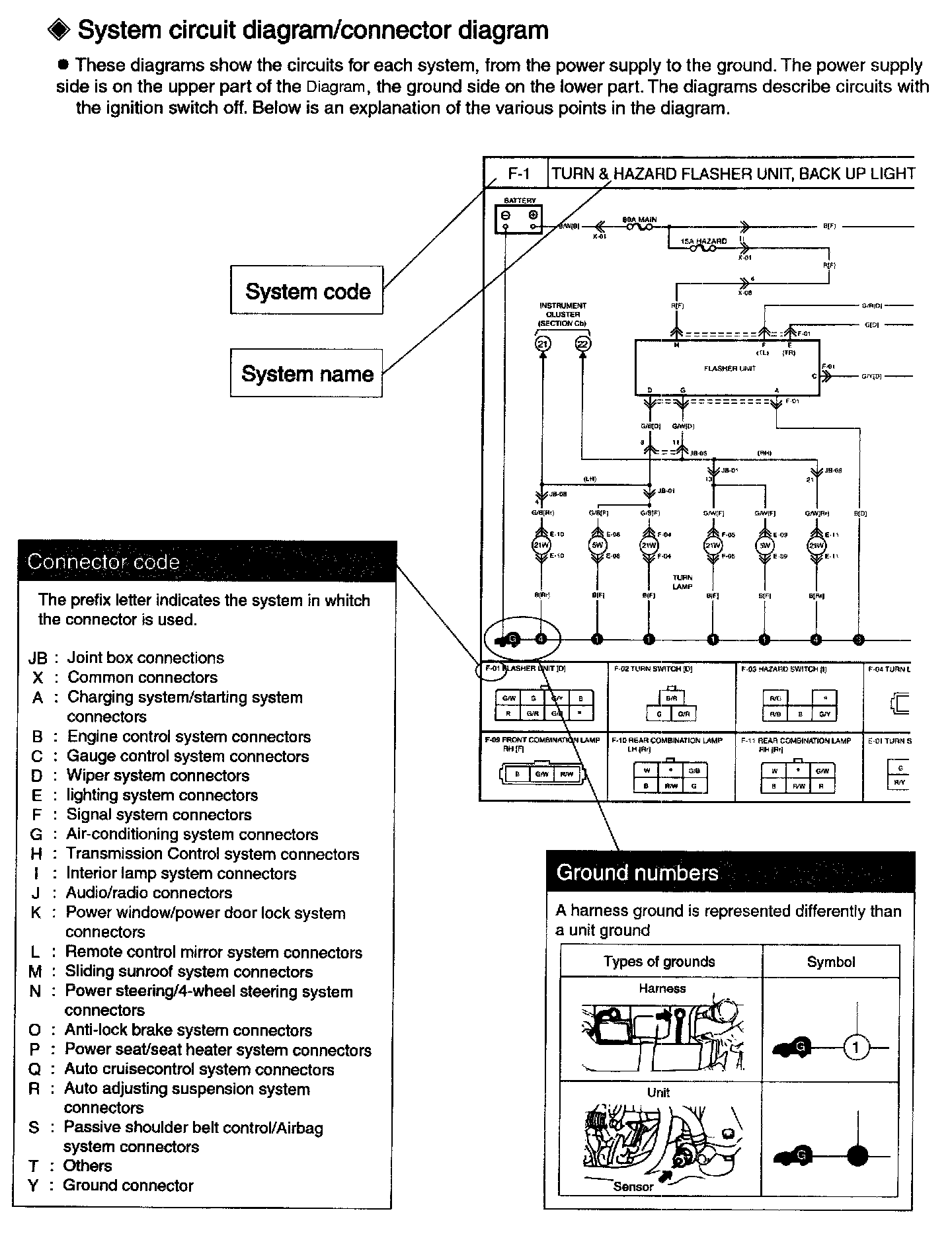

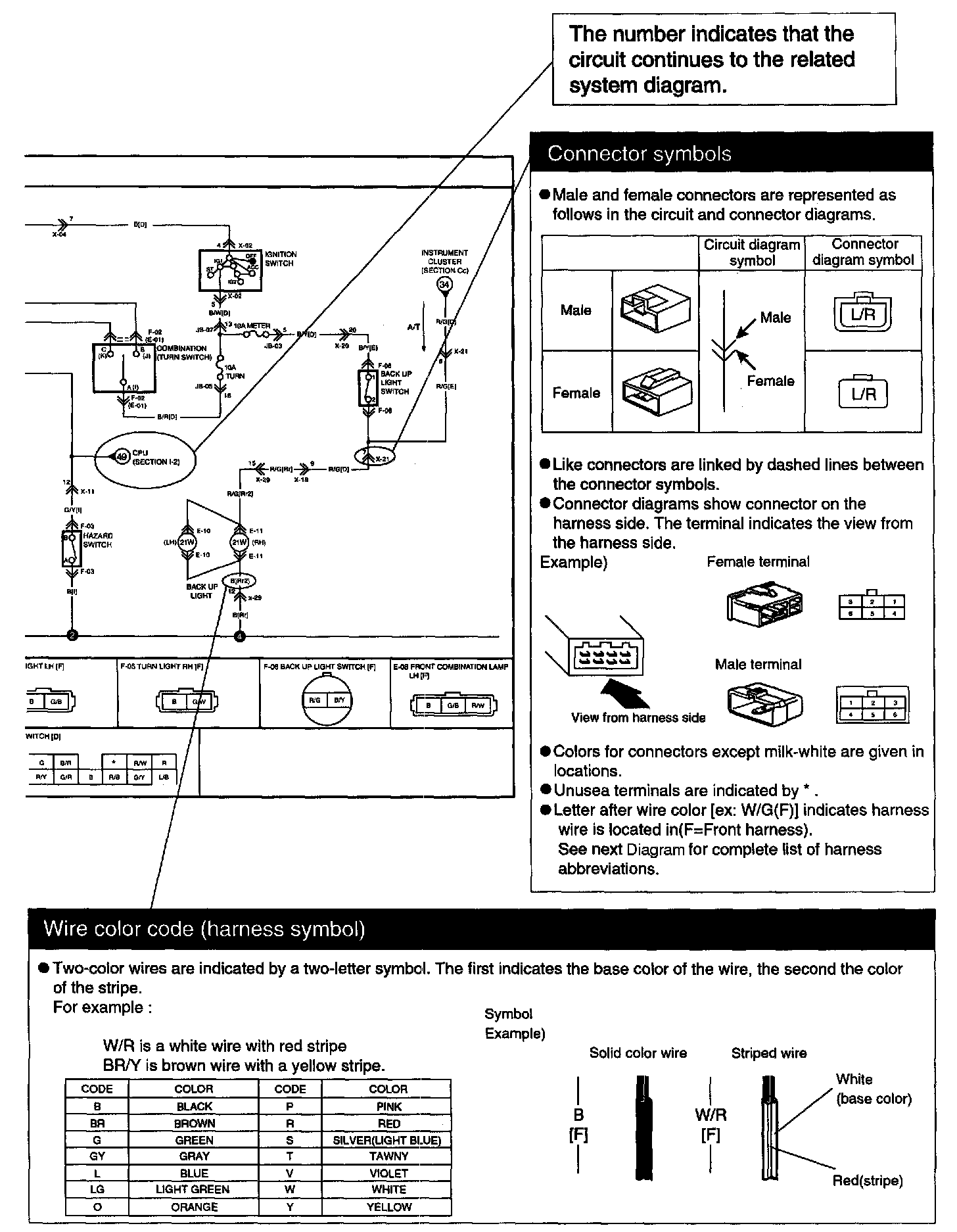

How To Read System Circuit Diagrams
How To Read System Circuit Diagrams
