Home
>>
Kia
>>
2004
>>
Amanti V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Automatic Transmission/Transaxle
>>
System Diagram
System Diagram

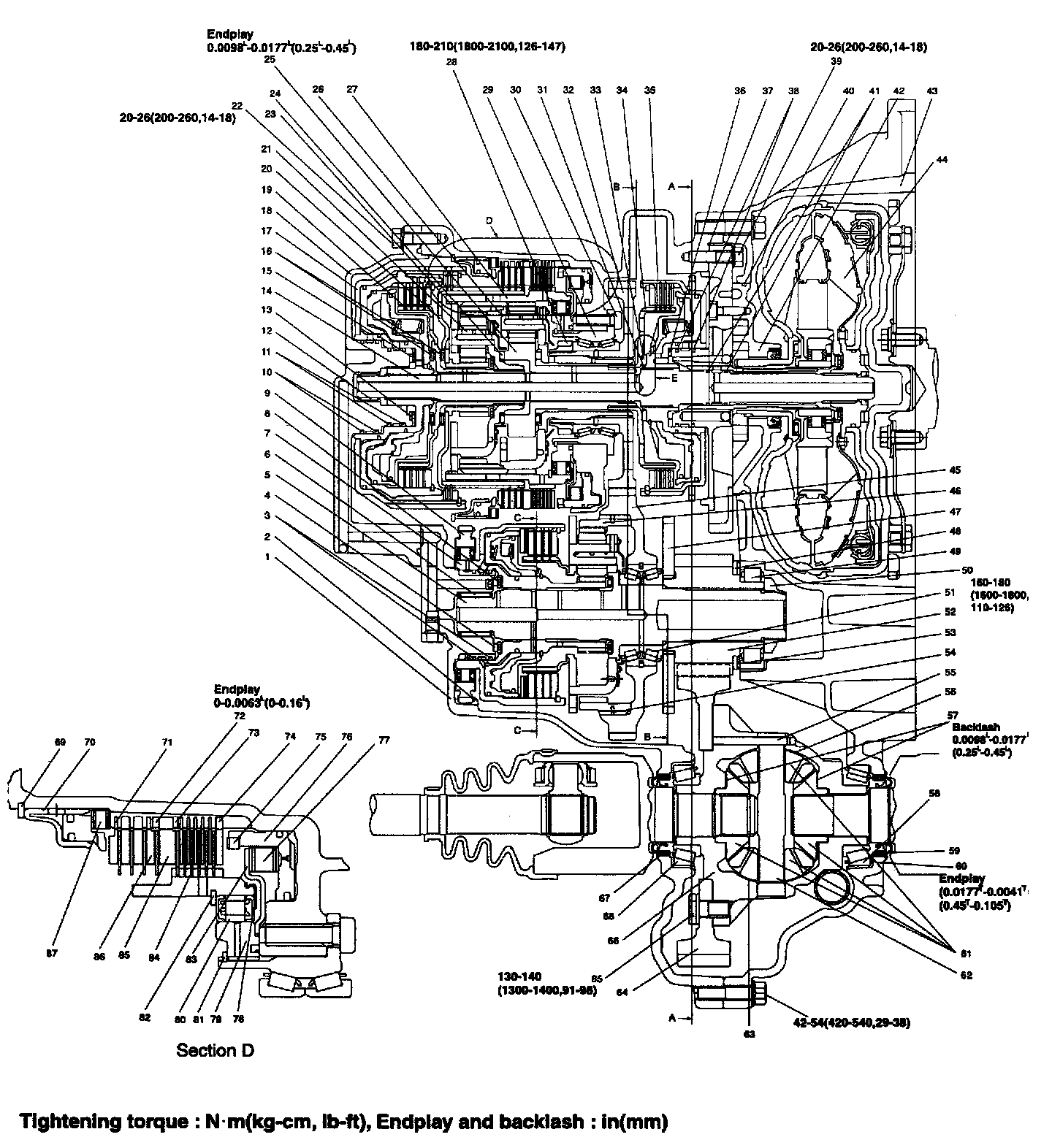

SECTIONAL VIEW

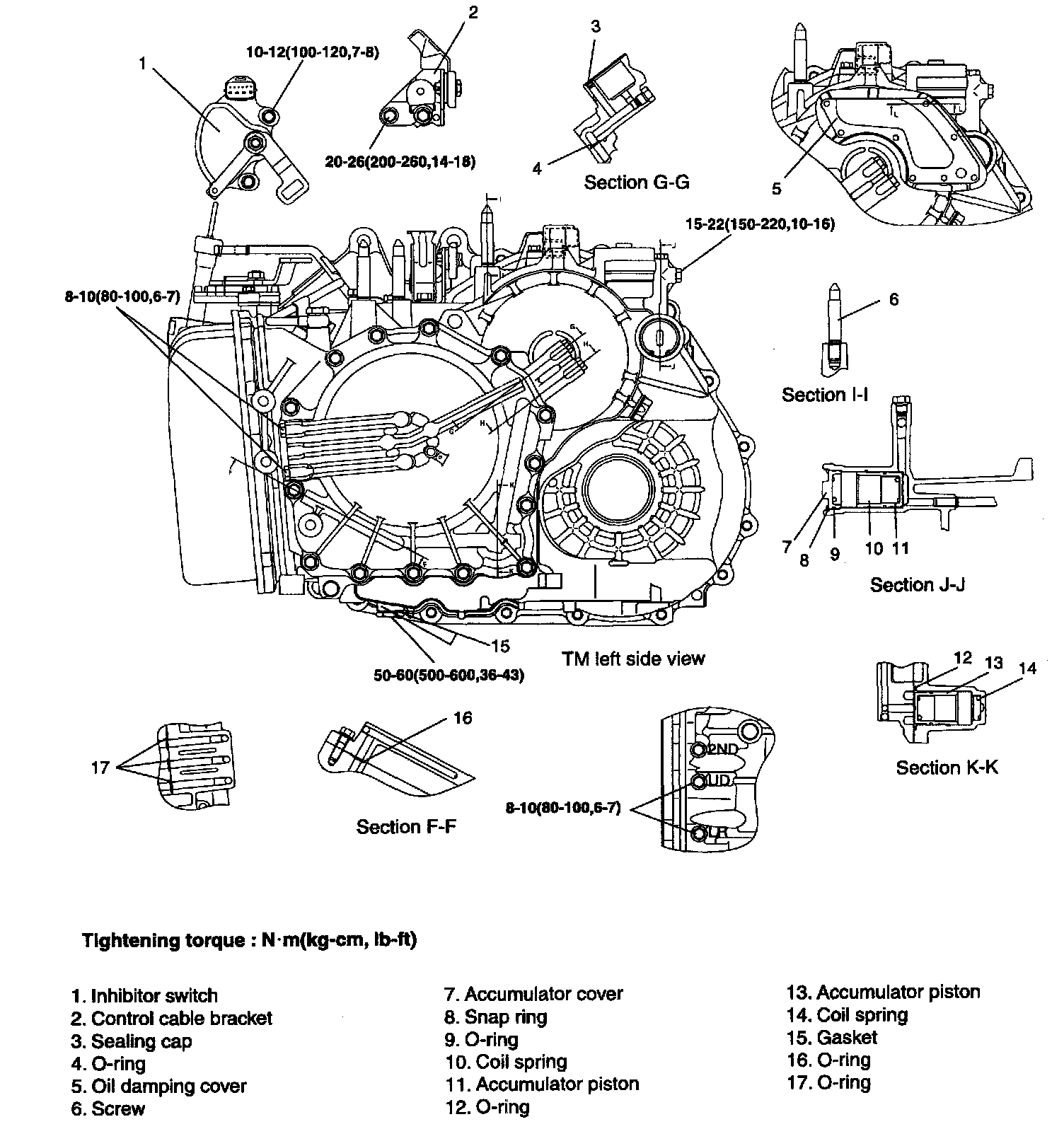

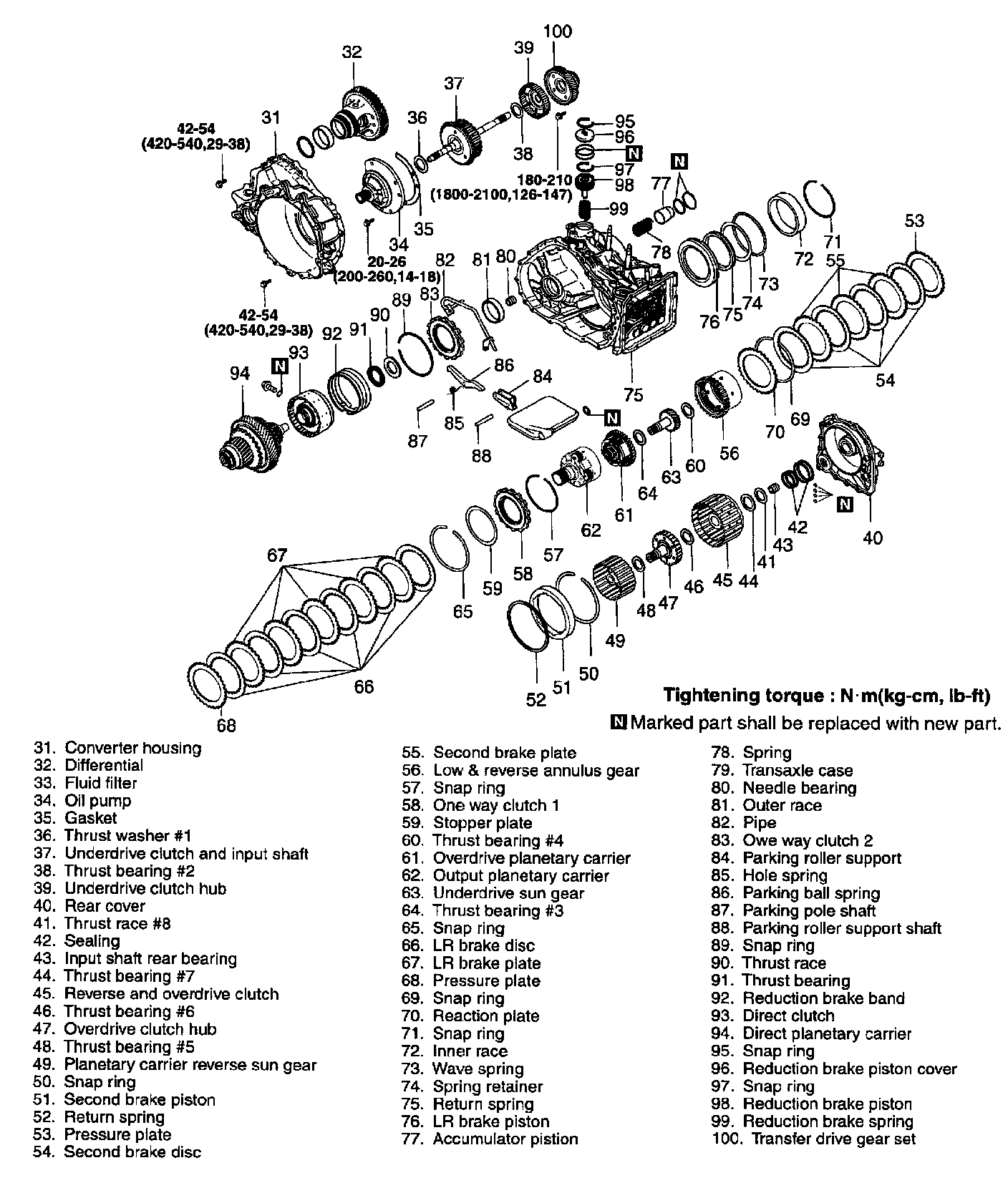

COMPONENTS (1)

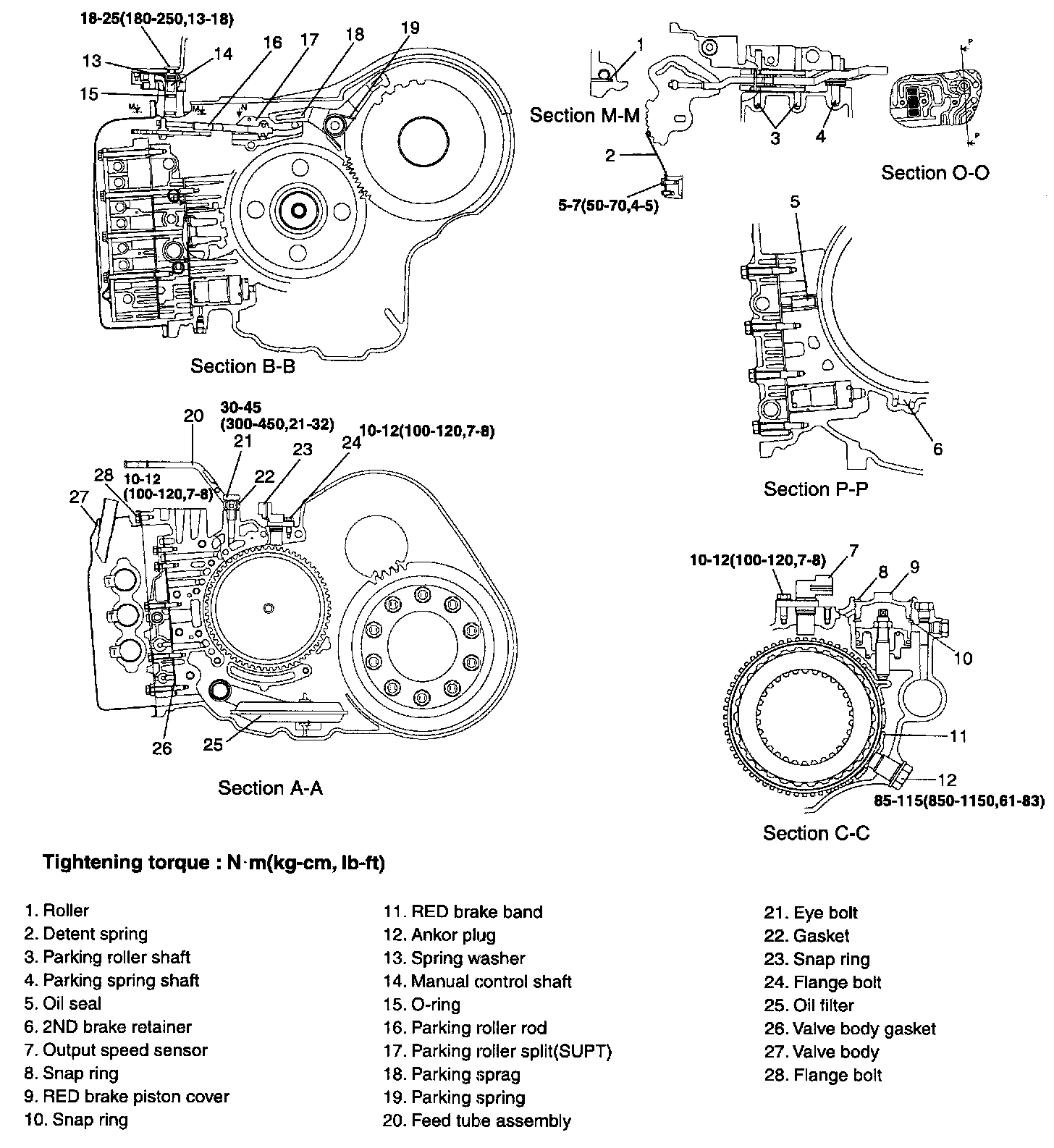

COMPONENTS (2)

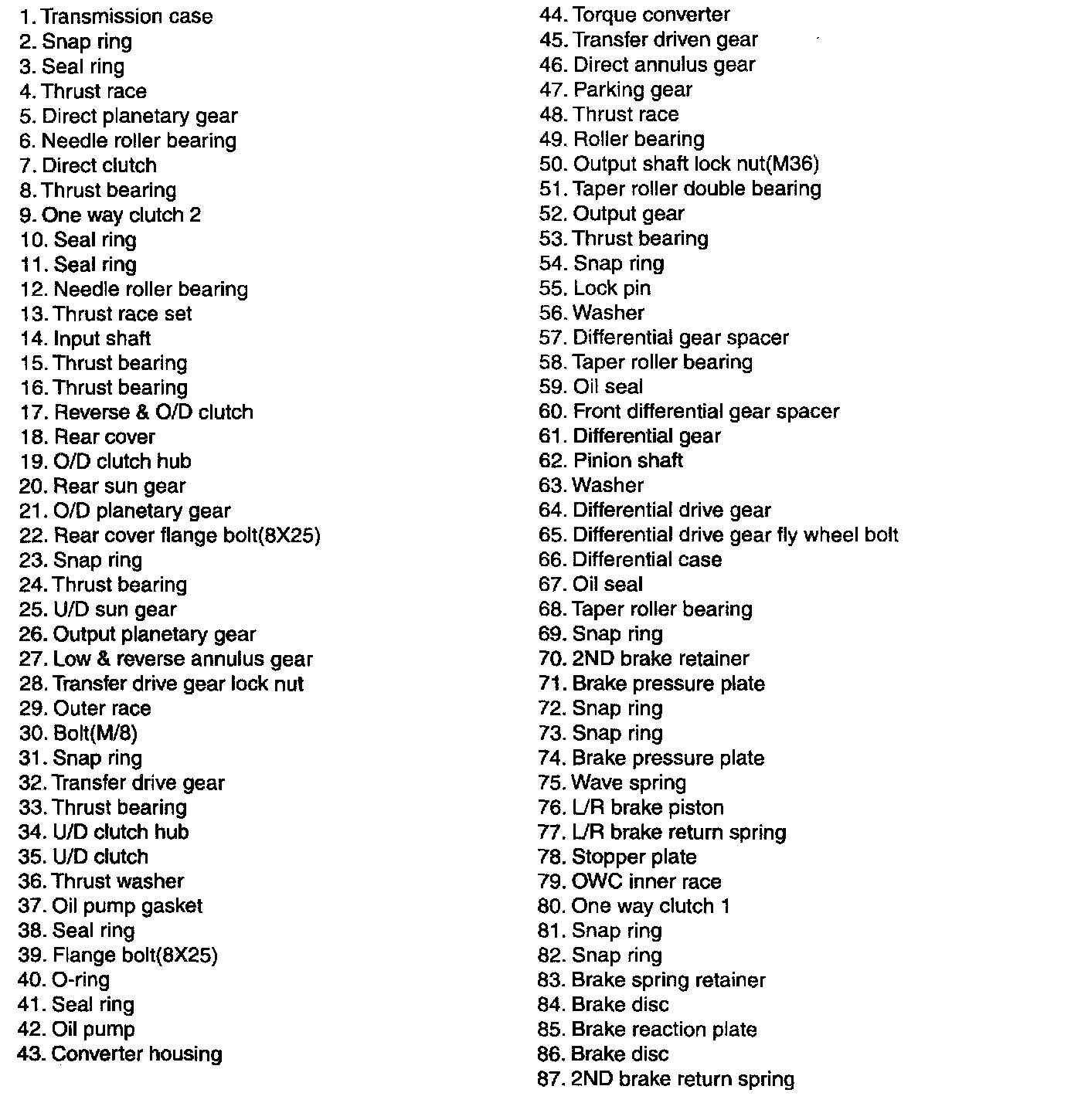

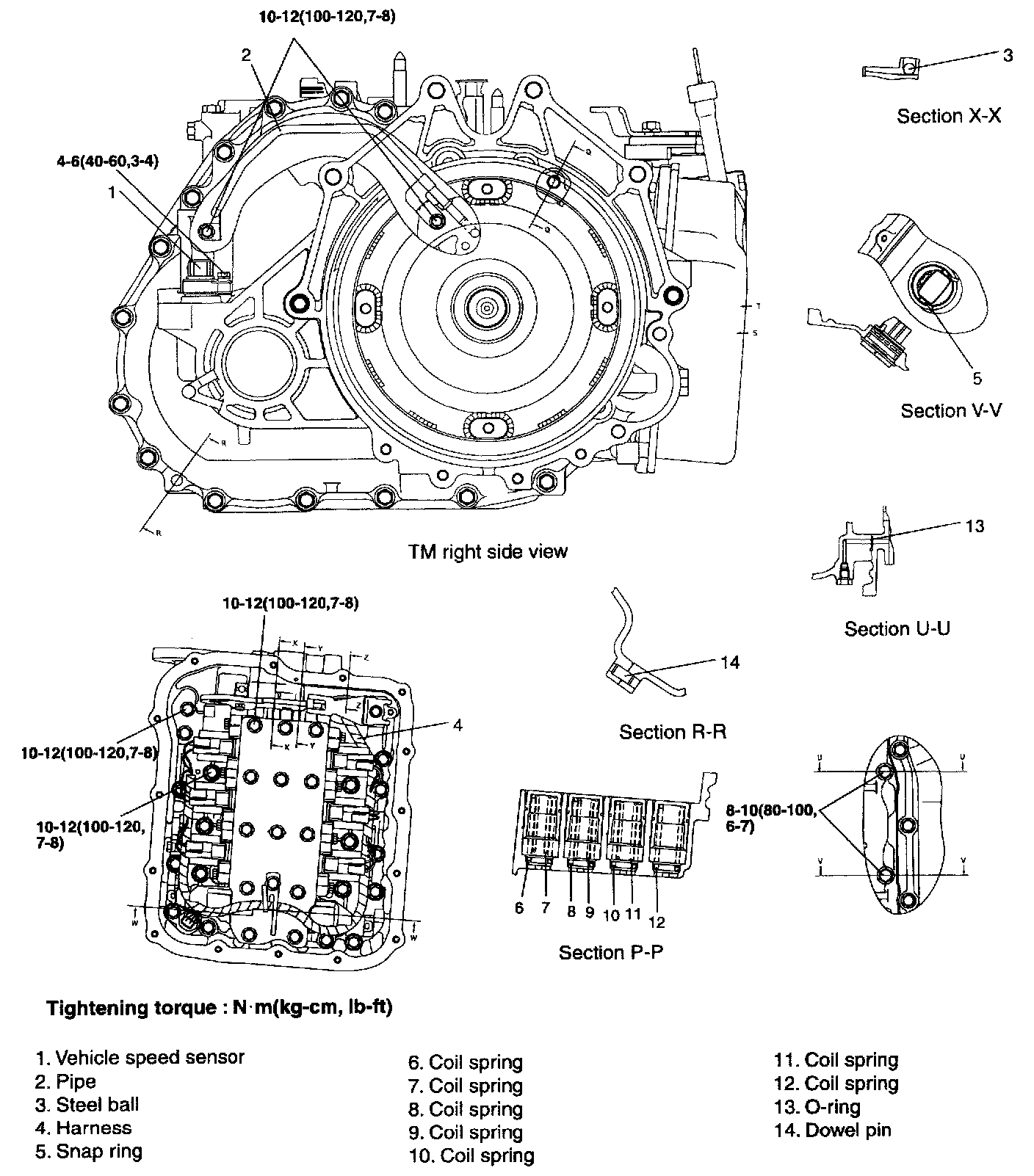

COMPONENTS (3)

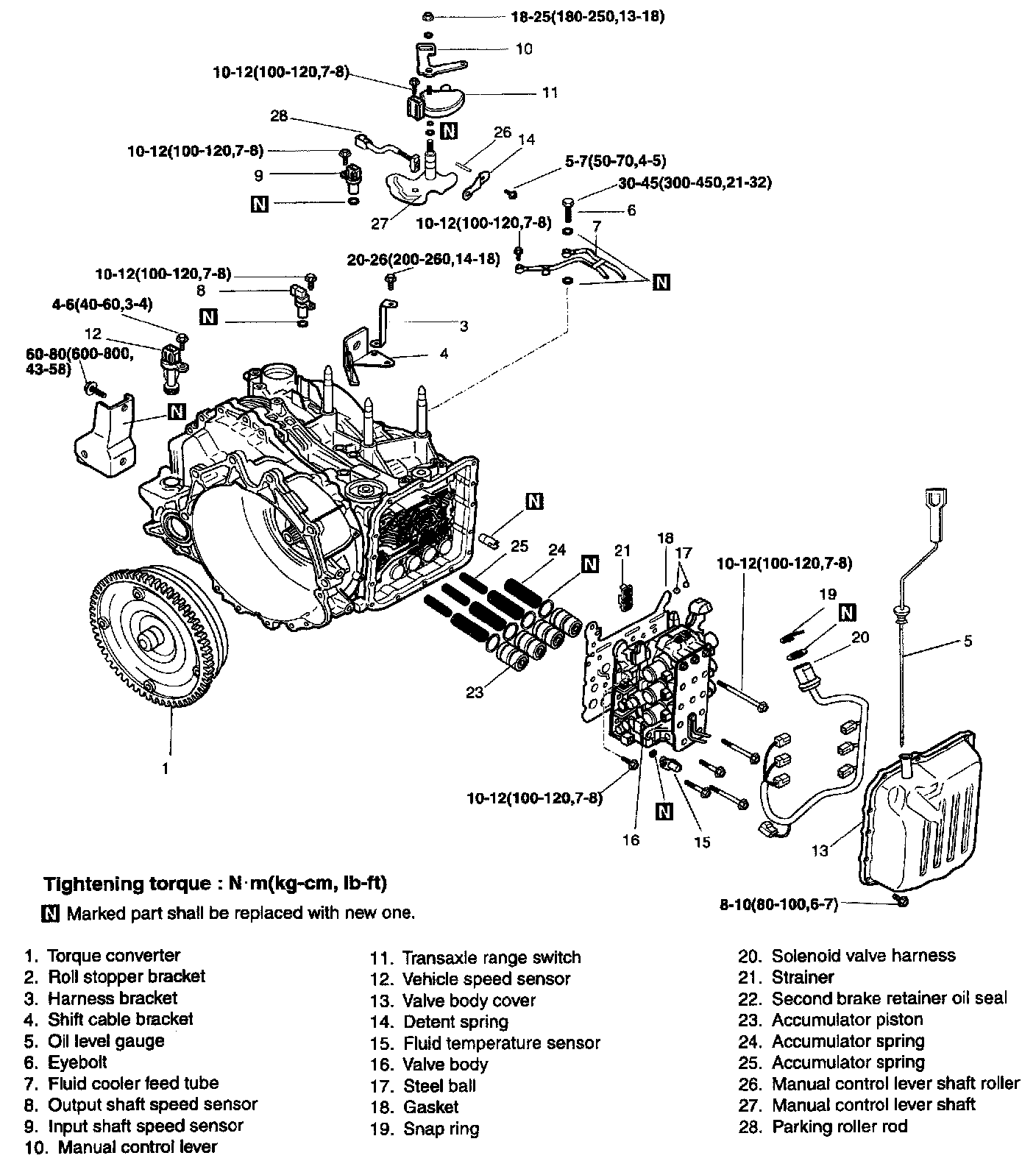

COMPONENTS (4)
