Home
>>
Kia
>>
2001
>>
Rio L4-1.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Automatic Transmission/Transaxle
>>
System Diagram
>>
Transaxle Overhaul
>>
Control Valve Body
Control Valve Body

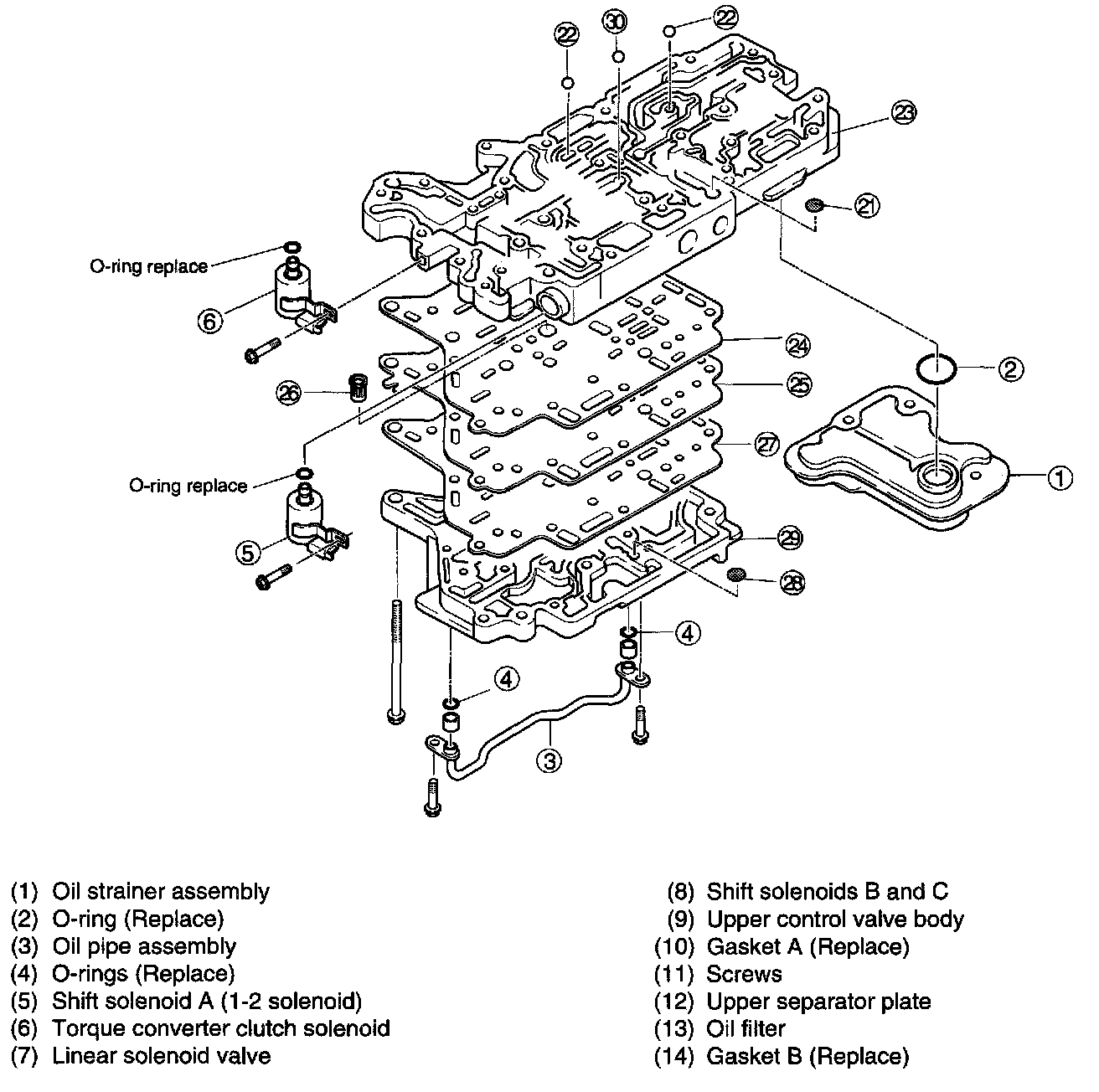

CONTROL VALVE BODY
1 of 2
2 of 2
