Kia
>>
2001
>>
Optima L4-2.4L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Vehicle Speed Sensor
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

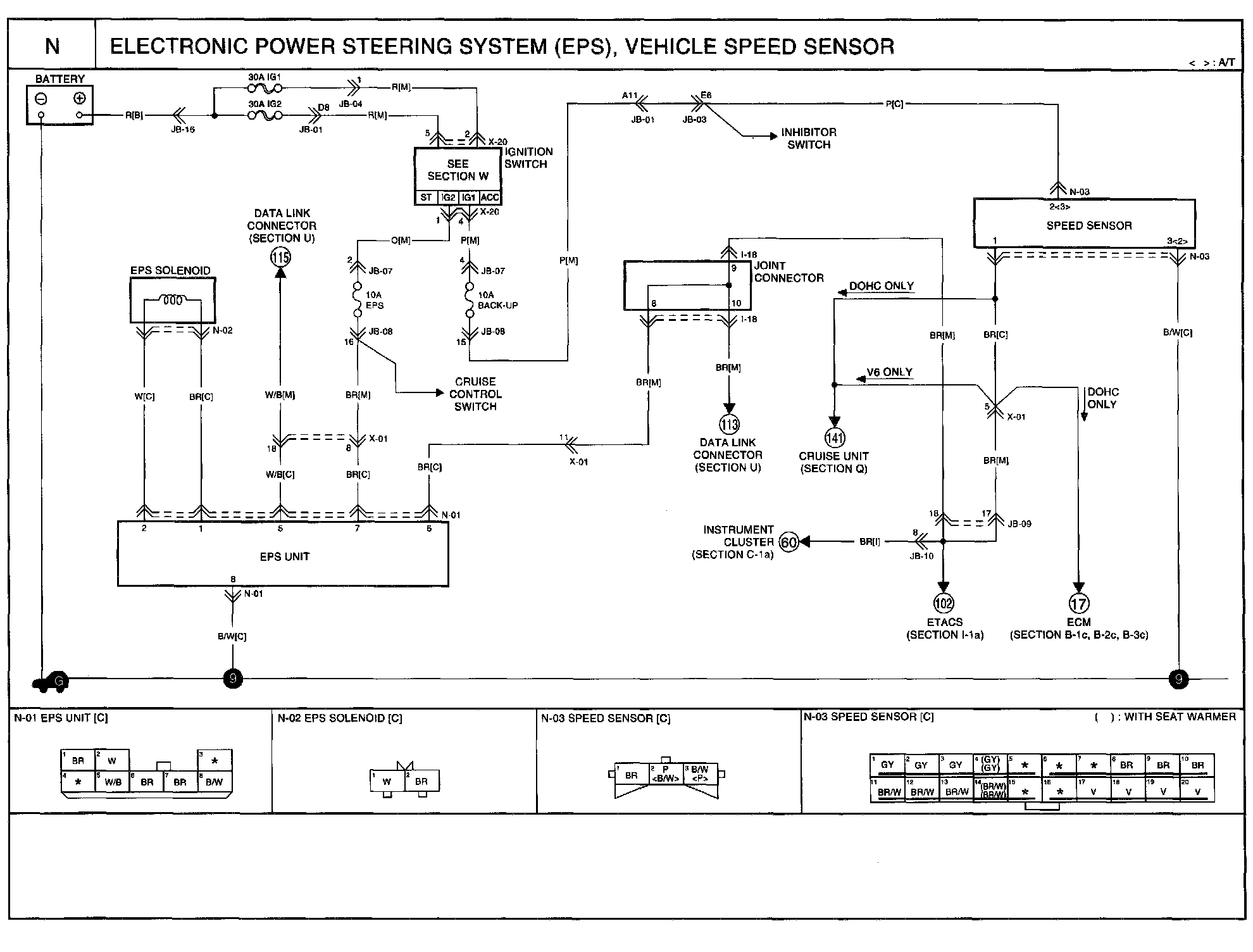

N - Electronic Power Steering System (EPS), Vehicle Speed Sensor Circuit:
