Antilock Brakes / Traction Control Systems
>>
System Diagram
System Diagram

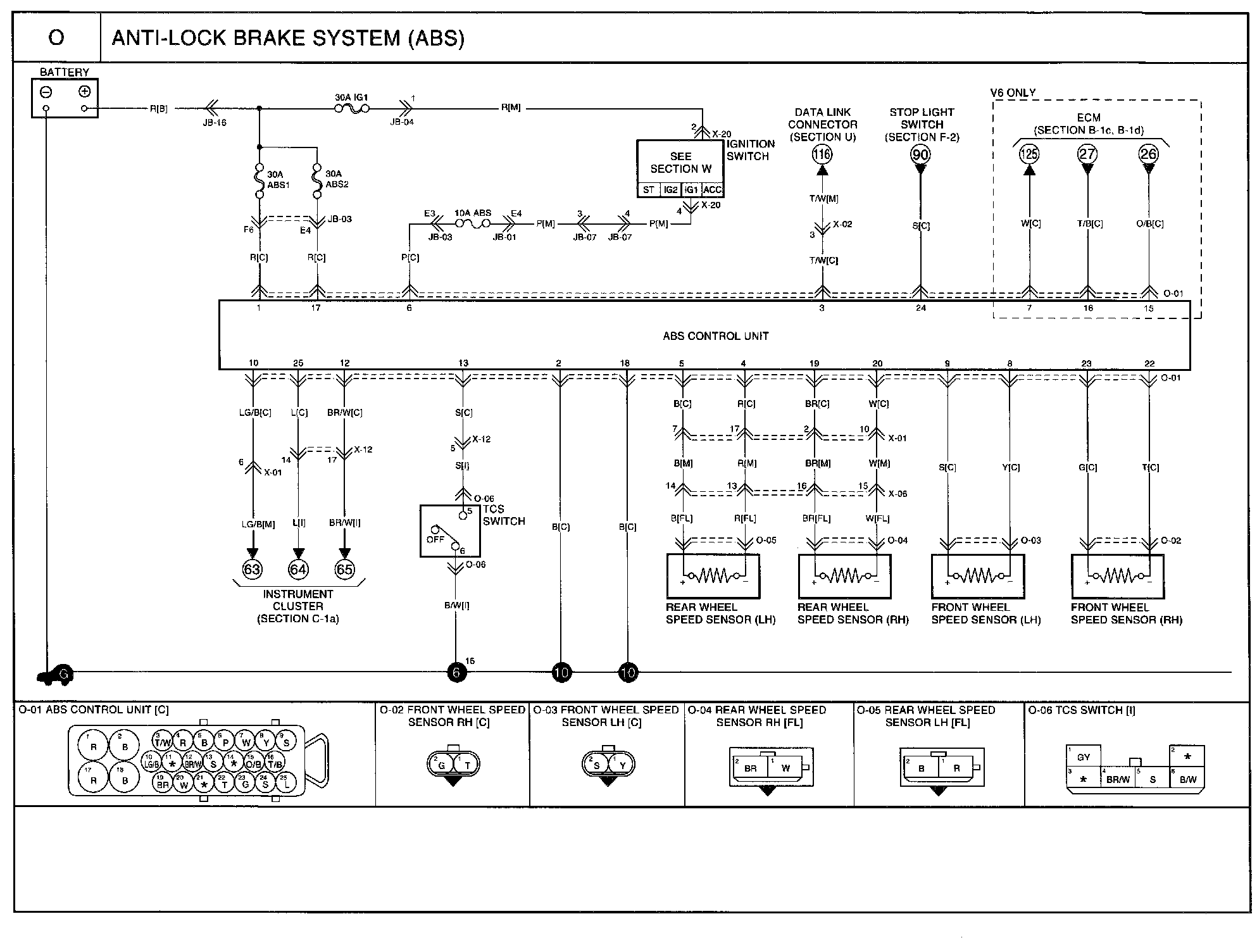

O - Anti-lock Brake System (ABS) Circuit:
