Component Operation Table

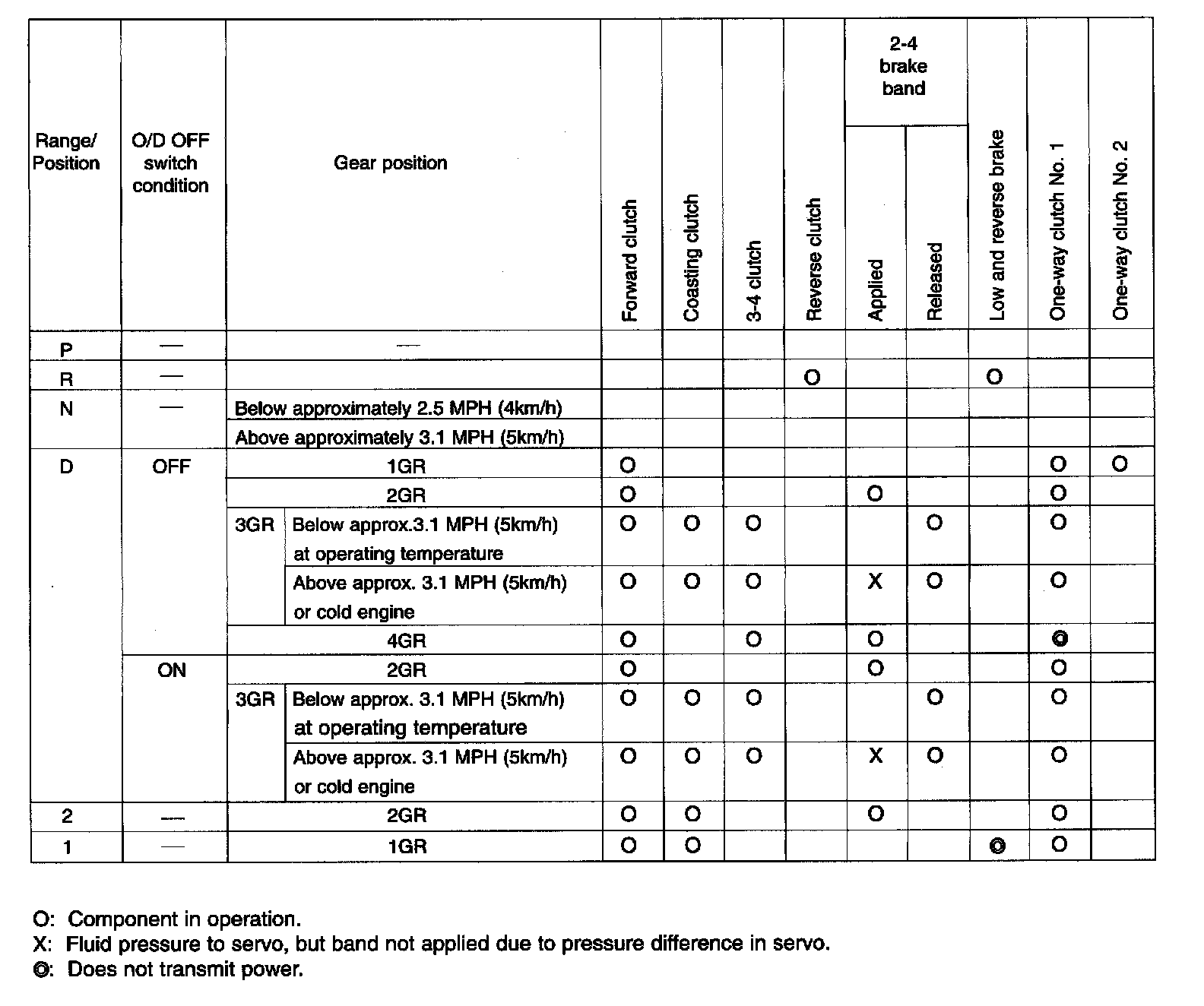

COMPONENT OPERATION TABLE: O/D OFF SYSTEM





SOLENOID VALVE OPERATION TABLE: O/D OFF SYSTEM

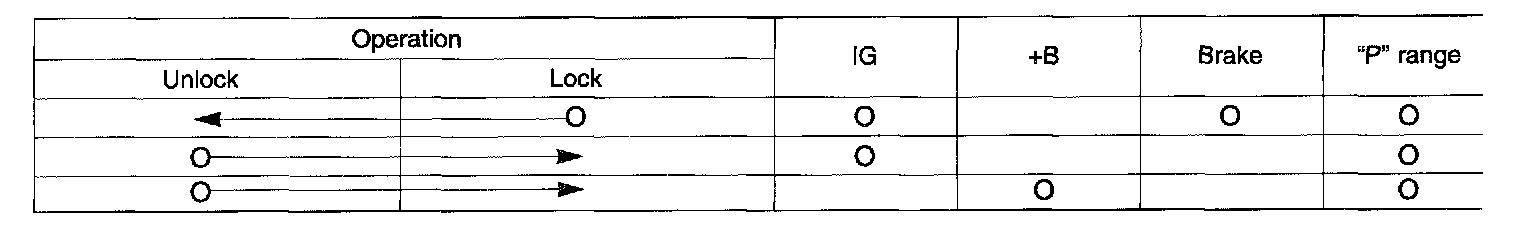

SHIFT MECHANISM OPERATION
