Kia
>>
1998
>>
Sephia LS Sedan L4-1.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Automatic Transmission/Transaxle
>>
System Diagram
>>

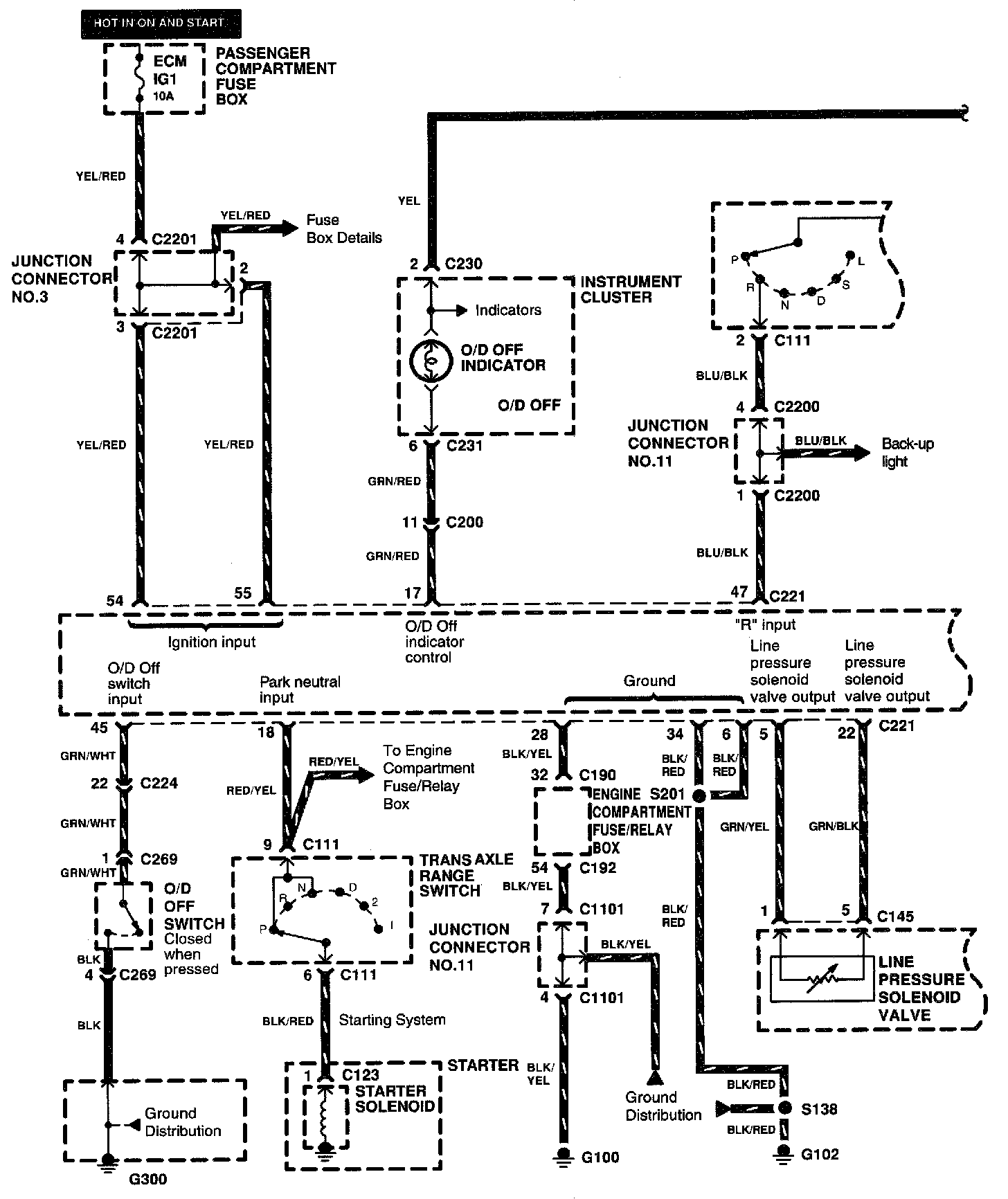

System Schematic

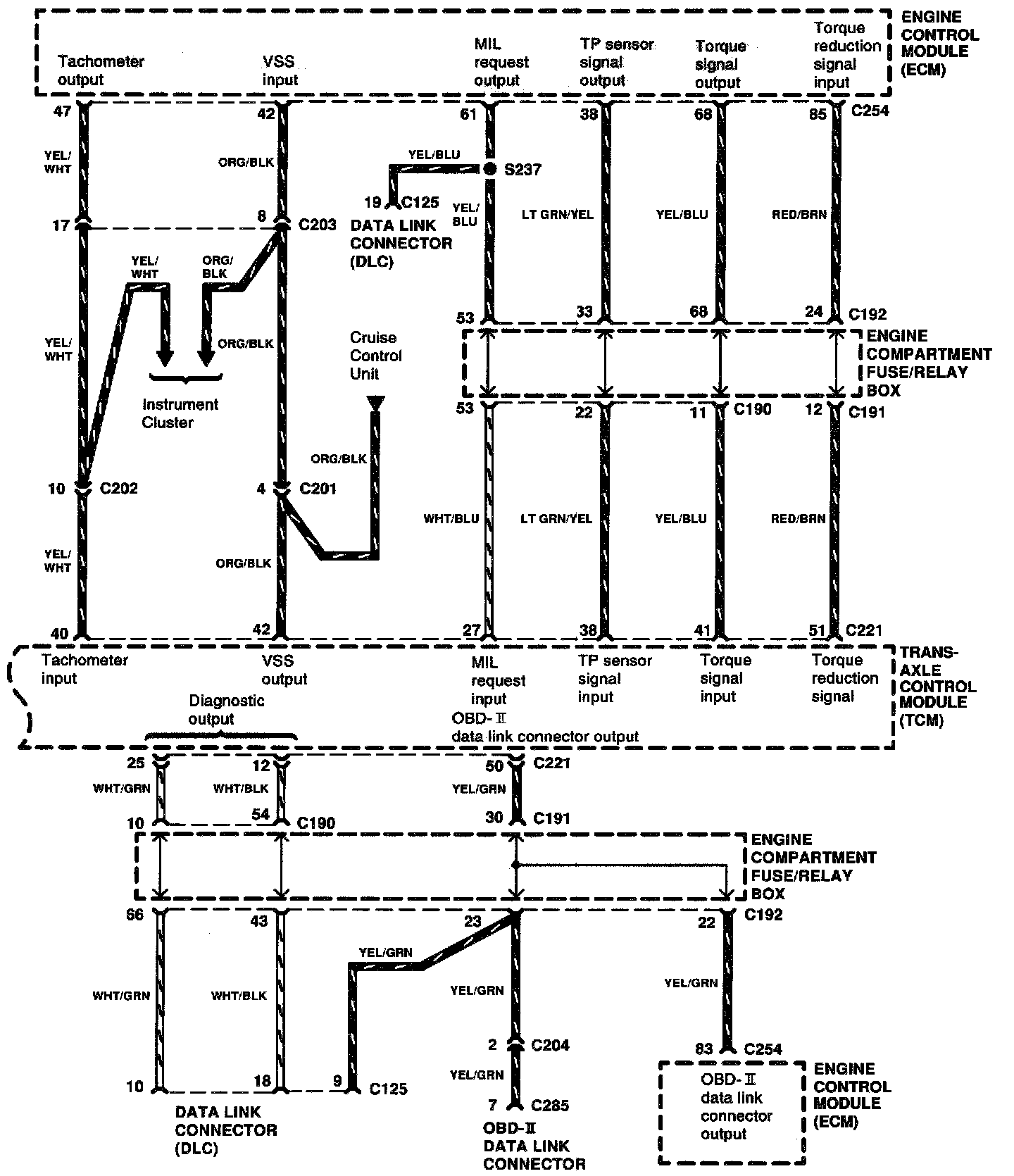

System Schematic
System Schematic
