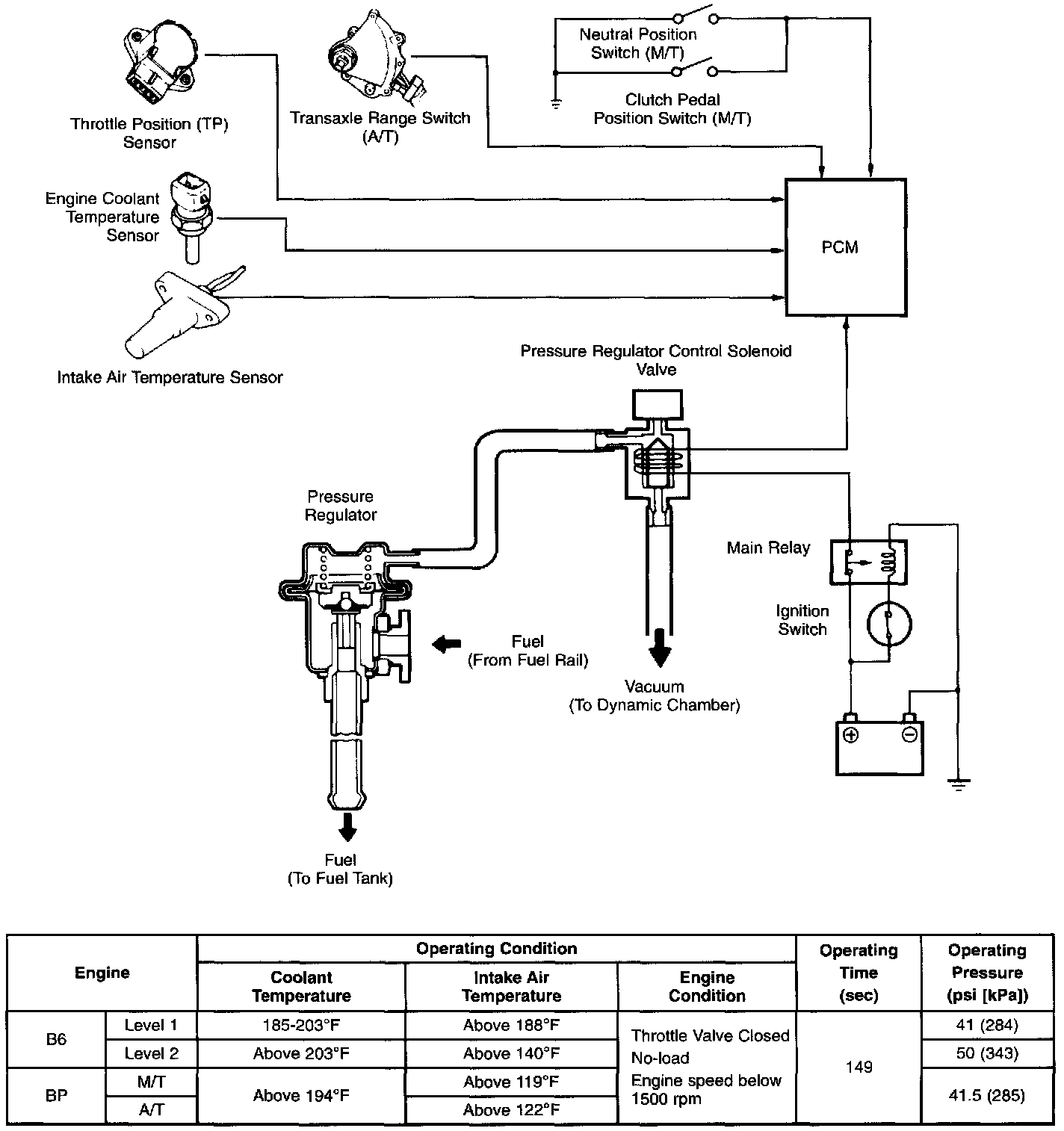

Fuel Pressure Control Solenoid: Description and Operation





DESCRIPTION AND OPERATION
To prevent percolation of the fuel during hot restart idle, vacuum to the pressure regulator is momentarily cut, and the fuel injection pressure is increased to slightly more than 41.2 psi (284 kpa).
