Engine - Coolant Temperature Sensor/Switch: Testing and Inspection

Inspection

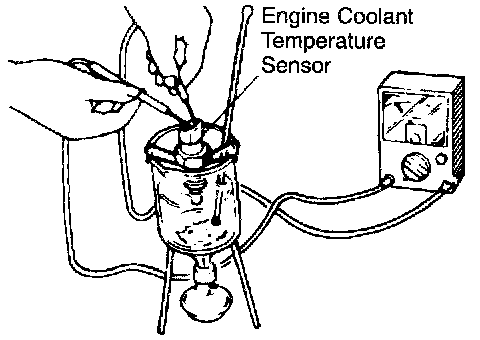

1. Place the engine coolant temperature sensor in water with a thermometer and heat the water gradually.
2. Measure resistance of the sensor with an ohmmeter.

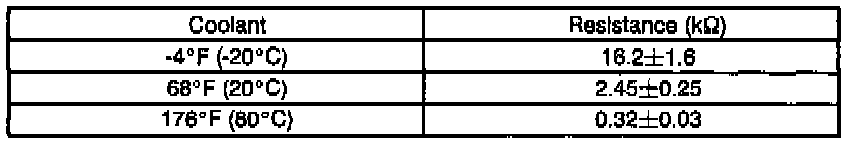

Spec Chart:

3. If not as specified, replace the engine coolant temperature sensor.
