Shift Mechanism Overhaul

OVERHAUL

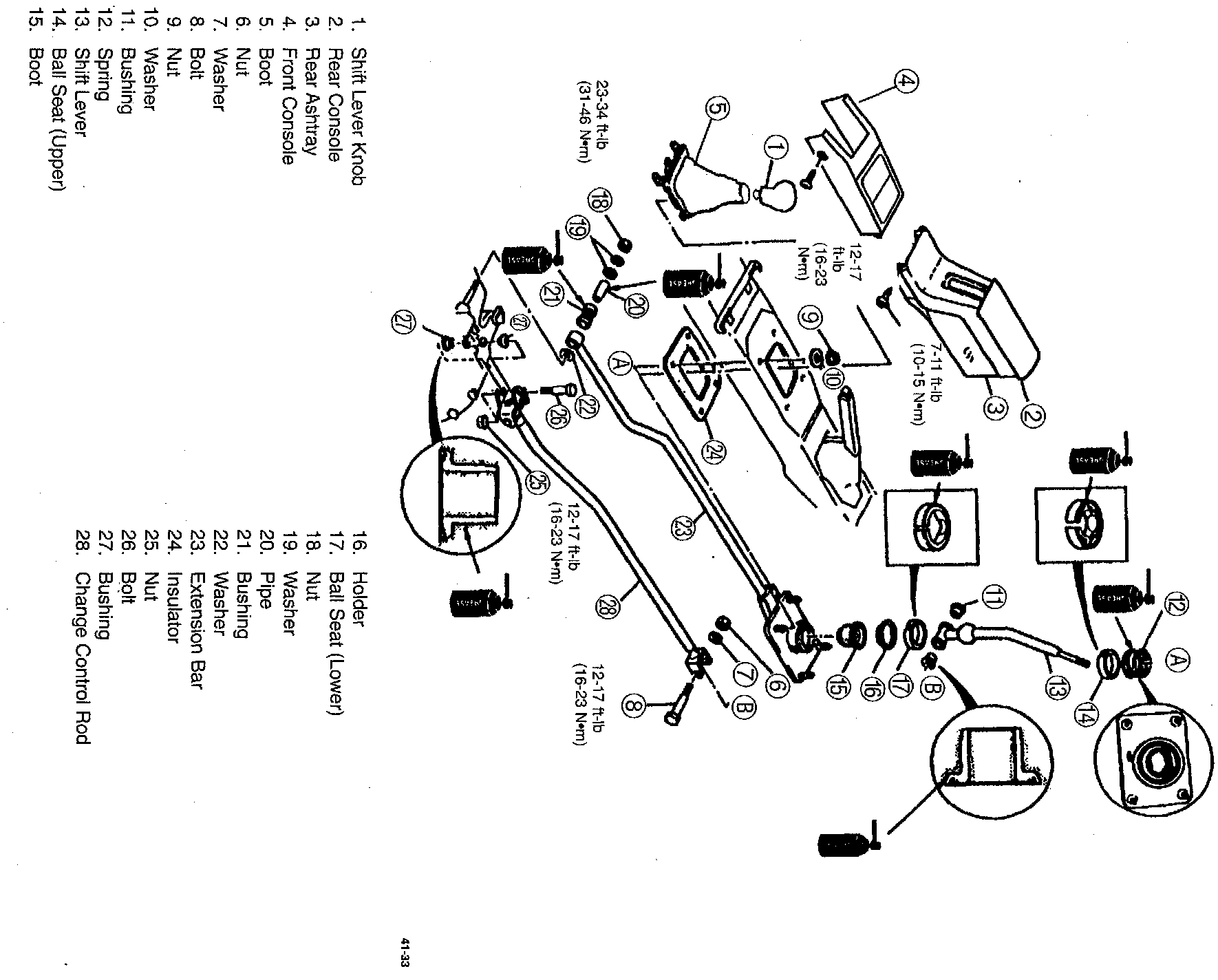

1. Disassemble in the order shown.
2. Inspect all parts and repair or replace as necessary.
3. Assemble in the reverse order of disassembly.

ASSEMBLY NOTES

Extension Bar





1. Connect the extension bar onto the transaxle, then mount it to the floor.

Tightening torque: 12 - 17 ft. lbs. (16 - 23 Nm)

Spring





1. Verify that the hooked part of the spring is properly seated in the bracket groove.
