Clutch Housing and Transaxle Case Components Disassembly

NOTICE: Do not remove an oil seal if not necessary.

REVERSE LEVER SHAFT
1. Disassemble in the order shown.





2. Remove the roll pin with pliers.

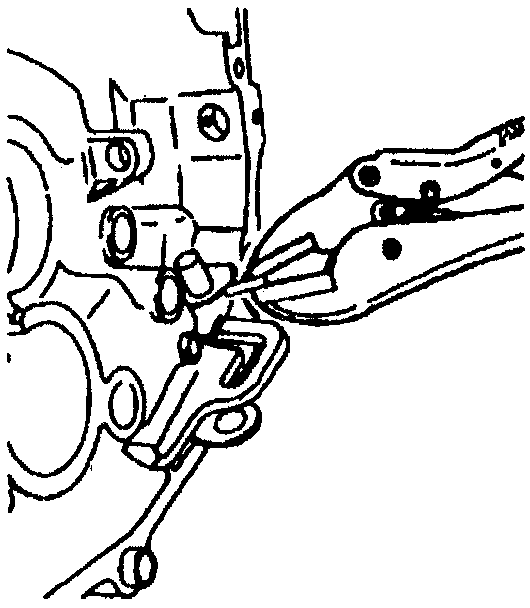

3. Protect the reverse lever shaft with a rag and remove the shaft with pliers.

OIL SEAL (CHANGE ROD)
1. Disassemble in the order shown.
2. Remove the nut and bolt and remove the change rod end from the change rod.
3. Remove the boot.





4. Remove the oil seal using a screwdriver.

FUNNEL AND BEARING OUTER RACE (SECONDARY SHAFT)
1. Disassemble in the order shown.





2. Remove the bearing outer race by lifting out the funnel and race together.

OIL SEAL (PRIMARY SHAFT)

NOTICE: Do not damage the clutch housing.

1. Disassemble in the order shown.

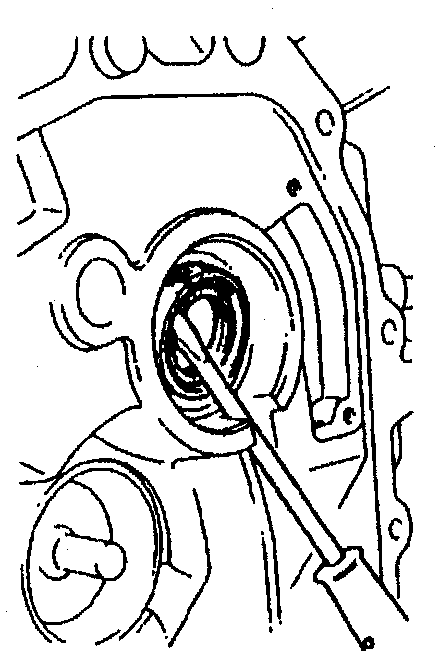

2. Remove the oil seal with a screwdriver.

OIL SEAL (DIFFERENTIAL)
1. Disassemble in the order shown.

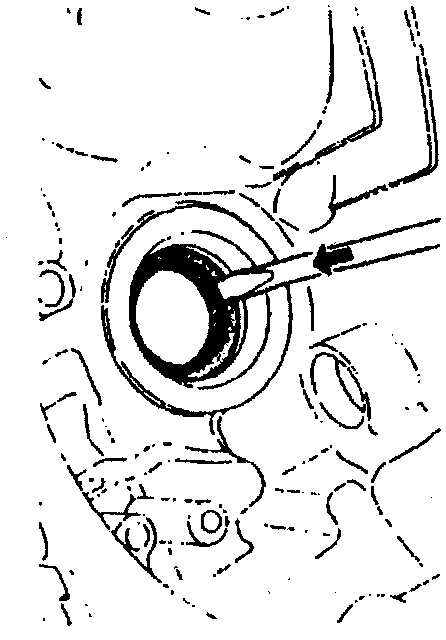

2. Remove the oil seal with a screwdriver.

BEARING OUTER RACE (DIFFERENTIAL)
1. Disassemble in the order shown.





2. Install SST (or equivalent) to the bearing outer race.
3. Remove the bearing outer race with a suitable pipe.

BEARING OUTER RACE AND ADJUST SHIM (DIFFERENTIAL)
1. Disassemble in the order shown.





2. Install the SST (or equivalent) to the bearing outer race.
3. Remove the bearing outer race and adjust shim.
