System Diagram

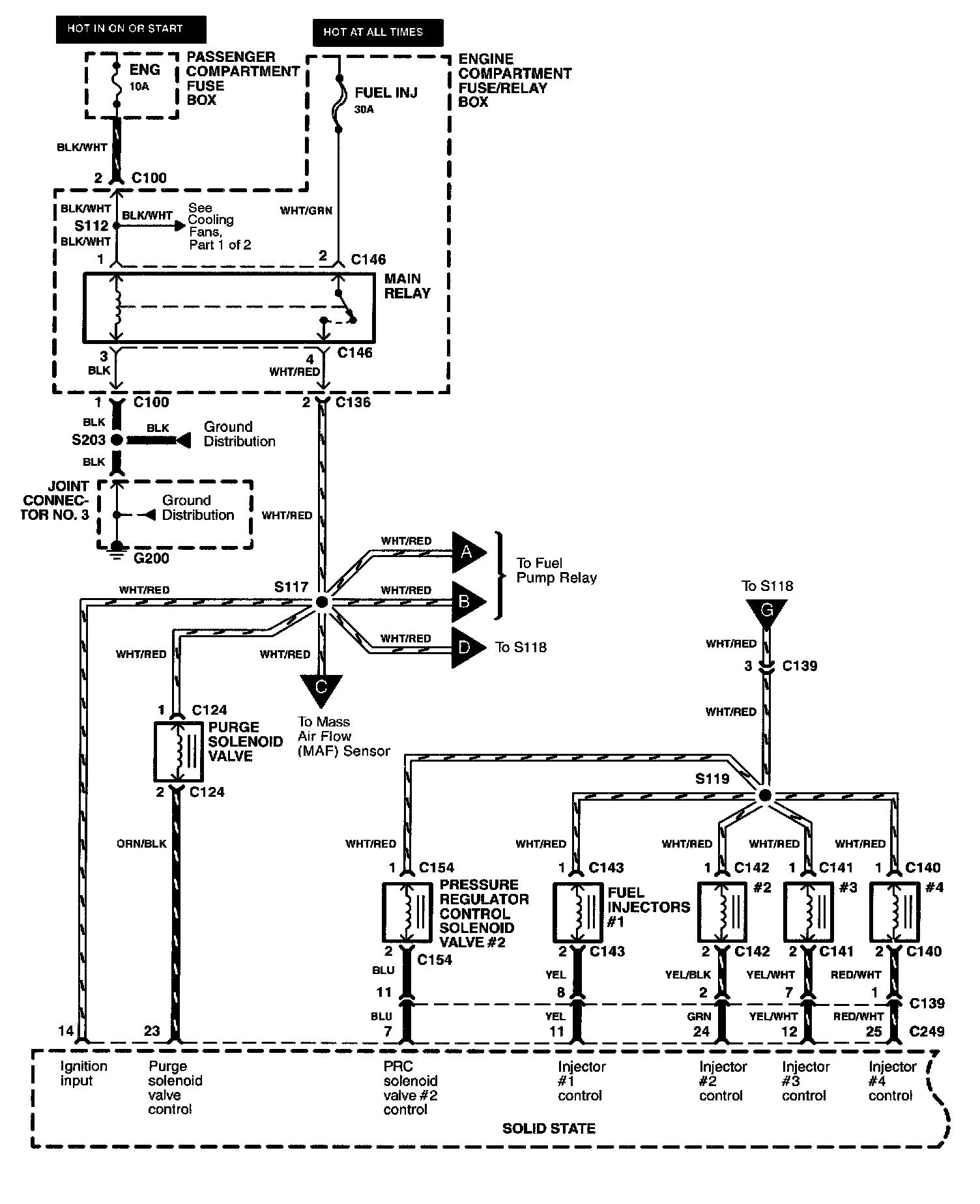

Sequential Multiport Fuel Injection (SFI) (Part 1 Of 7):

Sequential Multiport Fuel Injection (SFI) (Part 1 Of 7)
Engine Compartment Fuse/Relay Box
Fuel Injectors #1
Joint Connector No. 3
Main Relay
Passenger Compartment Fuse Box
Pressure Regulator Control Solenoid Valve #2
Purge Solenoid Valve

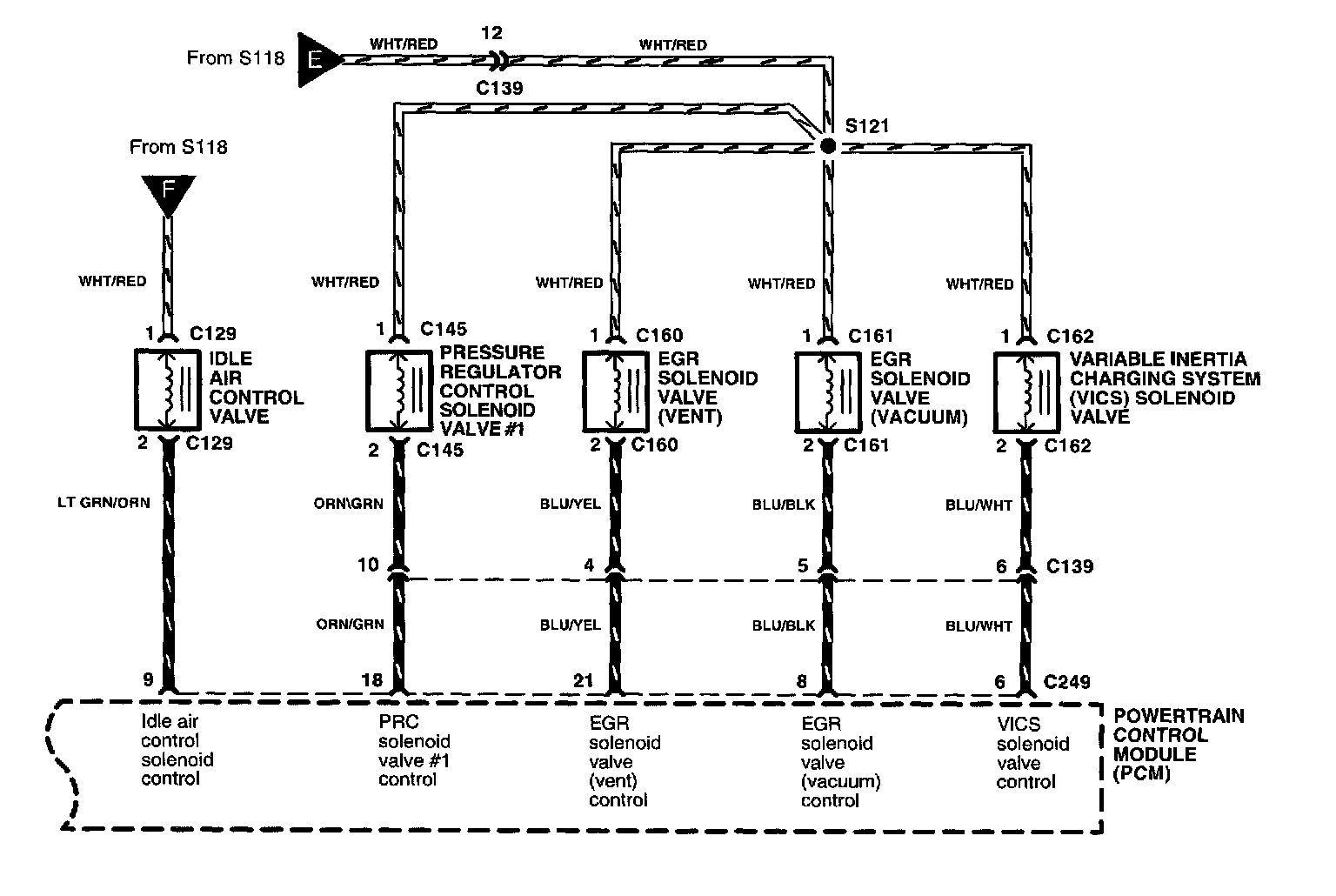

Sequential Multiport Fuel Injection (SFI) (Part 2 Of 7):

Sequential Multiport Fuel Injection (SFI) (Part 2 Of 7)
EGR Solenoid Valve (Vent)
EGR Solenoid Valve (Vacuum)
Idle Air Control Valve
Powertrain Control Module (PCM)
Pressure Regulator Control Solenoid Valve #1
Variable Inertia Charging System (VICS) Solenoid Valve

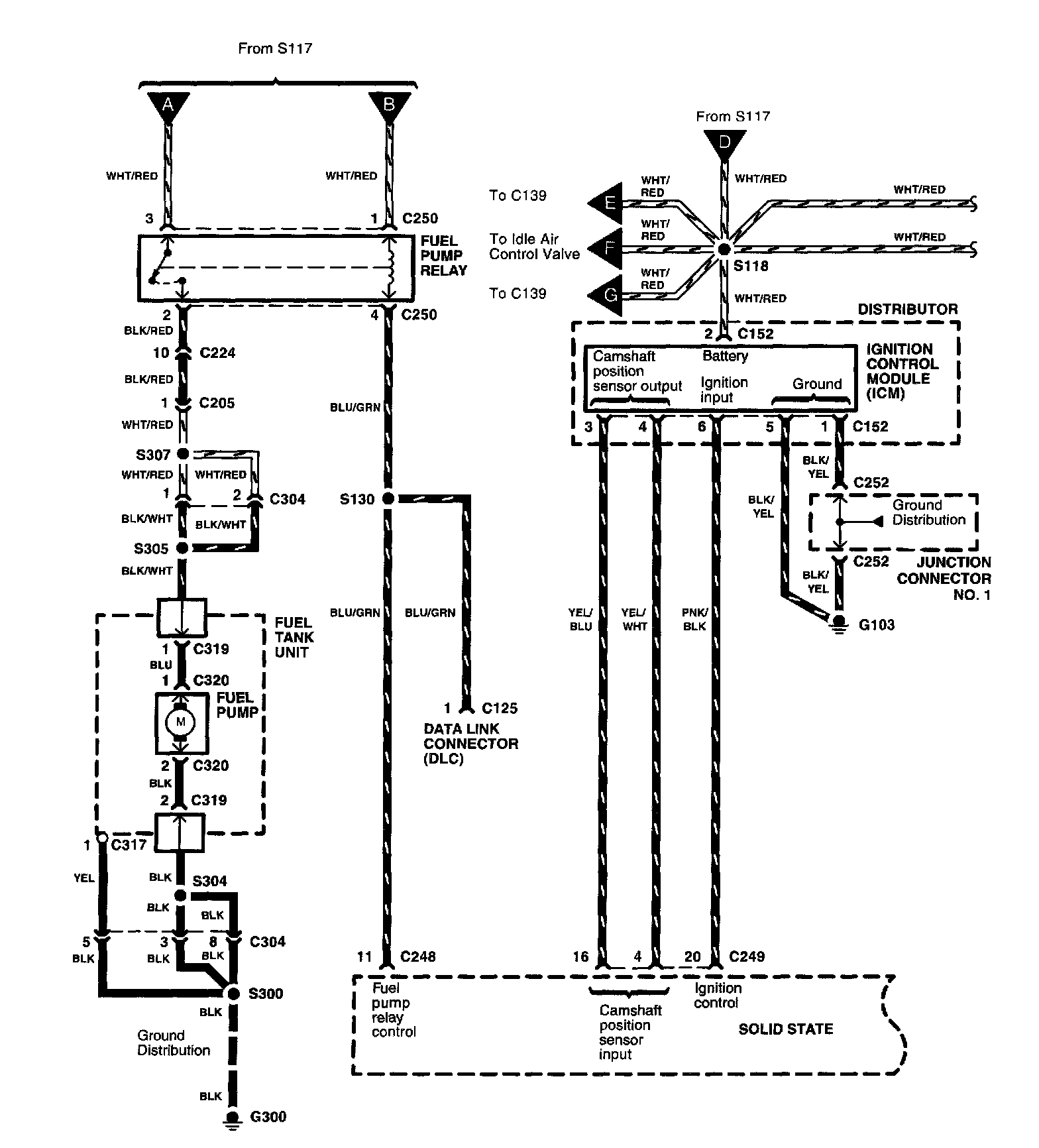

Sequential Multiport Fuel Injection (SFI) (Part 3 Of 7):

Sequential Multiport Fuel Injection (SFI) (Part 3 Of 7)
Fuel Pump Relay
Fuel Tank Unit
- Fuel Pump
Ignition Control Module (ICM)
Joint Connector No. 1

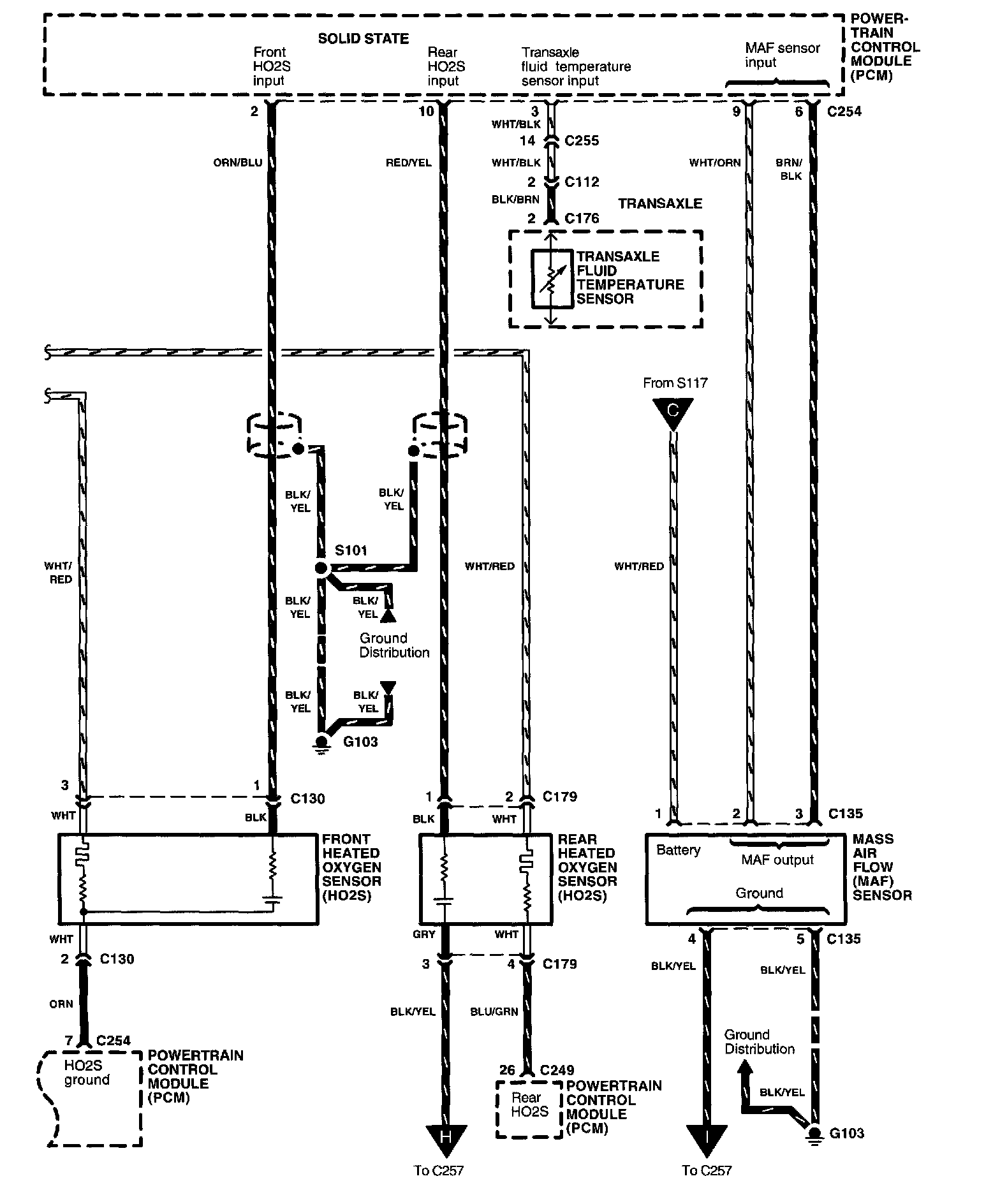

Sequential Multiport Fuel Injection (SFI) (Part 4 Of 7):

Sequential Multiport Fuel Injection (SFI) (Part 4 Of 7)
Front Heated Oxygen Sensor (HO2S)
Mass Air Flow (MAF) Sensor
Powertrain Control Module (PCM)
Rear Heated Oxygen Sensor (HO2S)
Transaxle Fluid Temperature Sensor

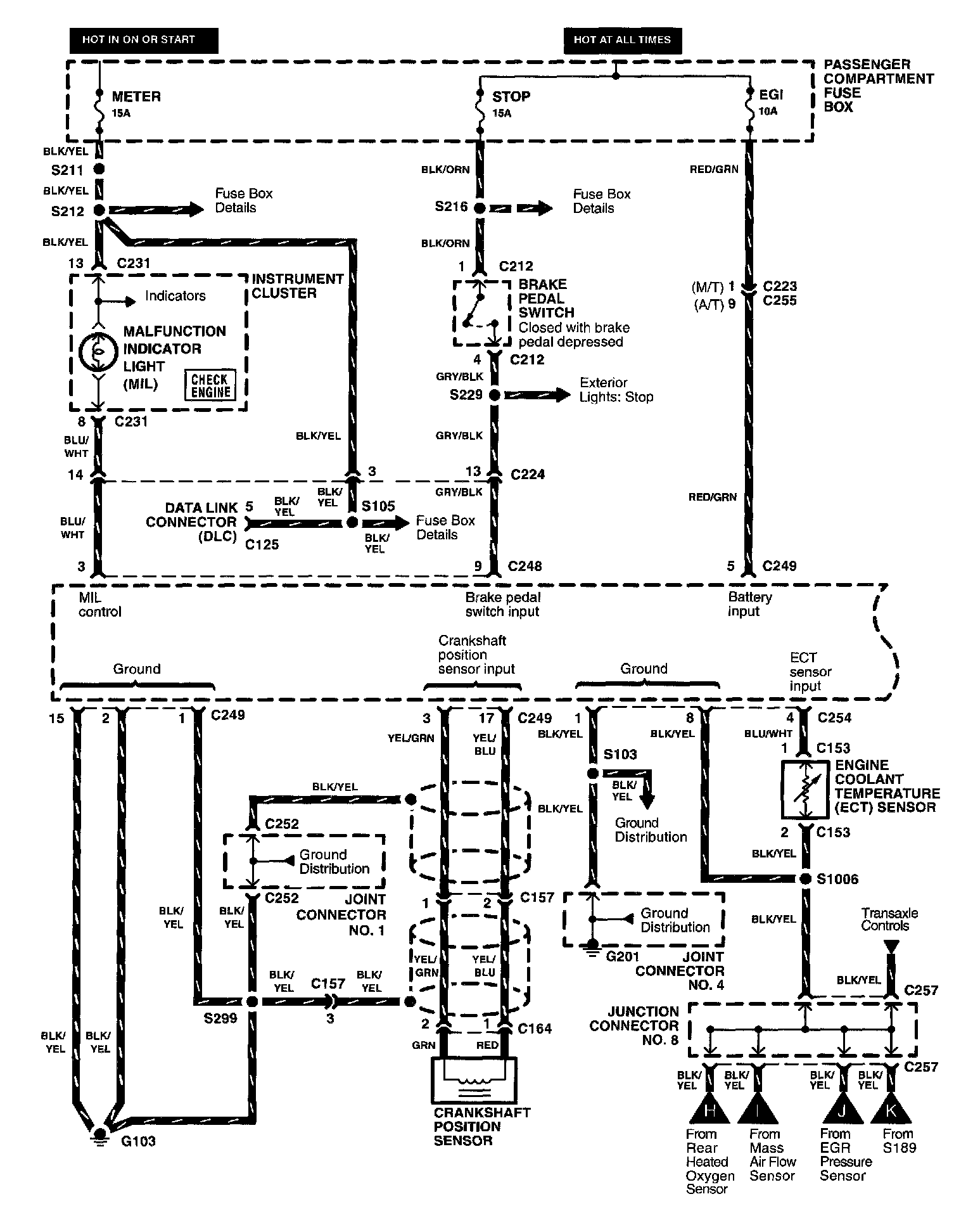

Sequential Multiport Fuel Injection (SFI) (Part 5 Of 7):

Sequential Multiport Fuel Injection (SFI) (Part 5 Of 7)
Brake Pedal Switch
Crankshaft Position Sensor
Engine Coolant Temperature (ECT) Sensor
Instrument Cluster
- Malfunction Indicator Lamp (MIL)
Joint Connector No. 1
Joint Connector No. 4
Joint Connector No. 8
Passenger Compartment Fuse Box

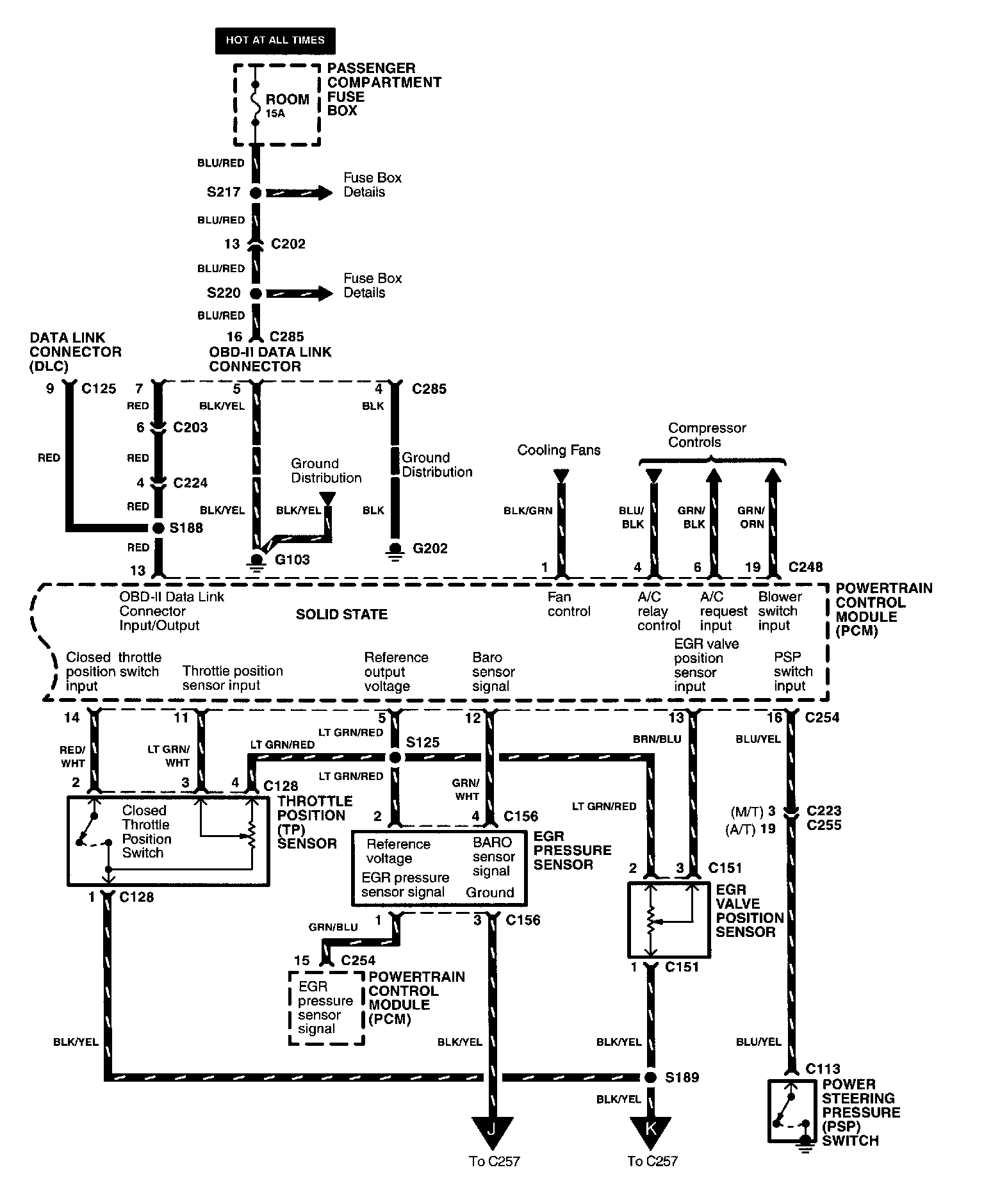

Sequential Multiport Fuel Injection (SFI) (Part 6 Of 7):

Sequential Multiport Fuel Injection (SFI) (Part 6 Of 7)
EGR Pressure Sensor
EGR Valve Position Sensor
Passenger Compartment Fuse Box
Power Steering Pressure (PSP) Switch
Powertrain Control Module (PCM)
Throttle Position (TP) Sensor

Sequential Multiport Fuel Injection (SFI) (Part 7 Of 7):

Sequential Multiport Fuel Injection (SFI) (Part 7 Of 7)
Clutch Pedal Position Switch
Engine Compartment Fuse/Relay Box
Ignition Switch
Joint Connector No. 4
Neutral Position Switch
Powertrain Control Module (PCM)
Starter
- Starter Solenoid
Starter Clutch Pedal Position
Transaxle Range Switch
