Evaporative Check Valve: Testing and Inspection

INSPECTION PROCEDURE

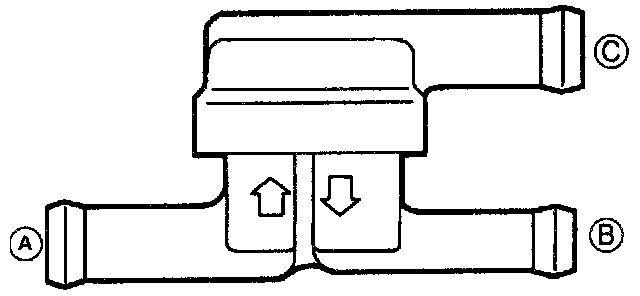

1. Remove the two-way check valve.
2. Blow air into port A and verify that air smoothly flows from port C.
3. Blow air into port C and verify that air smoothly flows from port B.
4. If not as specified, replace the two-way check valve.
