Center Mounted Brake Lamp: Service and Repair

Removal and Installation





1. Disconnect the negative baffery cable.

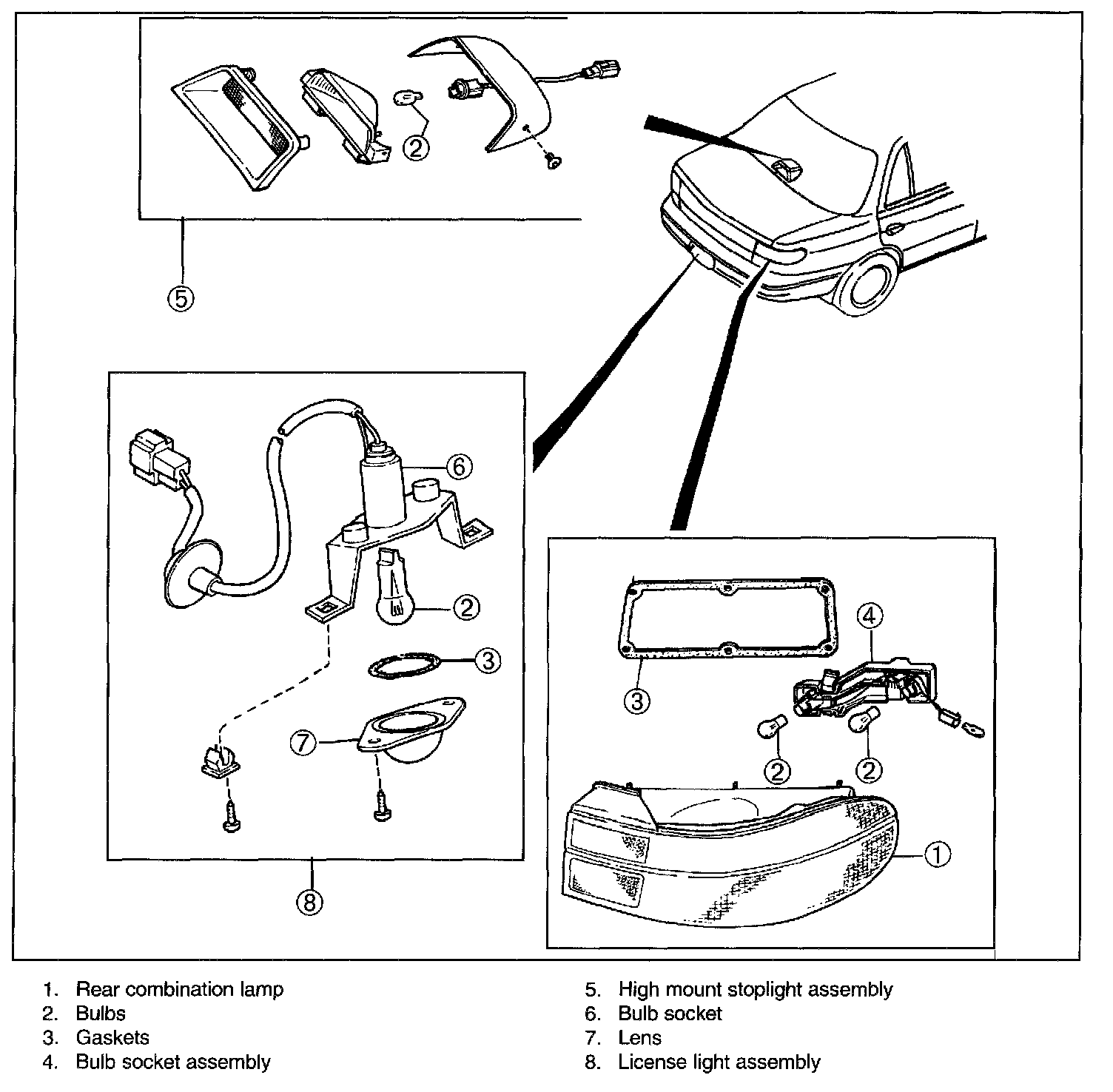

2. Remove components in the numbered order shown in the figure.
3. Install in the reverse order of removal.
