Steering Wheel






Connector Terminal Function

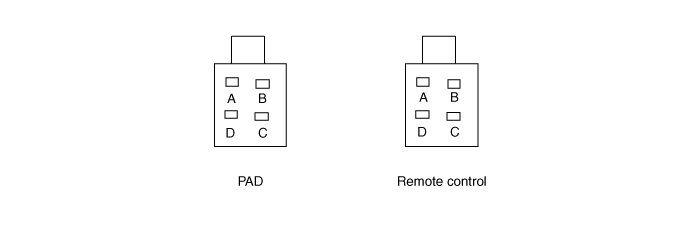

1. Connector terminal

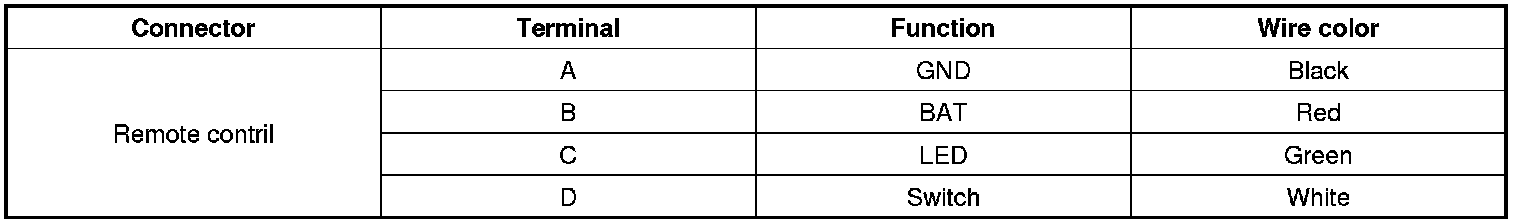

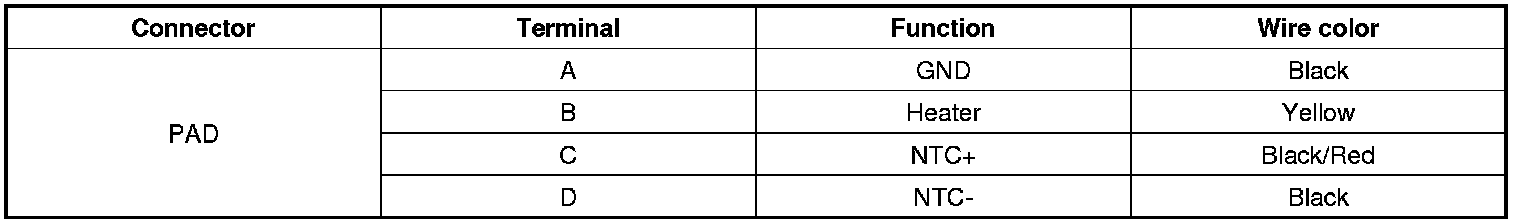

2. Terminal Function

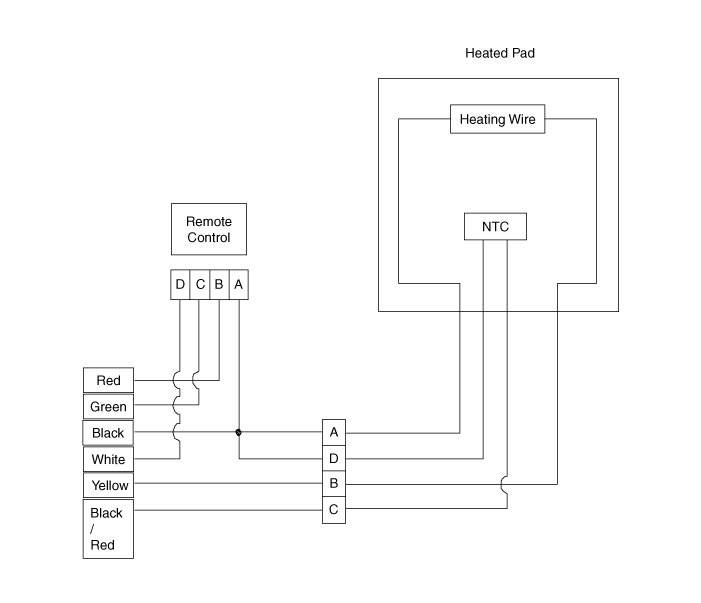

System Circuit Diagram
