Home
>>
Kia Truck
>>
2013
>>
Sorento 2WD V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>

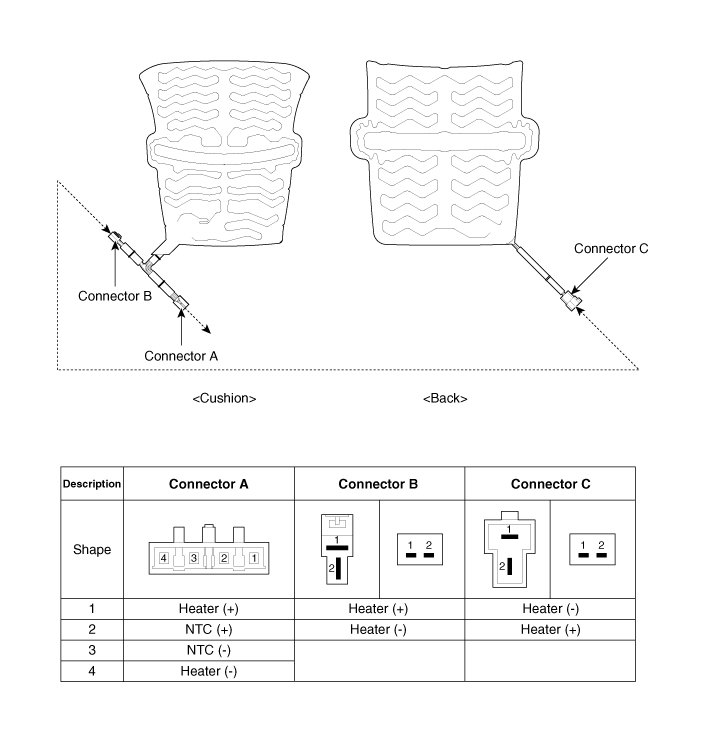

Seat Temperature Element
Seat Temperature Element
Circuit Diagram
