Kia Truck
>>
2008
>>
Sorento 4WD V6-3.3L
>>
Repair and Diagnosis
>>
Restraints and Safety Systems
>>
Air Bag Systems
>>
Testing and Inspection
>>

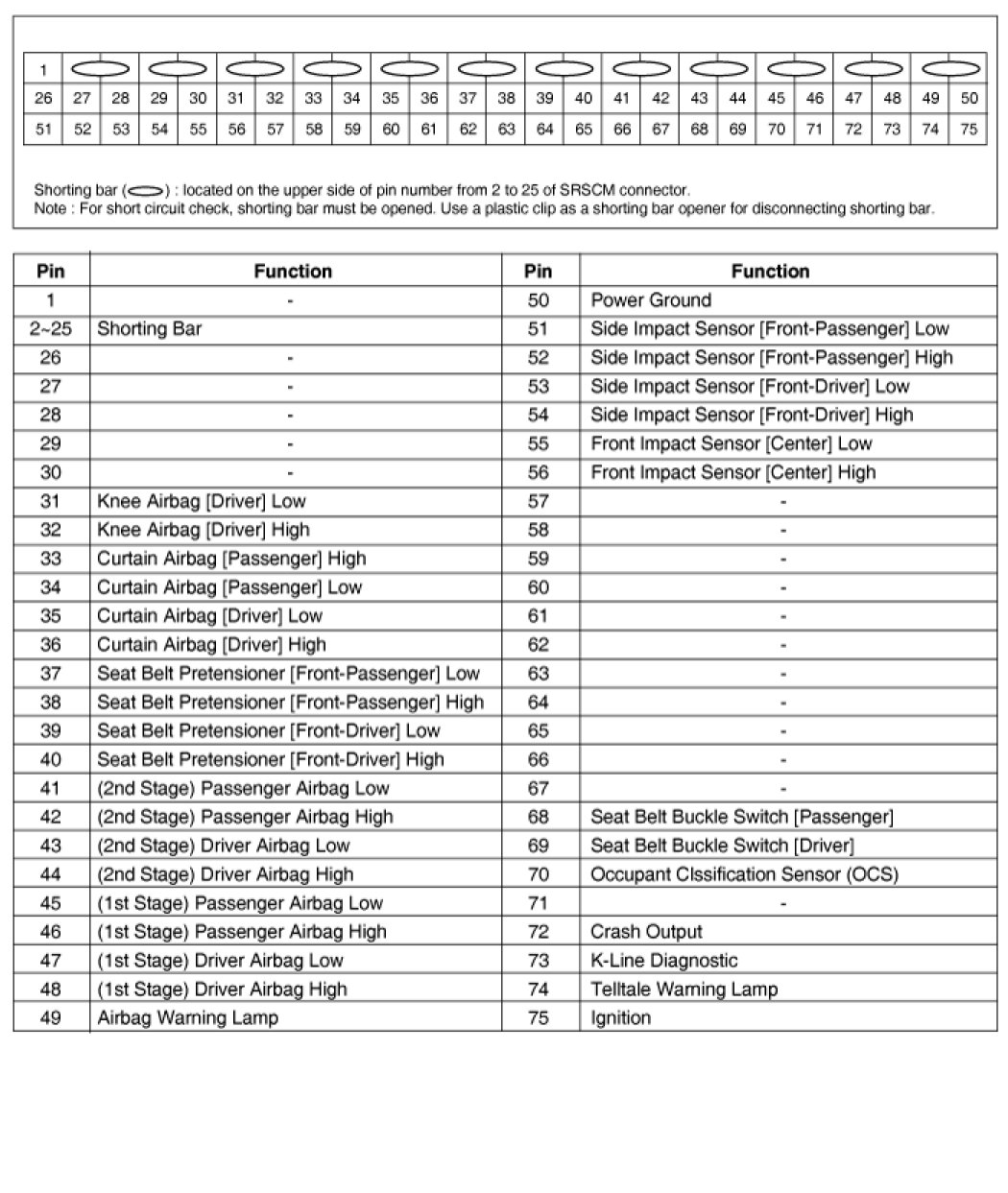

Pinout Values and Diagnostic Parameters
Pinout Values and Diagnostic Parameters
SRSCM CONNECTOR TERMINAL
SRSCM HARNESS CONNECTOR
