Evaporative Emission Control Canister: Service and Repair

Removal

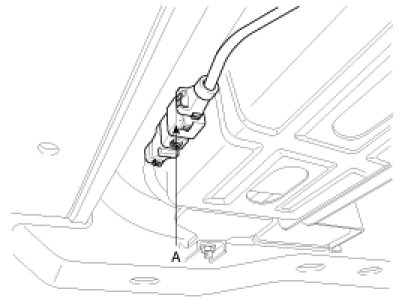

1. Disconnect the canister close valve connector (A).

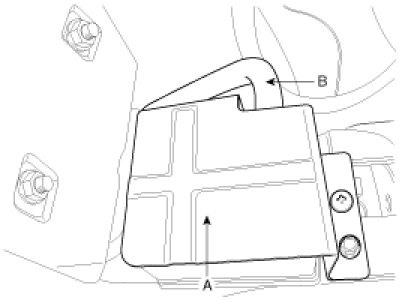

2. Remove the cover (A) and disconnect the vacuum hose (B).

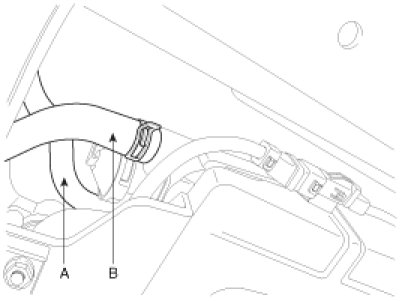

3. Disconnect the vacuum hoses (A,B).

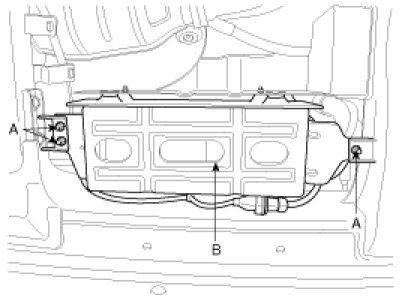

4. Unscrew the mounting nuts (A) and remove the canister assembly (B).






Installation

Installation is in reverse order of removal.
