Kia Truck
>>
2008
>>
Sorento 2WD V6-3.3L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
Engine Control Module
Engine Control Module

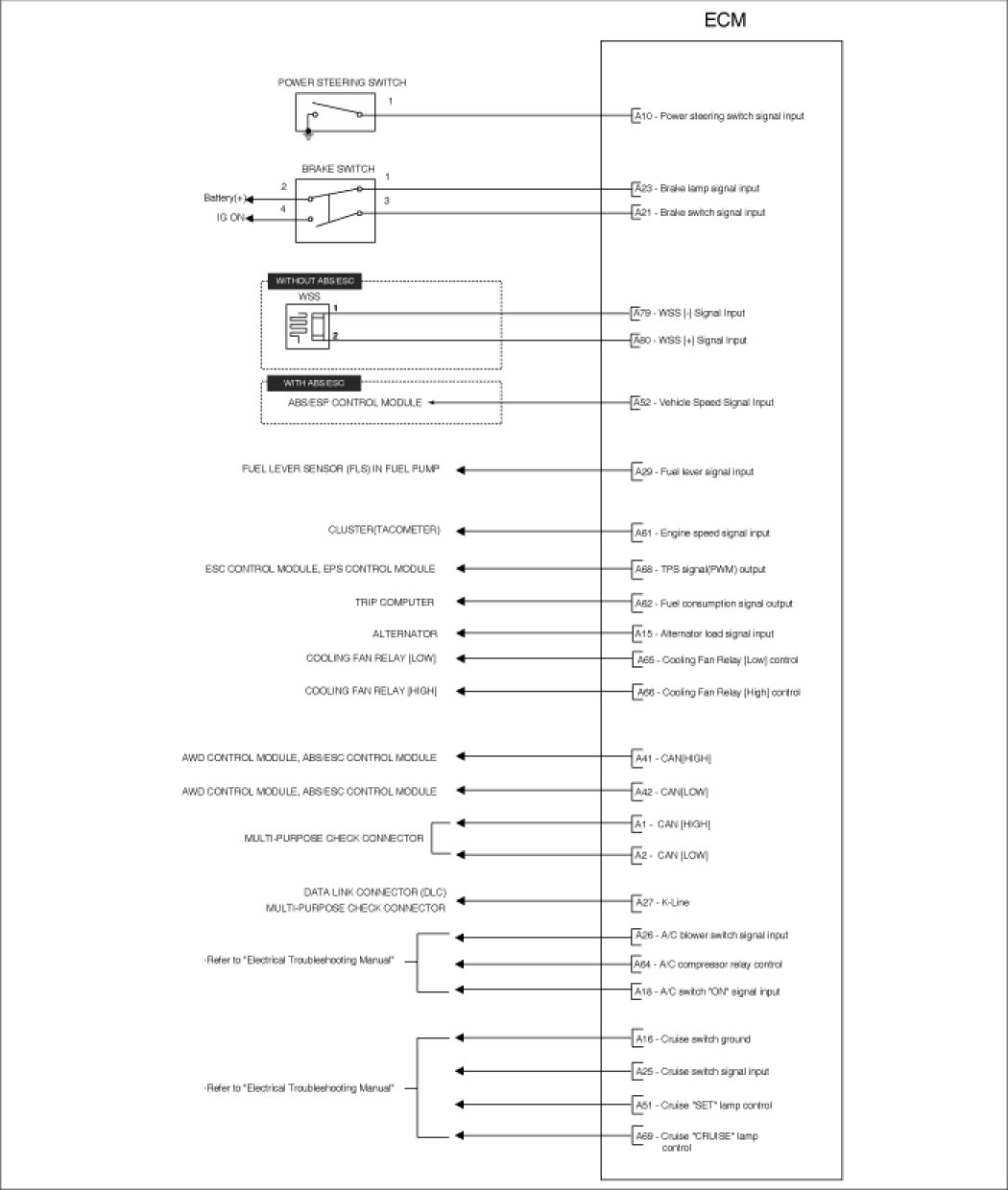

CIRCUIT DIAGRAM
