Kia Truck
>>
2008
>>
Sorento 2WD V6-3.3L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Antilock Brakes / Traction Control Systems
>>
ESP(Electronic Stability Program) System
ESP(Electronic Stability Program) System

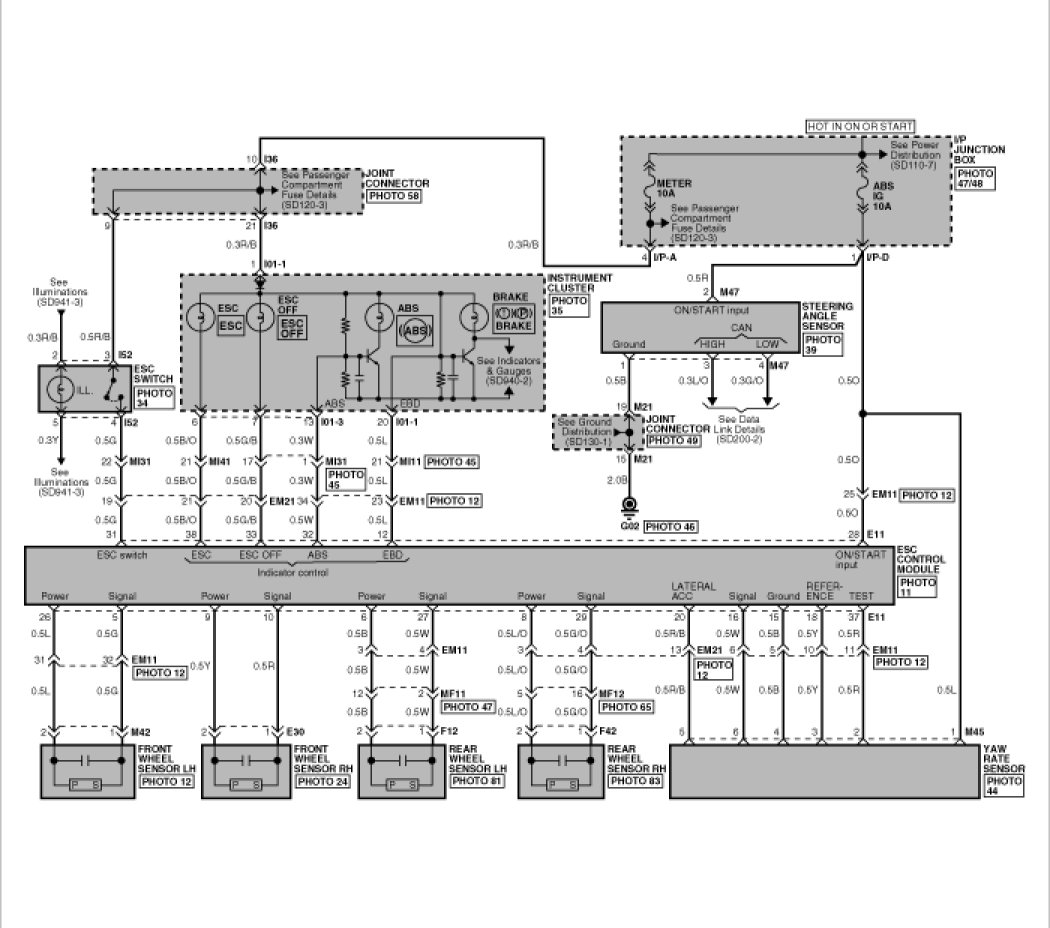

ESC circuit DIAGRAM(1)
ESC circuit DIAGRAM(2)
