Arm Rest: Service and Repair

REPLACEMENT

ARMREST REPLACEMENT
1. Remove the console storage box (A).

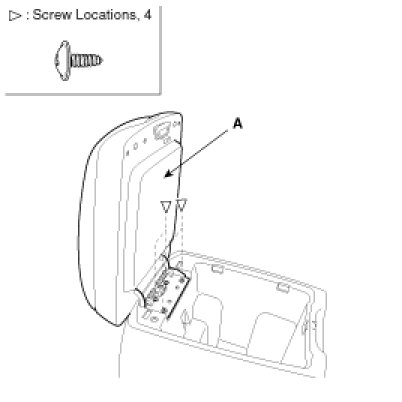

2. After loosening the armrest mounting nuts, remove the armrest (A).




3. Installation is the reverse of removal.
