Removal and Replacement

REMOVAL

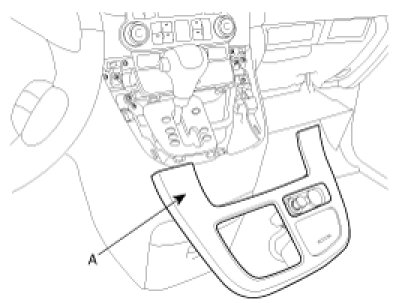

1. Remove the console upper cover(A). (see BD group).

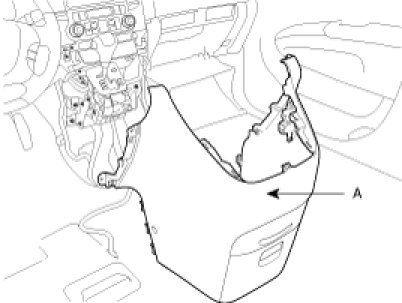

2. Remove the front console cover (A). (see BD group).

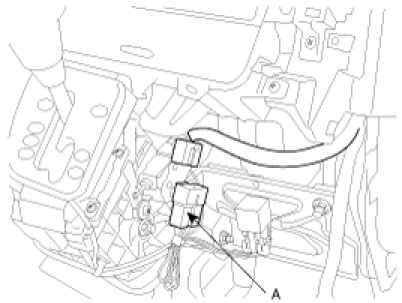

3. Disconnect the connector (A).




4. Remove the shift lever assembly mounting nuts (A).

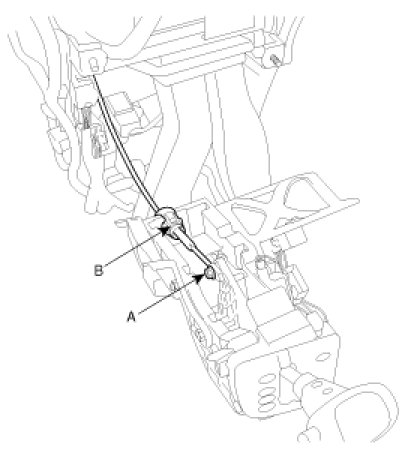

5. Remove the shift cable mounting nut (A) and cap (B).






INSTALLATION

1. Install the shift cable mounting nut (A) and cap (B).

TORQUE: 10 - 14 Nm (100 - 140 kgf.cm, 7.3 - 10.2 lb-ft)




2. Install the shift lever assembly mounting nuts (A).

TORQUE: 19 - 24 Nm (190 - 240 kgf.cm, 13.8 - 17.5 lb-ft)




3. Connect the connector (A).




4. Install the front console cover (A). (see BD group)




5. Install the console upper cover(A). (see BD group).
