Repair Procedures

removal

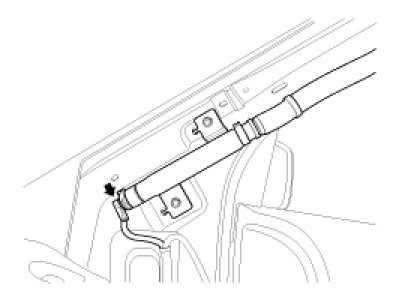

1. Disconnect the battery negative cable and wait for at least 3 minutes before beginning work.
2. Remove the following parts.
A. Interior trim
B. Headlining
3. Disconnect the Curtain Airbag harness connector (front & rear).

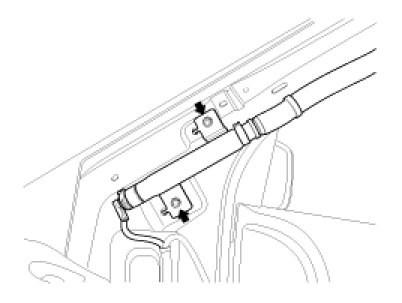

4. After loosening the mounting bolts (13EA), remove the curtain airbag.






INSTALLATION

CAUTION:
- Ensure that the harness is installed and routed properly to prevent damage to the wiring.

1. Disconnect the negative (-) cable from battery and wait for at least three minutes.
2. Remove ignition key from the vehicle.
3. Install a Curtain Airbag (CAB) on the mounting bracket.
4. Tighten the CAB mounting bolts (13EA).

Tightening Torque (CAB Mounting Bolt)
: 1.9 - 2.7 kgf.m(18.6 - 26.5 Nm, 13.7 - 19.5 lb.ft)


CAUTION:
- Never twist the airbag module when installing it. If the module is twisted, airbag module may operate abnormally.

5. Connect the CAB connector (front & rear).
6. Reconnect the battery negative cable.
7. After installing the Curtain Airbag (CAB), confirm proper system operation:
A. Turn the ignition switch ON; the SRS indicator light should be turned on for about six seconds and then go off.
