Kia Truck
>>
2008
>>
Sedona V6-3.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Control Assembly, HVAC
>>
Manual Controller
Manual Controller

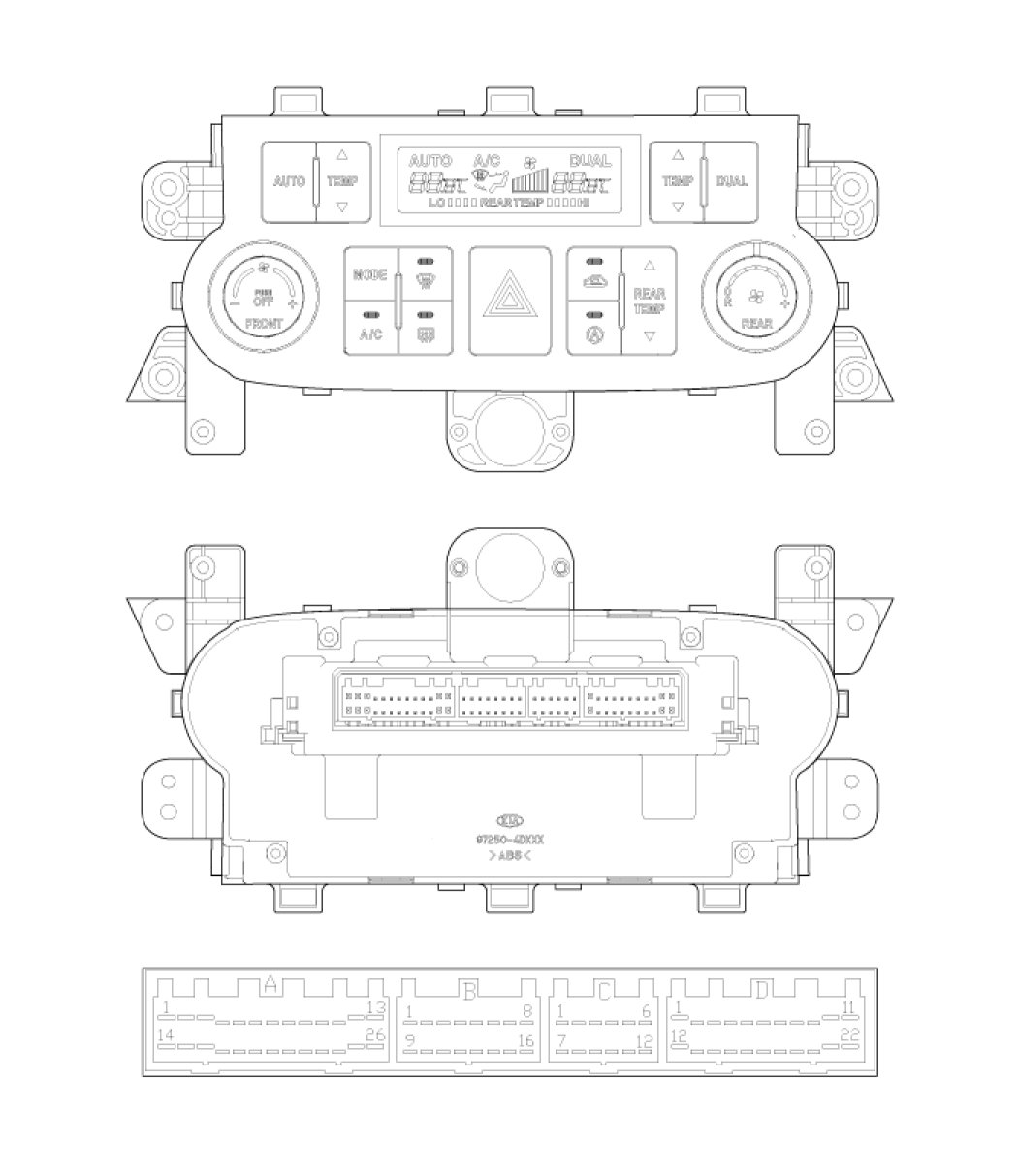

COMPONENT

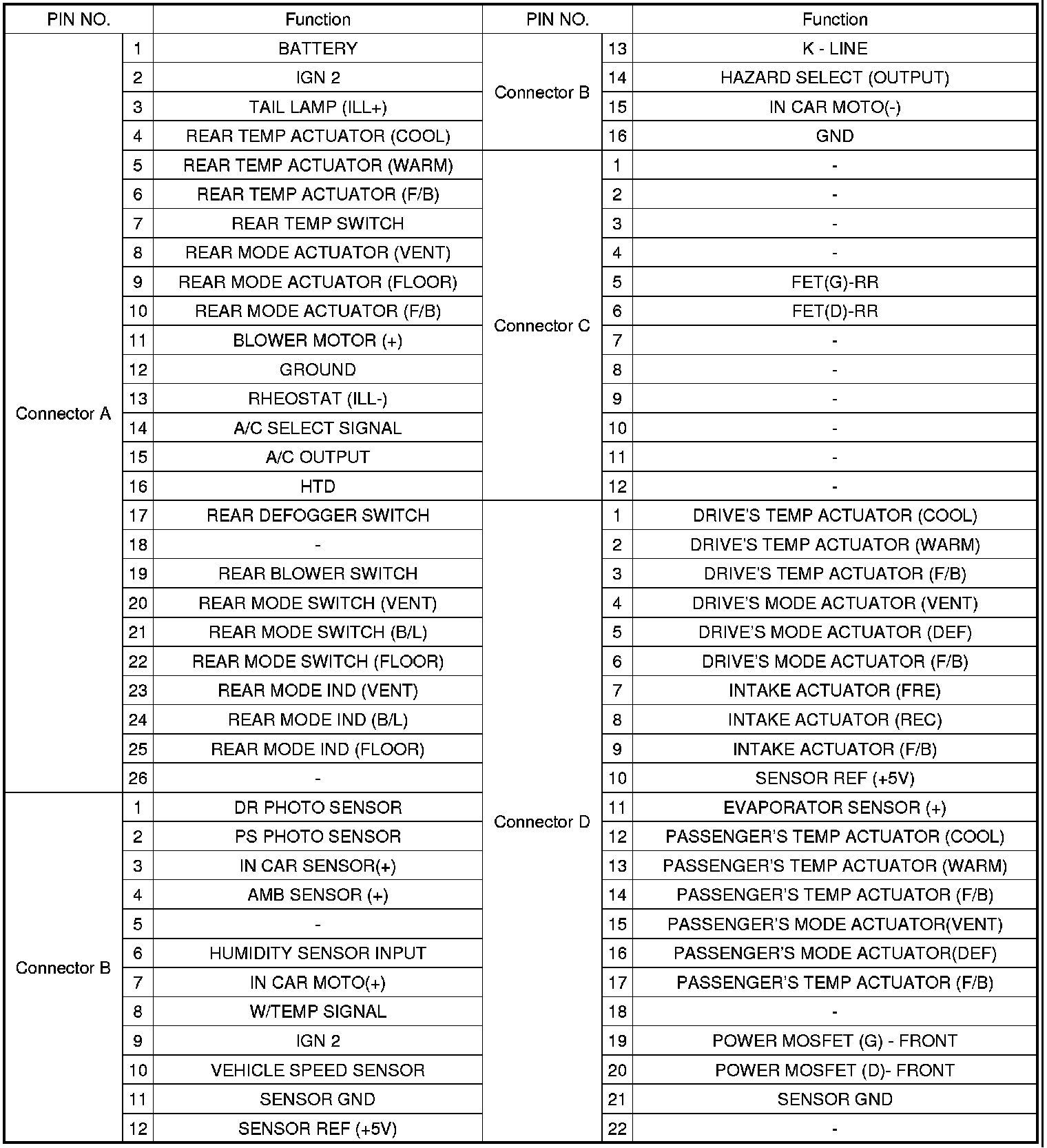

CONNECTOR PIN FUNCTION
