Roof Trim Replacement
REPLACEMENT
NOTE:
- When prying with a flat-tipped screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
- Put on gloves to protect your hands.
1. Remove the following item.
A. Sunvisor.
B. Assist handle.
C. Side tray.

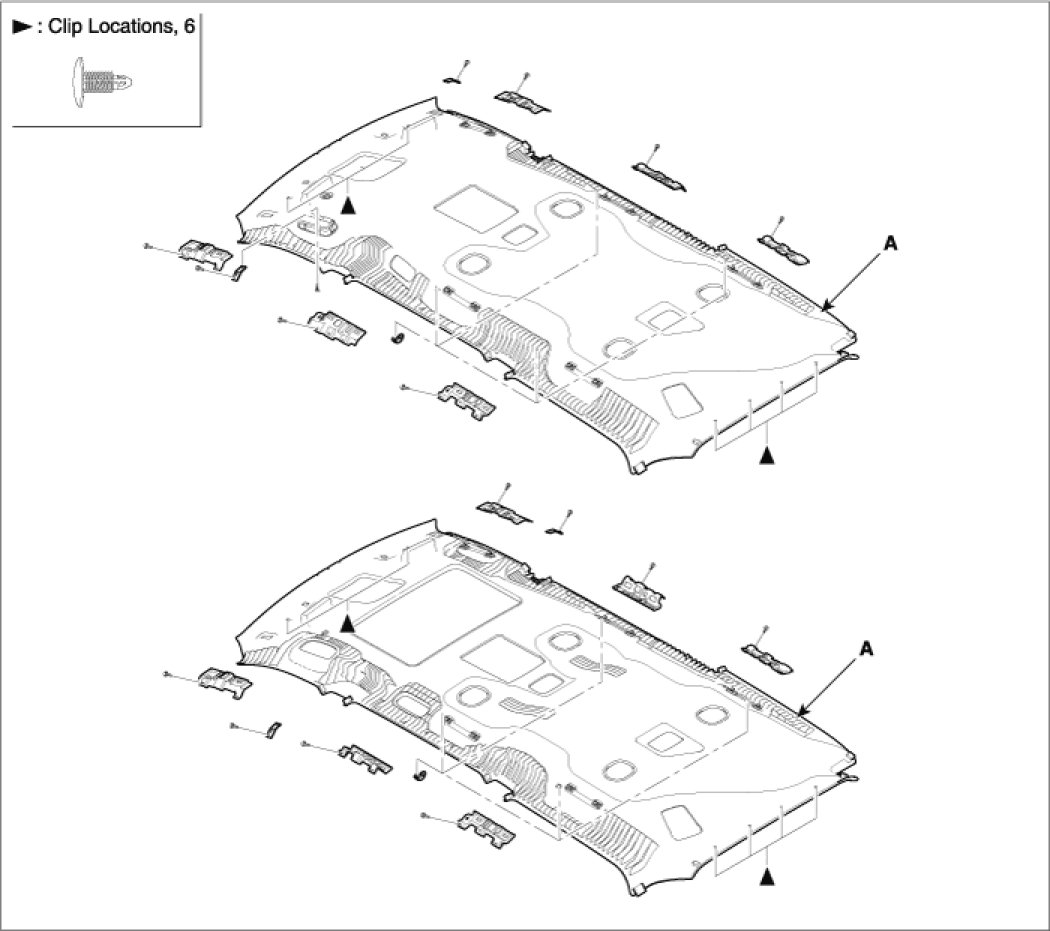

2. Using a clip remover, detach the clips, and remove the roof trim (A).
3. Installation is the reverse the removal.
NOTE:
- Replace any damage clips.
