Wiper Blade Heater Timer: Testing and Inspection

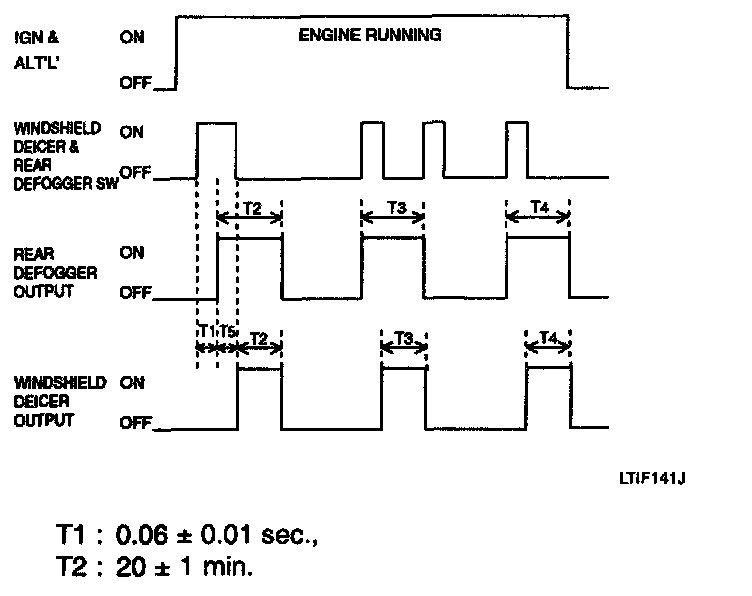

WINDSHIELD GLASS DEICER TIMER INSPECTION

1. Once ALT "L" is ON, if the defogger is switched ON, the defogger will stay ON for 20 minutes duration.




2. If defogger switch is pressed again (See step 1), or if ignition is switched OFF, the defogger will shut OFF.
