Wiper Blade Heater Switch: Testing and Inspection

WINDSHIELD GLASS DEICER SWITCH INSPECTION

1. Remove the negative (-) battery terminal.

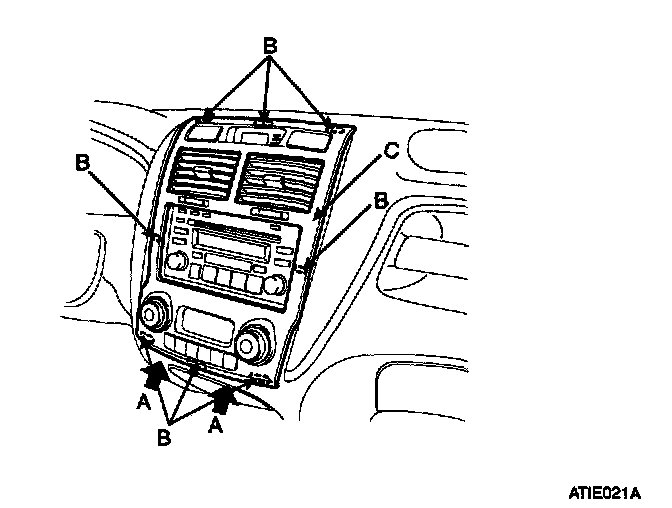

2. Remove the center facia panel (C) by pressing hole of part (A) with driver. Take care of fixing clip (B).
3. Disconnect the connectors.

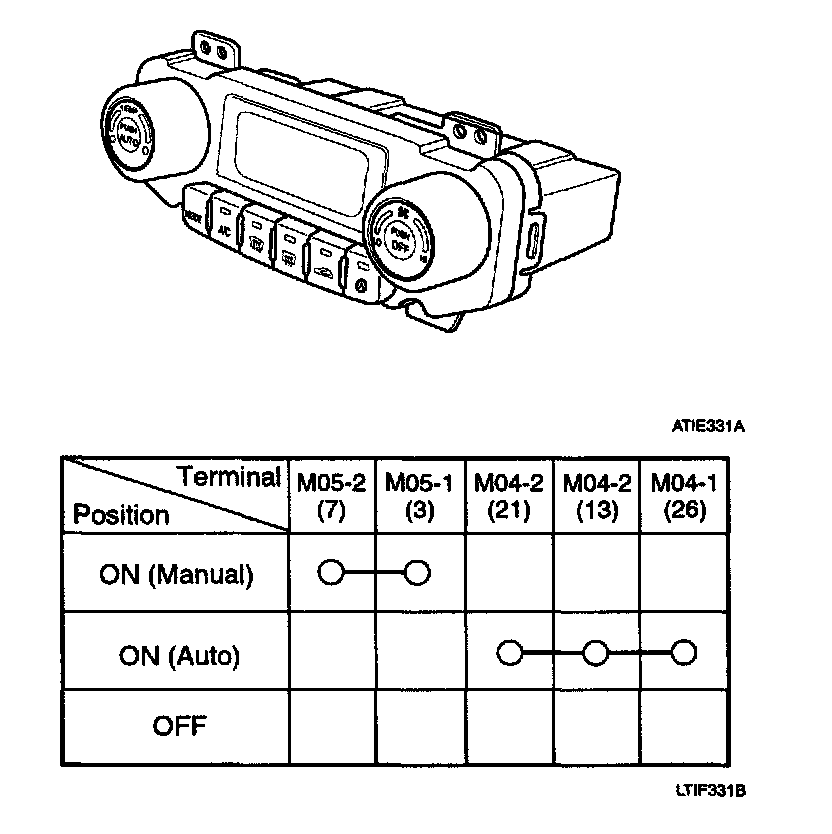

4. Using an ohmmeter, inspection the continuity between the terminals after removing to the switch connector.
