Lighting - Head-Light Bulb Life Concern

Model Sorento[BL]

Group Body Electrical System(92)

Number KT2008120901

Date Tuesday, December 09, 2008

Area N.America

Subject 2003-2006 Sorento Head-Light Bulb Life Concern

- Description

2003-2006 Sorento Head-Light Bulb Life Concern

Some customers may complain of short headlamp bulb life in the 2003-2006 Sorento models. To address the customer concern a new resistive wire harness has been introduced to extend the life of the low beam bulbs. Following these procedures should resolve the customer complaint when the resistive harness is installed with new replacement head lamp bulbs.

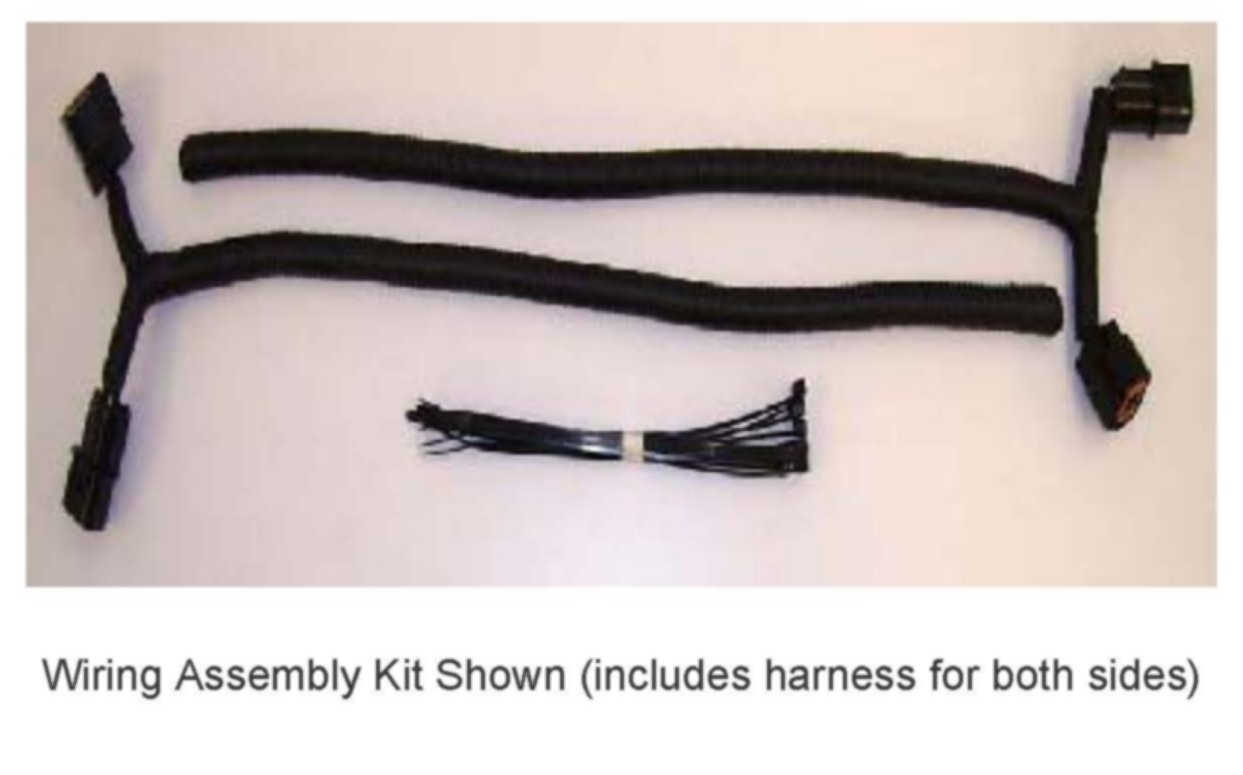

Wiring Assembly Kit Shown (includes harness for both sides)








Parts Information

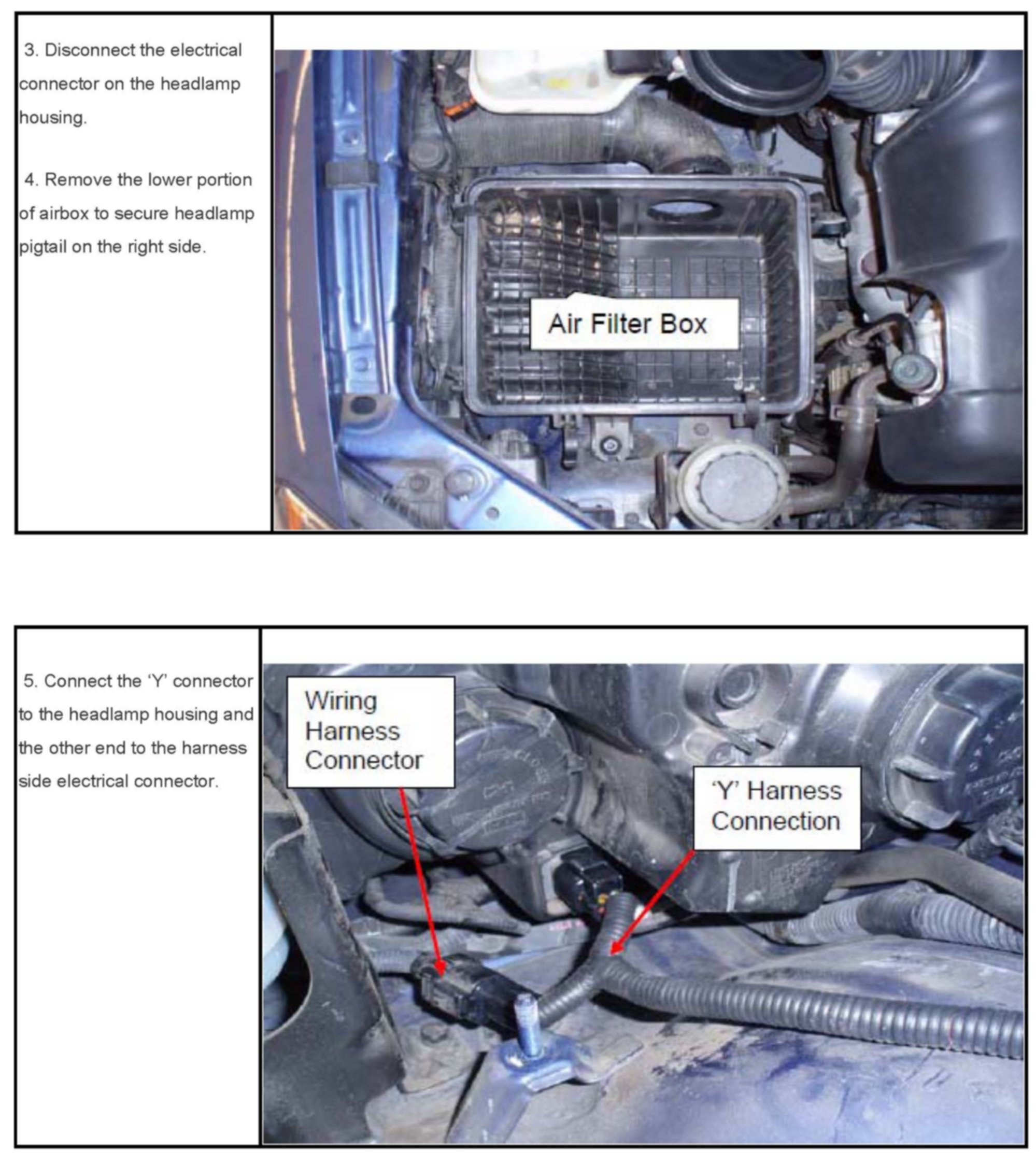

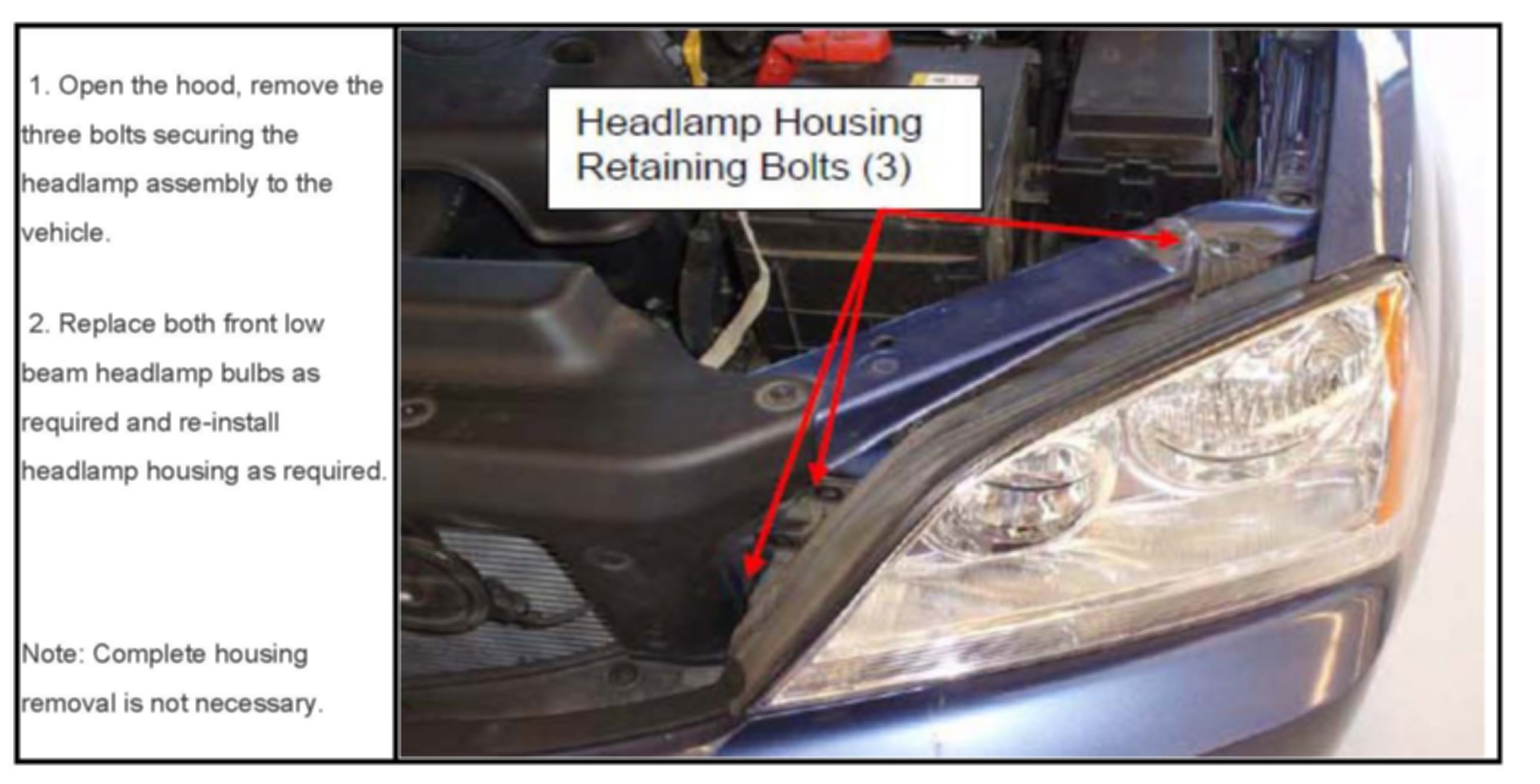

Service Procedure

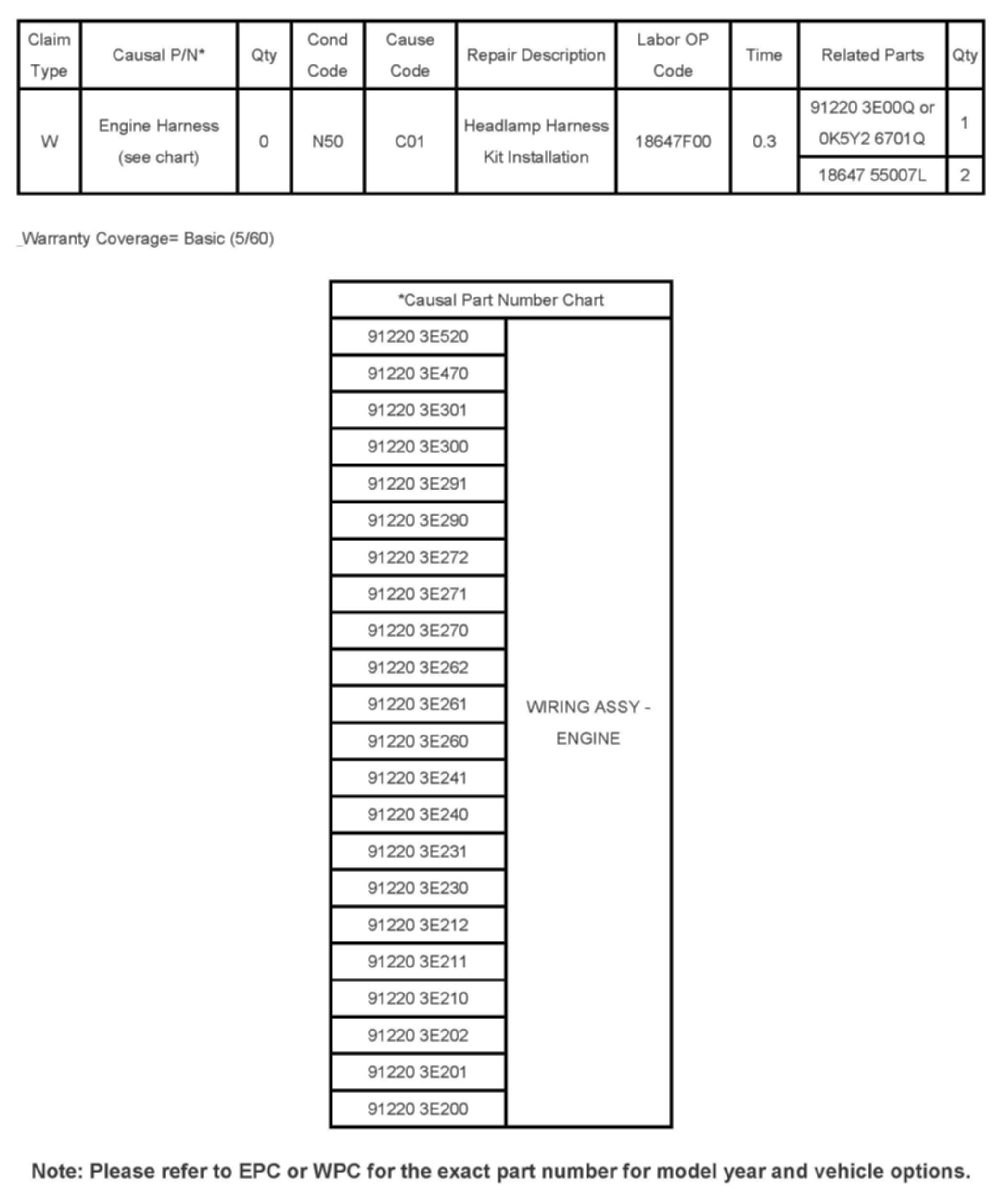

Warranty Information/Causal Part Number Chart
