Sunroof / Moonroof Relay: Testing and Inspection

INSPECTION

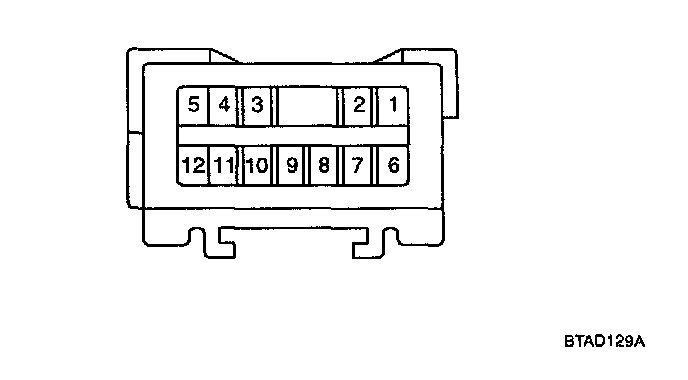

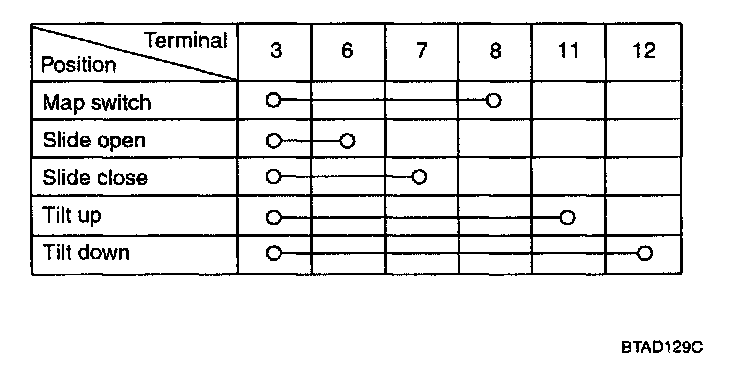

Check the continuity between the terminals while operating the switch.
