Evaporative Emission Control Canister: Testing and Inspection

EVAPORATIVE (EVAP) CANISTER

Inspection

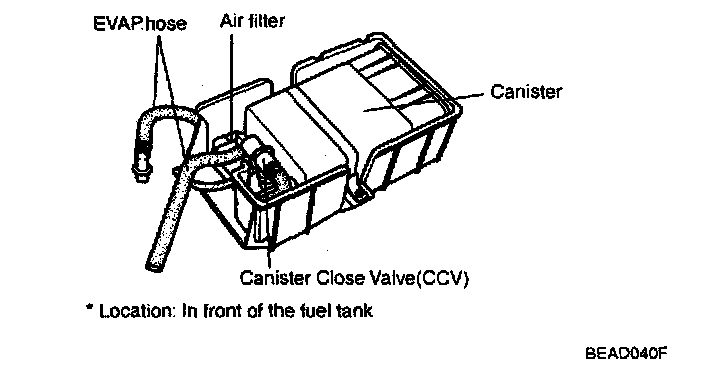

Inspect the Canister Close Valve (CCV) and its air filter as shown in the illustration.
1. Look for loose connections, and sharp bends or damage to the fuel vapor lines.
2. Look for distortion, cracks or fuel leakage.




3. After removing the EVAP Canister, inspect for cracks or damage

NOTE: EVAP hoses must be in the direction to upward the "Dia 5" markings
