Diagram Information and Instructions
>>
Electrical Symbols List

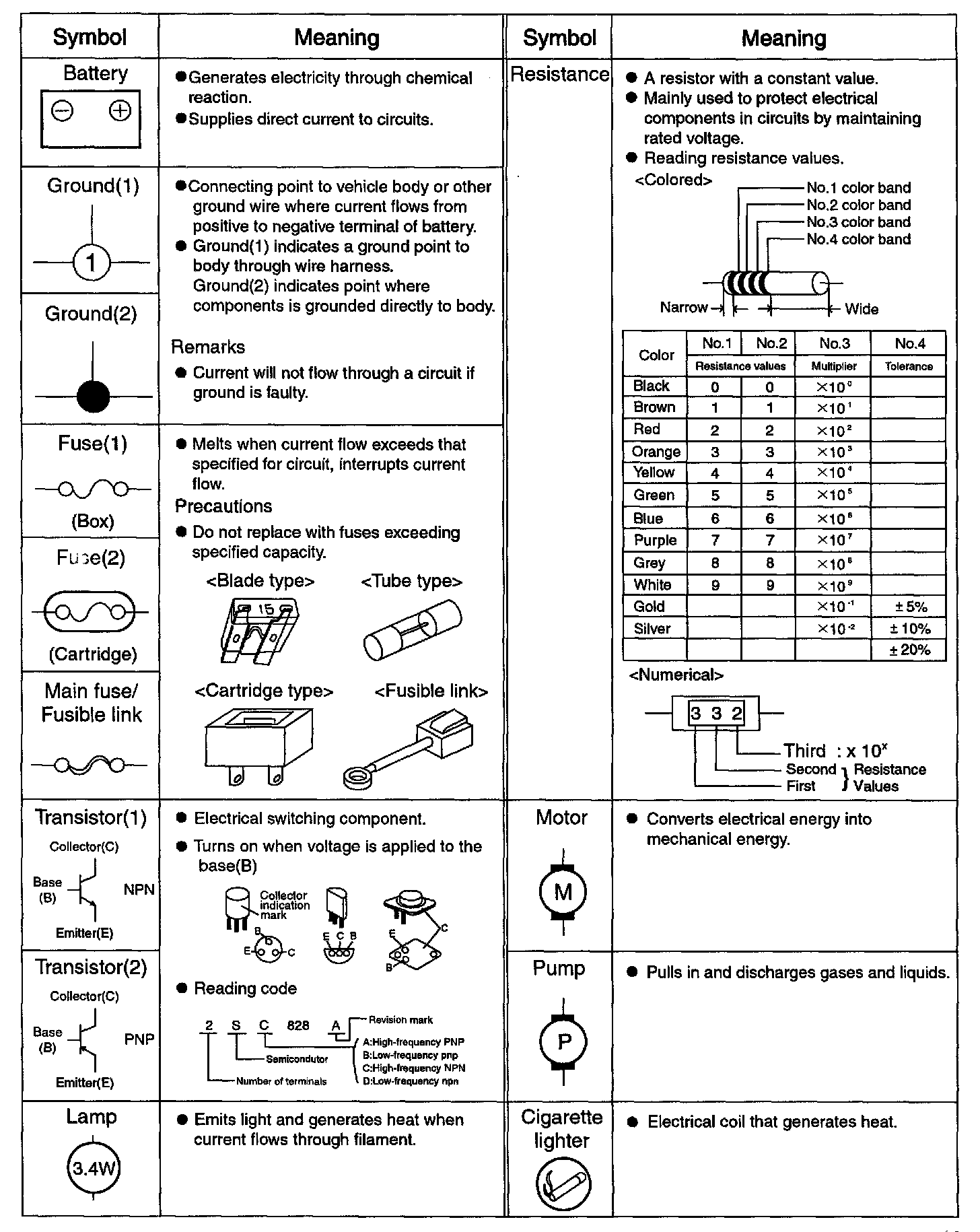

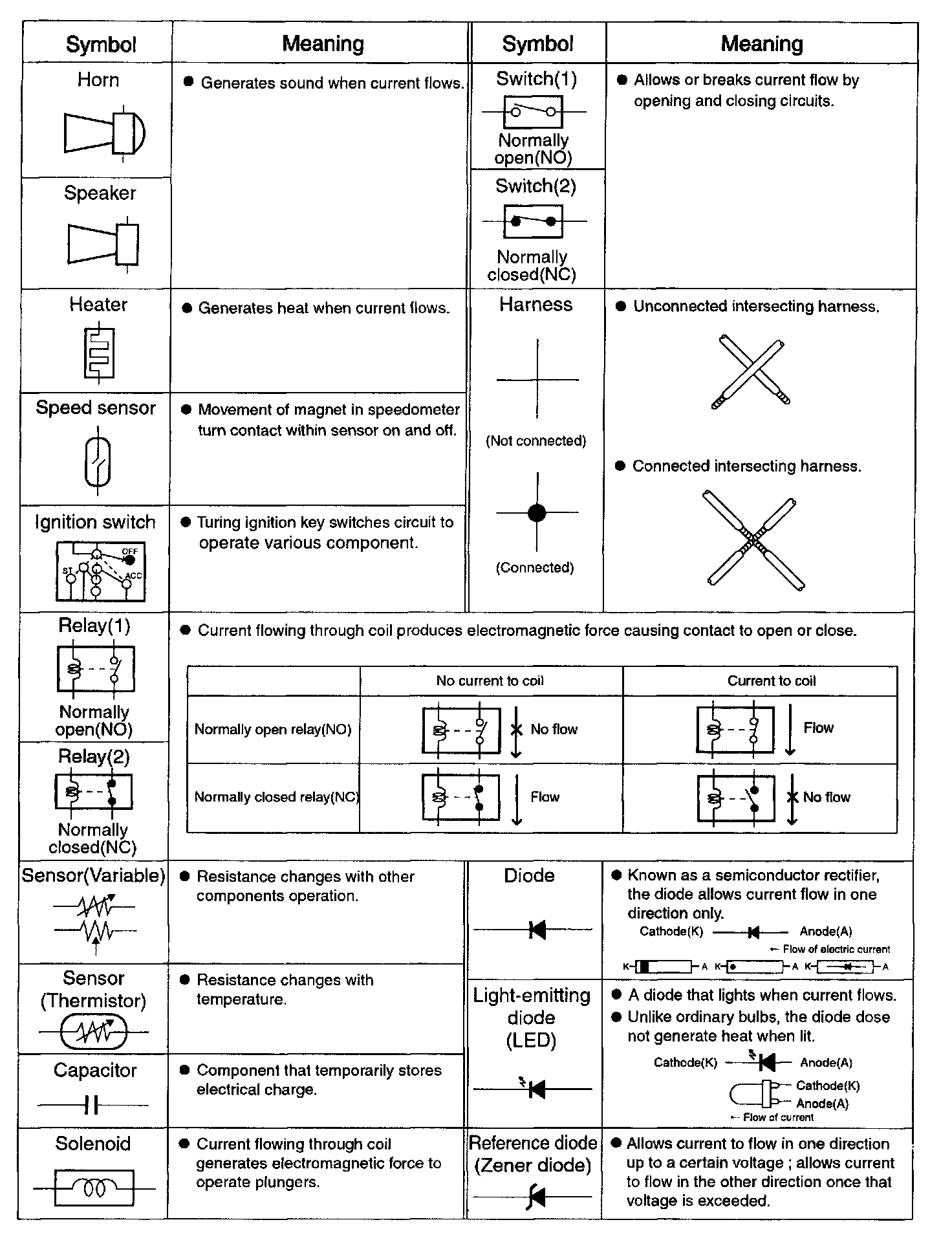

Electrical Symbols List
Part 1:
Part 2:
