Remote Control: Testing and Inspection

INSPECTION

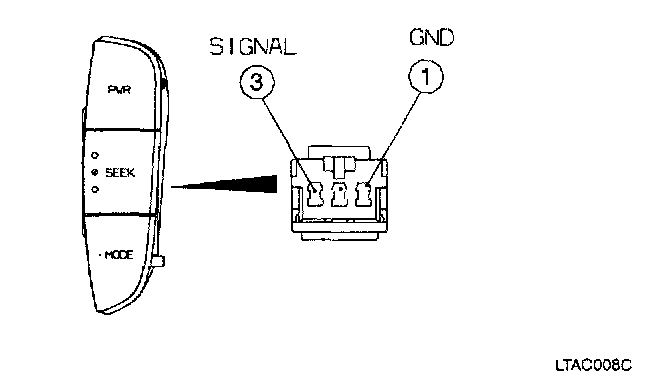

1. Connect an ohmmeter to the 1 and 3 terminal of remote control connector.




2. Check the resistance between 1 and 3 terminal when each switch is operated.
