Positive Crankcase Ventilation Valve: Service and Repair

POSITIVE CRANKCASE VENTILATION (PCV) VALVE

REMOVAL

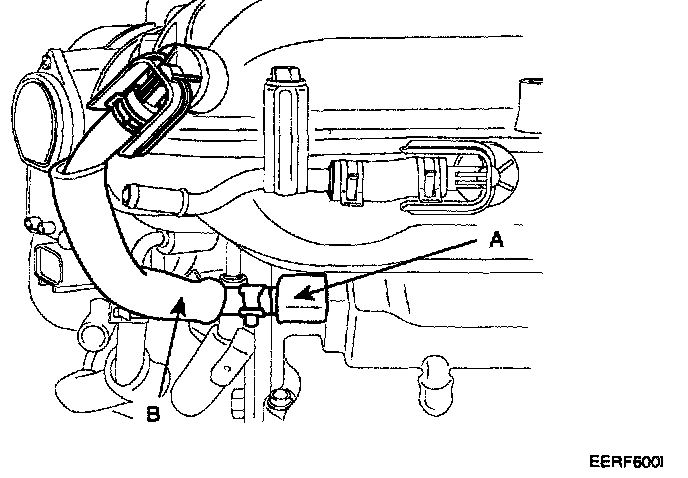

1. Remove the valve pad (A) and disconnect the vacuum hose (B).
2. Remove the PCV Valve.

INSTALLATION
Install the PCV valve and tighten to the specified torque.

PCV Valve installation : 7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lbf.ft)
