Evaporative Emission Control Canister: Service and Repair

CANISTER

REMOVAL

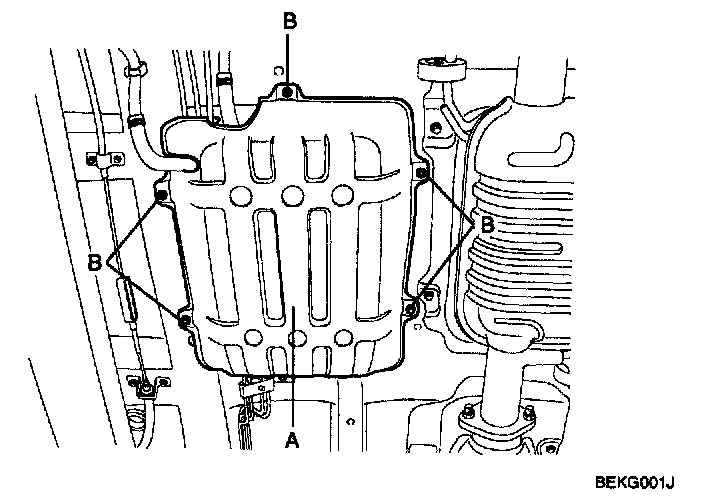

1. Remove the canister cover (A) with unscrewing the mounting bolts (B).

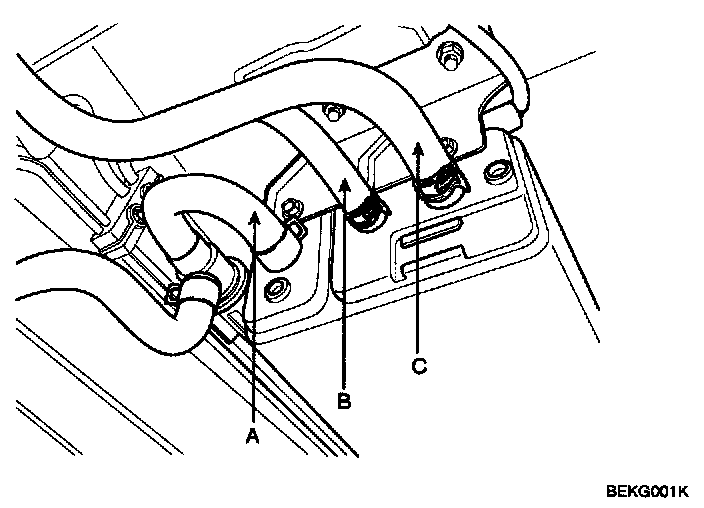

2. Disconnect the vacuum hoses (A, B, C).

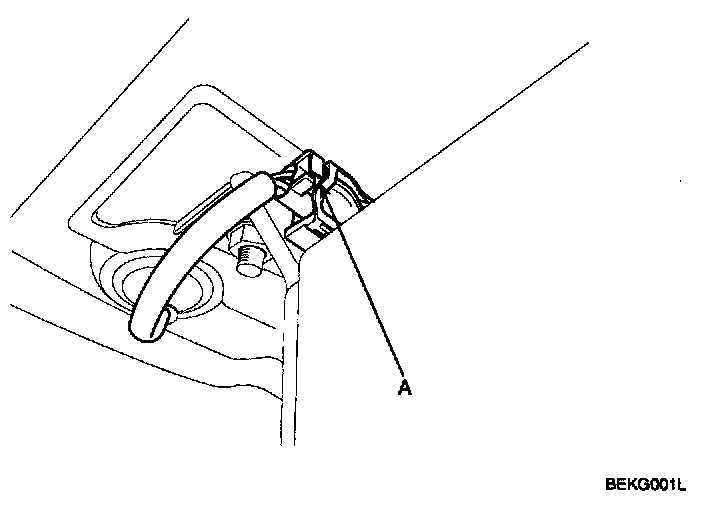

3. Disconnect the canister close valve connector (A).

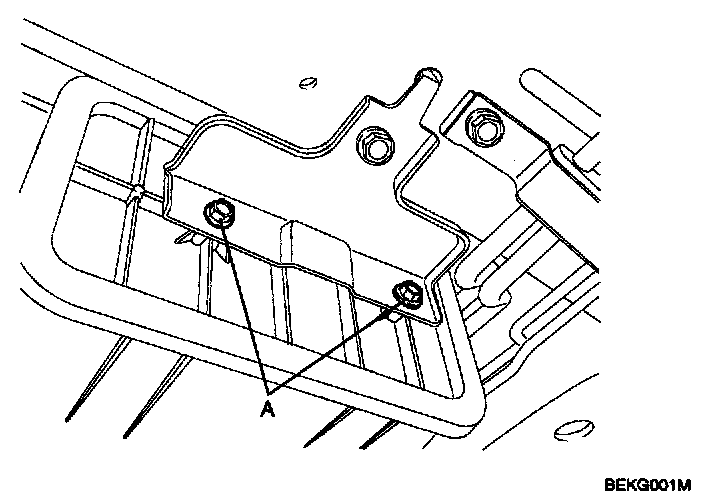

4. Unscrew the mounting bolts (A, B) and remove the canister.

INSTALLATION
Installation is in reverse order of removal.

Torque : 1.7 - 2.6 kgf.m (16.7 - 25.5 N.m, 12.3 - 18.8 lbf.ft)
